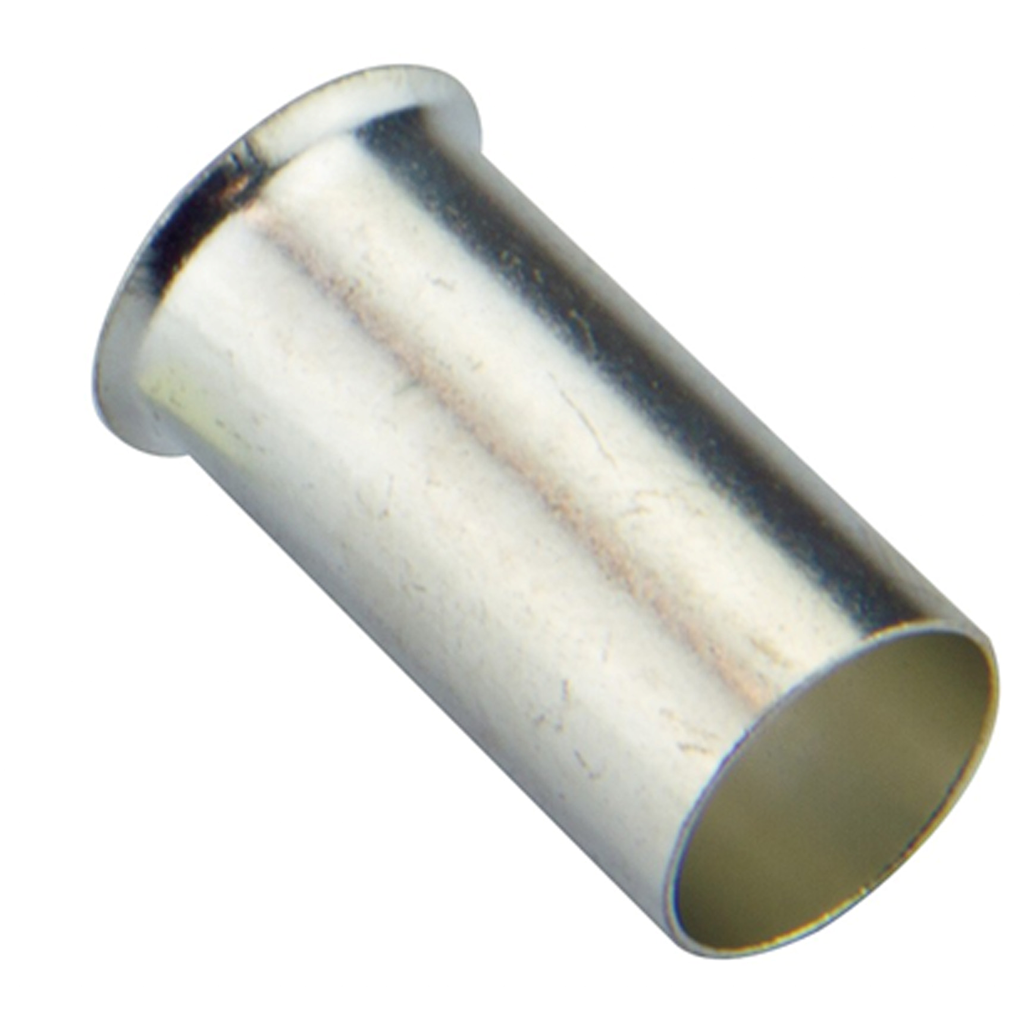

DZ5CE100
Cable ends, Linergy TR cable ends, single conductor, 10mm², for un-insulated cable, medium size, 10 sets of 100
Specifications
| Ambient Air Temperature For Operation | -20-105 °C |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2405008EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI2405008EN |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
| Tube Length | 18 mm |
| Bezel Size | Ø 5.8 mm |
| Number Of Cables | 1 |
| Cable End Type | single conductor |
| Length | 18 mm |
| Awg Gauge | AWG 8 |
| Bezel Material | halogen-free plastic |
| Tube Material | Copper ISO 1337 |
| Additional Information | non-insulated |
| Tube Diameter | 4.5 mm |
| Country of Origin | Germany |
| Length | 18 mm |
| Range Of Product | Linergy |
| Standards | DIN 46228-1 |
| Product Or Component Type | cable end |
| Type Of Packing | individual bag |
| Cable Cross Section | 10-10 mm² |
| Cable End Size | medium |
| Quantity Per Set | set of 100 |
