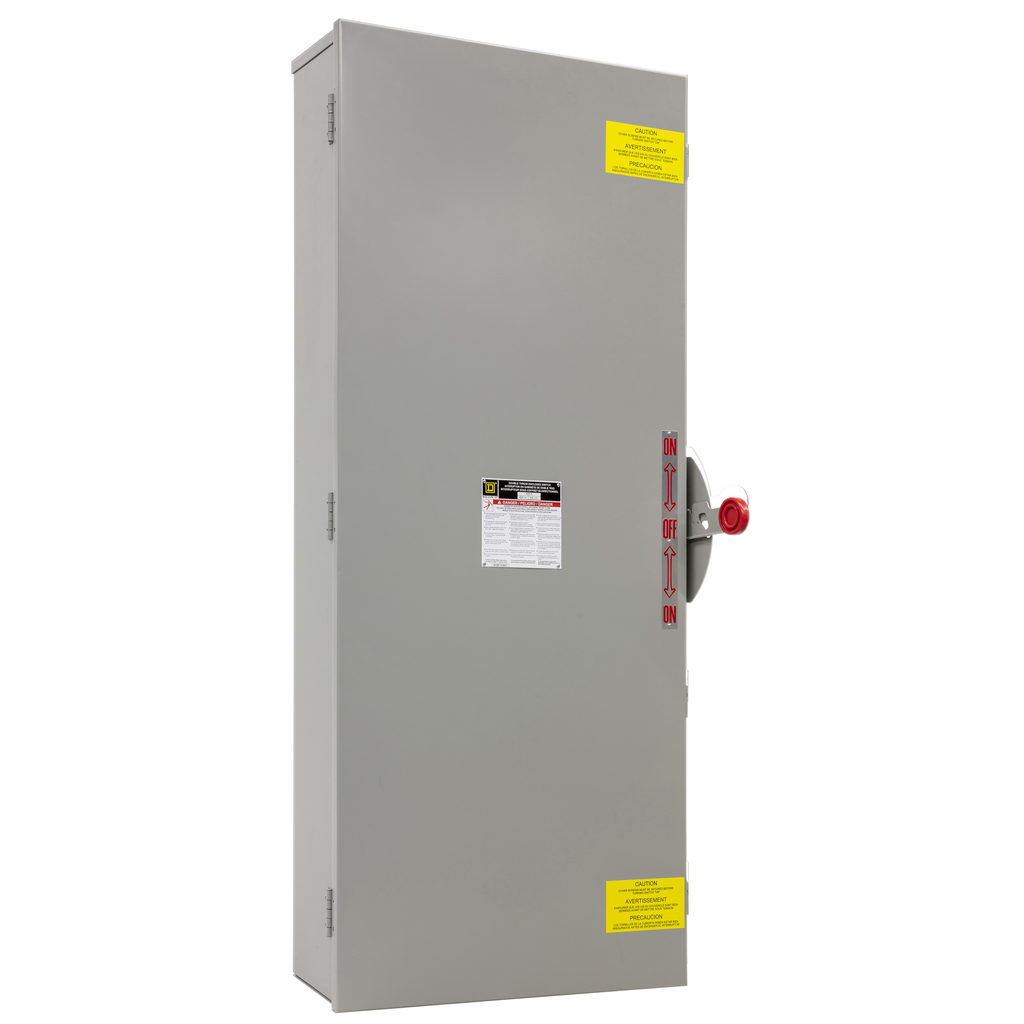

DTU365AWK - Safety switch, double throw, non fusible, 400A, 600VAC, 250VDC, 3 pole, 350HP, NEMA 12, no knock outs

DTU365AWK

Add to Quote Catalogue

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1404026EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	N/A
Eu Rohs Directive	Compliant
Country of Origin	United States
Width	24 in
Height	54.50 in
Disconnector Device Type	non-fusible disconnect switch
Product Or Component Type	Double Throw Safety Switch
Series Name	general duty
Nema Degree Of Protection	NEMA 12
Line Rated Current	400 A
Device Composition	none
Number Of Poles	3
[Ue] Rated Operational Voltage	600 V AC 250 V DC
Height	54.50 in
Device Mounting	surface
Tightening Torque	550-550 lbf.in 53.49-304 mm² (AWG 1/0...750 kcmil) 62.14-62.14 lbf.in 53.49-152 mm² (2 x AWG 1/0...2 x 300 kcmil)
Short-Circuit Current	10 kA H or K 100 kA R, J or T
Fuse Type	H or K R, J or T
Awg Gauge	AWG 1/0...750 kcmil aluminium/copper
Width	24 in
Depth	7.25 in
Product Certifications	UL Listed
