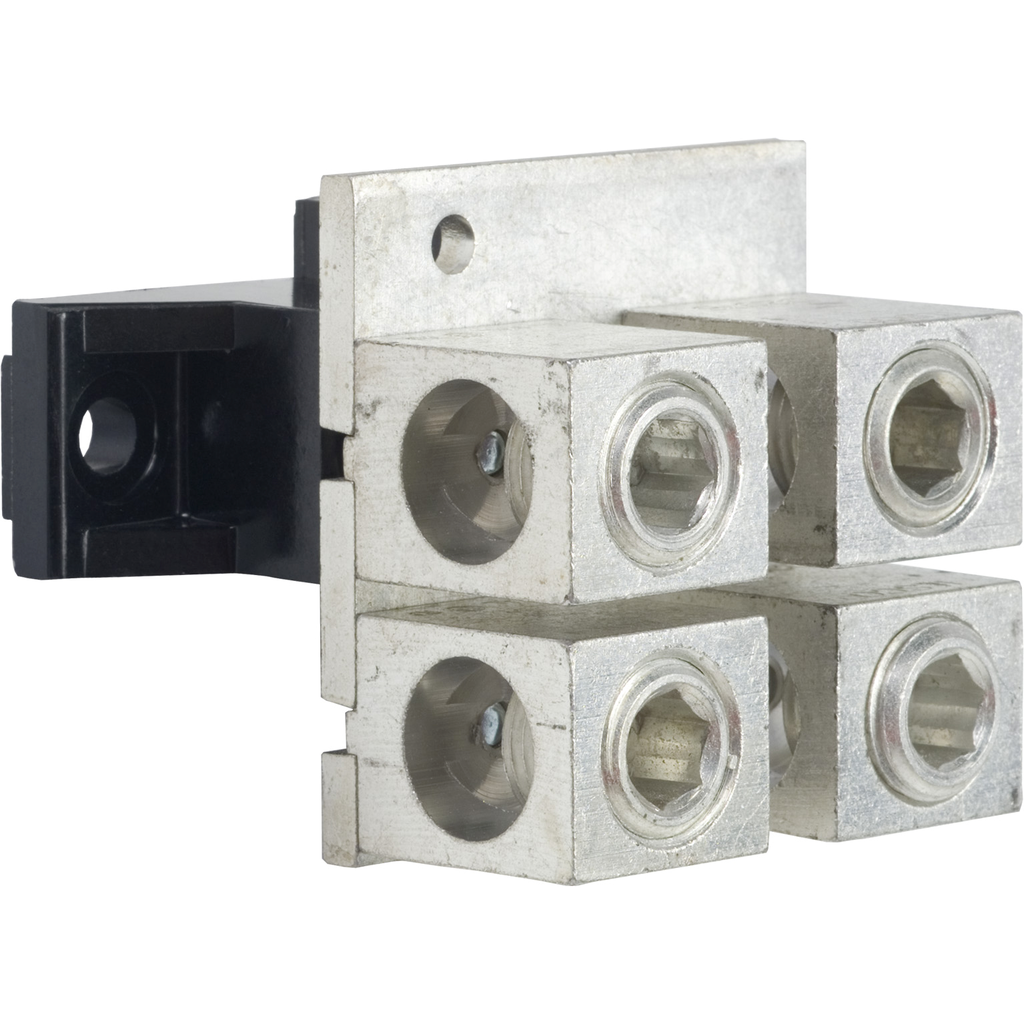

DT200N
Safety switch solid neutral assembly, Square D, copper/aluminium, max 200A E rated, 4 pole
Specifications
| Tightening Torque | 250 lbf.in, AWG 4...250 kcmil, copper or aluminium |
|---|---|
| Line Rated Current | 200 A E |
| Awg Gauge | AWG 4...250 kcmil copper or aluminium |
| Number Of Poles | 4 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1307076EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Range Of Product | Square D |
| Product Or Component Type | safety switch solid neutral assembly |
| Series Name | heavy duty |
| Warranty | 18 months |
