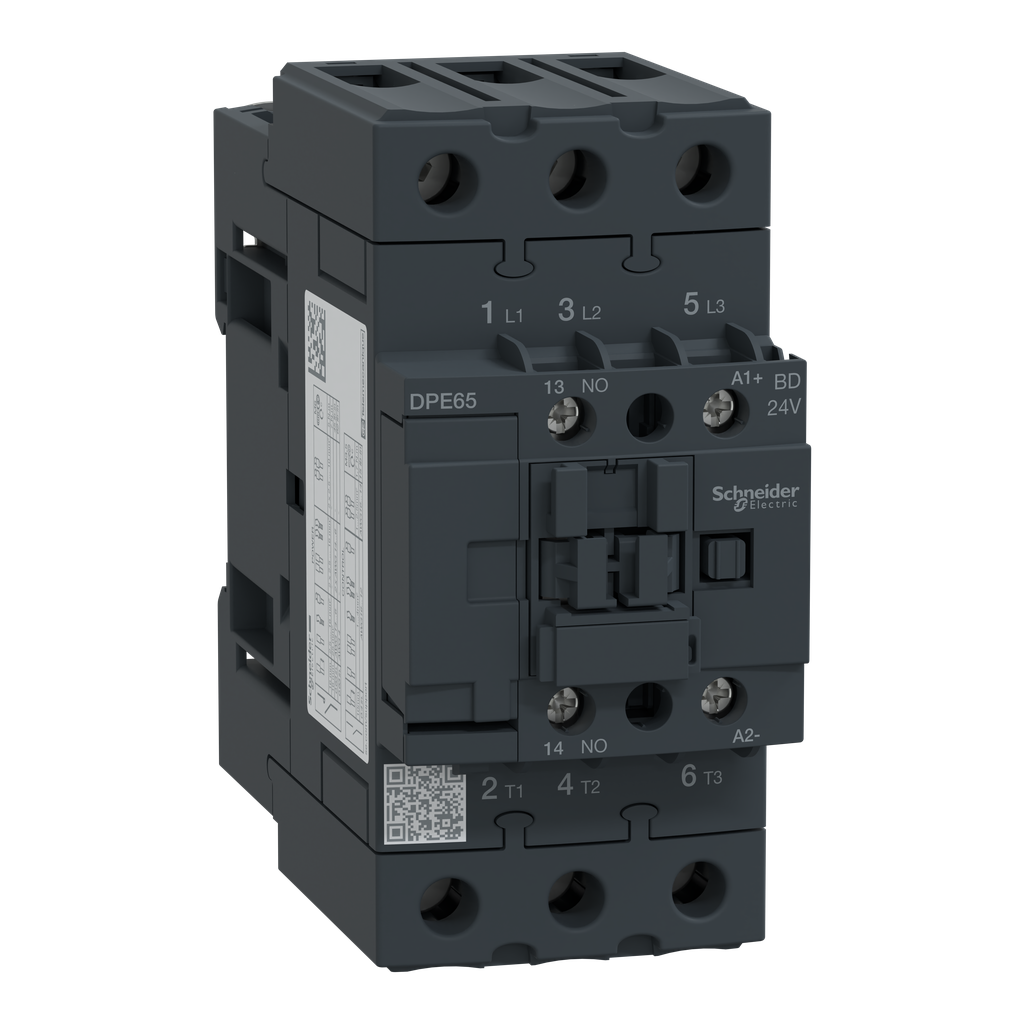

DPE65BD - IEC contactor,Easy TeSys DPE,nonreversing,65A,3P,40HP at 480V AC,24VDC coil

DPE65BD

IEC contactor,Easy TeSys DPE,nonreversing,65A,3P,40HP at 480V AC,24VDC coil

Easy TeSys DPE IEC contactor, 3 poles (3NO), for motor control applications up to 65A/690V AC-3 (40HP@480V). It provides a 24V DC coil, 1NO built-in auxiliary contacts, connection by screw clamp terminals. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Minimum Switching Current	5 mA for signalling circuit
[Ue] Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hz power circuit <= 300 V DC
Height	122 mm
Power Dissipation Per Pole	9.6 W AC-1 6.3 W AC-3
Average Impedance	1.5 mOhm - Ith 80 A 50 Hz for power circuit
Control Circuit Voltage Limits	drop-out: 0.1...0.3 Uc (at <60 °C) operational: 0.75...1.25 Uc (at <60 °C)
[Ith] Conventional Free Air Thermal Current	10 A (at 60 °C) for signalling circuit 60 A (at 60 °C) for power circuit
Mounting Support	rail plate
Control Circuit Type	DC 50/60 Hz
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Hold-In Power Consumption In W	7.4-7.4 W 20 °C
Insulation Resistance	> 10 MOhm for signalling circuit
Rated Breaking Capacity	800 A at 440 V for power circuit conforming to IEC 60947
Irms Rated Making Capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 800 A at 440 V for power circuit conforming to IEC 60947
Associated Fuse Rating	10 A gG for signalling circuit conforming to IEC 60947-5-1 125 A gG at <= 690 V coordination type 1 for power circuit 125 A gG at <= 690 V coordination type 2 for power circuit
Connections - Terminals	power circuit: screw connection 1 2.5-25 mm² - cable stiffness: flexible without cable end power circuit: screw connection 2 2.5-16 mm² - cable stiffness: flexible without cable end power circuit: screw connection 1 2.5-25 mm² - cable stiffness: flexible with cable end power circuit: screw connection 2 2.5-10 mm² - cable stiffness: flexible with cable end power circuit: screw connection 1 2.5-25 mm² - cable stiffness: solid without cable end power circuit: screw connection 2 2.5-16 mm² - cable stiffness: solid without cable end control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end
Coil Technology	without built-in suppressor module
Minimum Switching Voltage	17 V for signalling circuit
Maximum Operating Rate	3600 cyc/h 60 °C
Signalling Circuit Frequency	25...400 Hz
Tightening Torque	power circuit 7 N.m screw connectors 16-25 mm² hexagonal 4 mm power circuit 5 N.m screw connectors 2.5-16 mm² hexagonal 4 mm control circuit 1.7 N.m screw clamp terminals pozidriv No 2 control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm control circuit 1.7 N.m screw clamp terminals Philips No 2
Electrical Durability	0.6 Mcycles 60 A AC-1 <= 440 V 1 Mcycles 40 A AC-3 <= 440 V
Mechanical Durability	5 Mcycles
Inrush Power In W	19-19 W 20 °C)
Auxiliary Contacts Type	mechanically linked 1 NO IEC 60947-5-1
Operating Time	4...19 ms opening 12...26 ms closing
Width	55 mm
Depth	122 mm
[Icw] Rated Short-Time Withstand Current	520 A 40 °C - 10 s for power circuit 900 A 40 °C - 1 s for power circuit 110 A 40 °C - 10 min for power circuit 260 A 40 °C - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
Heat Dissipation	4-5 W 50/60 Hz
Country of Origin	France
Width	55 mm
Height	122 mm
[Uc] Control Circuit Voltage	24 V DC
Auxiliary Contact Composition	1 NO
Contactor Application	motor control resistive load
Product Or Component Type	contactor
Product Name	Easy TeSys DPE
Range	Easy TeSys
Pole Contact Composition	3 NO
Utilisation Category	AC-1 AC-3
[Ie] Rated Operational Current	80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Poles Description	3P
Maximum Horse Power Rating	3 hp at 115 V AC 50/60 Hz for 1 phase motors 7.5 hp at 230/240 V AC 50/60 Hz for 1 phase motors 15 hp at 200/208 V AC 50/60 Hz for 3 phase motors 15 hp at 230/240 V AC 50/60 Hz for 3 phase motors 40 hp at 460/480 V AC 50/60 Hz for 3 phase motors 40 hp at 575/600 V AC 50/60 Hz for 3 phase motors
Motor Power Kw	18.5 kW 220...230 V AC 50/60 Hz 30 kW 380...400 V AC 50/60 Hz 37 kW 500 V AC 50/60 Hz 37 kW 660...690 V AC 50/60 Hz
Device Short Name	DPE
Mercury Free	Yes
Environmental Disclosure	ENVPEP1503009EN
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1503009EN
Eu Rohs Directive	Compliant with Exemptions
Product Certifications	cULus
Ambient Air Temperature For Operation	-40-60 °C
Standards	CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1
Climatic Withstand	IACS E10 IEC 60947-1 Annex Q category D
Pollution Degree	3
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Ambient Air Temperature For Storage	-60-80 °C
Ip Degree Of Protection	IP20 front face IEC 60529
Mechanical Robustness	vibrations contactor open 2 Gn, 5...300 Hz) vibrations contactor closed 4 Gn, 5...300 Hz) shocks contactor open 10 Gn for 11 ms) shocks contactor closed 15 Gn for 11 ms)
Operating Altitude	0...6561.68 ft (0...2000 m)
Fire Resistance	850 °C IEC 60695-2-1
Overvoltage Category	III
[Ui] Rated Insulation Voltage	power circuit 690 V IEC 60947-4-1 power circuit 600 V cUL signalling circuit 690 V IEC 60947-1 signalling circuit 600 V cUL
