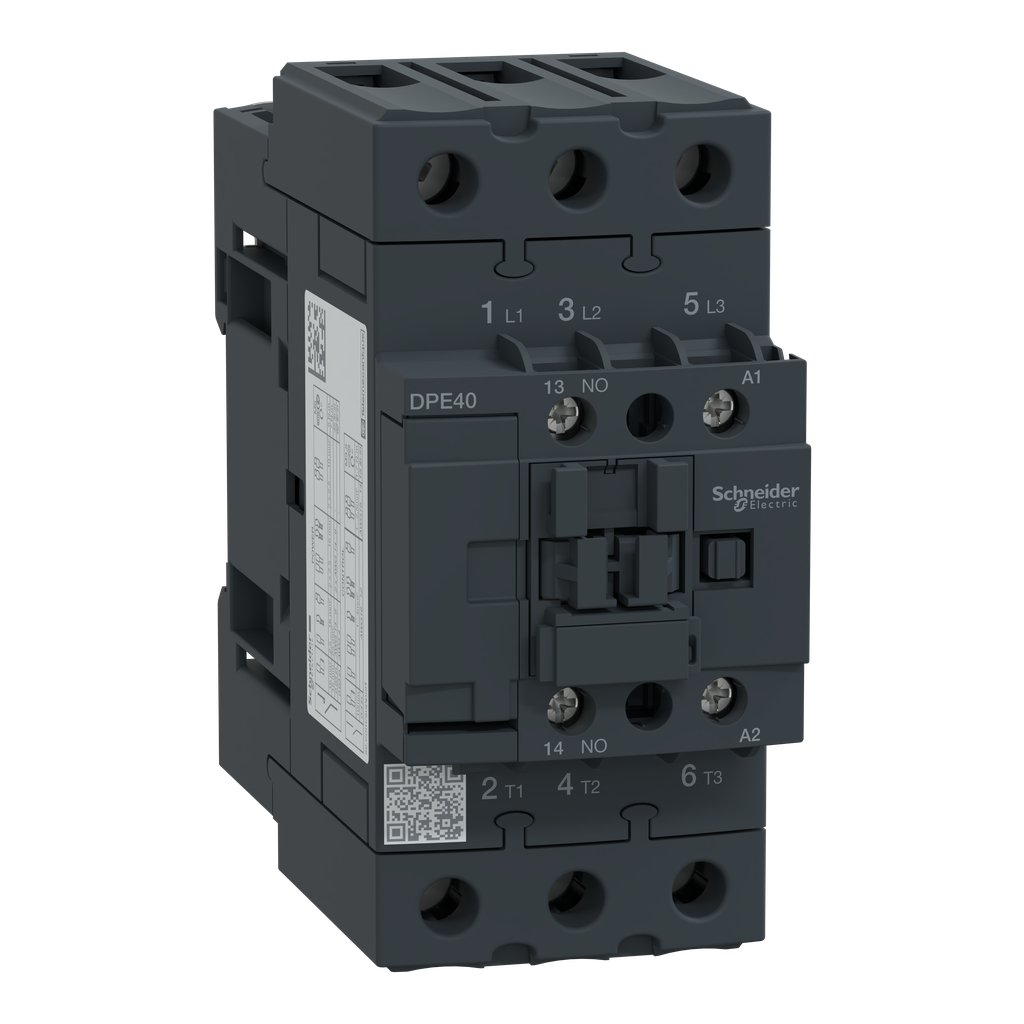

DPE40B7 - IEC contactor,Easy TeSys DPE,nonreversing,40A,3P,25HP at 480V AC,24V AC 50/60Hz coil

DPE40B7

IEC contactor,Easy TeSys DPE,nonreversing,40A,3P,25HP at 480V AC,24V AC 50/60Hz coil

Easy TeSys DPE IEC contactor, 3 poles (3NO), for motor control applications up to 40A/690V AC-3 (25HP@480V). It provides a 24V AC coil, 1NO built-in auxiliary contacts, connection by screw clamp terminals. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Country of Origin	Indonesia
Width	55 mm
Height	122 mm
Weight	0.89 kg
[Uc] Control Circuit Voltage	24 V AC 50/60 Hz
Auxiliary Contact Composition	1 NO
Contactor Application	motor control resistive load
Product Or Component Type	contactor
Product Name	Easy TeSys DPE
Range	Easy TeSys
Pole Contact Composition	3 NO
Utilisation Category	AC-1 AC-3
[Ie] Rated Operational Current	60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Poles Description	3P
Maximum Horse Power Rating	3 hp at 115 V AC 50/60 Hz for 1 phase motors 5 hp at 230/240 V AC 50/60 Hz for 1 phase motors 7.5 hp at 200/208 V AC 50/60 Hz for 3 phase motors 7.5 hp at 230/240 V AC 50/60 Hz for 3 phase motors 30 hp at 460/480 V AC 50/60 Hz for 3 phase motors 25 hp at 575/600 V AC 50/60 Hz for 3 phase motors
Motor Power Kw	11 kW 220...230 V AC 50/60 Hz 18.5 kW 380...400 V AC 50/60 Hz 22 kW 415...440 V AC 50/60 Hz 22 kW 500 V AC 50/60 Hz 30 kW 660...690 V AC 50/60 Hz
Device Short Name	DPE
Minimum Switching Current	5 mA for signalling circuit
[Ue] Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hz power circuit <= 300 V DC
Height	122 mm
Power Dissipation Per Pole	2.4 W AC-3 5.4 W AC-1
Average Impedance	1.5 mOhm - Ith 60 A 50 Hz for power circuit
Control Circuit Voltage Limits	drop-out: 0.3...0.6 Uc at 50/60 Hz (at <70 °C) operational: 0.8...1.1 Uc at 50 Hz (at <60 °C) operational: 0.85...1.1 Uc at 60 Hz (at <60 °C) operational: 1...1.1 Uc at 50/60 Hz (at <70 °C)
[Ith] Conventional Free Air Thermal Current	10 A (at 60 °C) for signalling circuit 60 A (at 60 °C) for power circuit
Mounting Support	rail plate
Control Circuit Type	AC 50/60 Hz
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Insulation Resistance	> 10 MOhm for signalling circuit
Rated Breaking Capacity	800 A at 440 V for power circuit conforming to IEC 60947
Irms Rated Making Capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 800 A at 440 V for power circuit conforming to IEC 60947
Associated Fuse Rating	10 A gG for signalling circuit conforming to IEC 60947-5-1 80 A gG at <= 690 V coordination type 1 for power circuit 80 A gG at <= 690 V coordination type 2 for power circuit
Net Weight	0.89 kg
Inrush Power In Va	140-140 VA 60 Hz cos phi 0.75 (at 20 °C)
Connections - Terminals	power circuit: screw connection 1 2.5-25 mm² - cable stiffness: flexible without cable end power circuit: screw connection 2 2.5-16 mm² - cable stiffness: flexible without cable end power circuit: screw connection 1 2.5-25 mm² - cable stiffness: flexible with cable end power circuit: screw connection 2 2.5-10 mm² - cable stiffness: flexible with cable end power circuit: screw connection 1 2.5-25 mm² - cable stiffness: solid without cable end power circuit: screw connection 2 2.5-16 mm² - cable stiffness: solid without cable end control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end
Coil Technology	without built-in suppressor module
Minimum Switching Voltage	17 V for signalling circuit
Maximum Operating Rate	3600 cyc/h 60 °C
Signalling Circuit Frequency	25...400 Hz
Tightening Torque	power circuit 7 N.m screw connectors 16-25 mm² hexagonal 4 mm power circuit 5 N.m screw connectors 2.5-16 mm² hexagonal 4 mm control circuit 1.7 N.m screw clamp terminals pozidriv No 2 control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm control circuit 1.7 N.m screw clamp terminals Philips No 2
Electrical Durability	0.6 Mcycles 60 A AC-1 <= 440 V 1 Mcycles 40 A AC-3 <= 440 V
Mechanical Durability	5 Mcycles
Auxiliary Contacts Type	mechanically linked 1 NO IEC 60947-5-1
Hold-In Power Consumption In Va	13-13 VA 60 Hz cos phi 0.3 (at 20 °C)
Operating Time	4...19 ms opening 12...26 ms closing
Width	55 mm
Depth	122 mm
[Icw] Rated Short-Time Withstand Current	320 A 40 °C - 10 s for power circuit 720 A 40 °C - 1 s for power circuit 72 A 40 °C - 10 min for power circuit 165 A 40 °C - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
Heat Dissipation	4-5 W 50/60 Hz
Product Certifications	cULus
Ambient Air Temperature For Operation	-40-60 °C
Standards	CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1
Climatic Withstand	IACS E10 IEC 60947-1 Annex Q category D
Pollution Degree	3
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Ambient Air Temperature For Storage	-60-80 °C
Ip Degree Of Protection	IP20 front face IEC 60529
Mechanical Robustness	vibrations contactor open 2 Gn, 5...300 Hz) vibrations contactor closed 4 Gn, 5...300 Hz) shocks contactor open 10 Gn for 11 ms) shocks contactor closed 15 Gn for 11 ms)
Operating Altitude	0...6561.68 ft (0...2000 m)
Fire Resistance	850 °C IEC 60695-2-1
Overvoltage Category	III
[Ui] Rated Insulation Voltage	power circuit 690 V IEC 60947-4-1 power circuit 600 V cUL signalling circuit 690 V IEC 60947-1 signalling circuit 600 V cUL
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1503009EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	ENVEOLI1503009EN
Eu Rohs Directive	Compliant

IEC contactor,Easy TeSys DPE,nonreversing,40A,3P,25HP at 480V AC,24V AC 50/60Hz coil
