DFCC3 - Fuse carrier, TeSys DF, 3P, 30A, 600VAC, fuse class CC

DFCC3

Fuse carrier, TeSys DF, 3P, 30A, 600VAC, fuse class CC

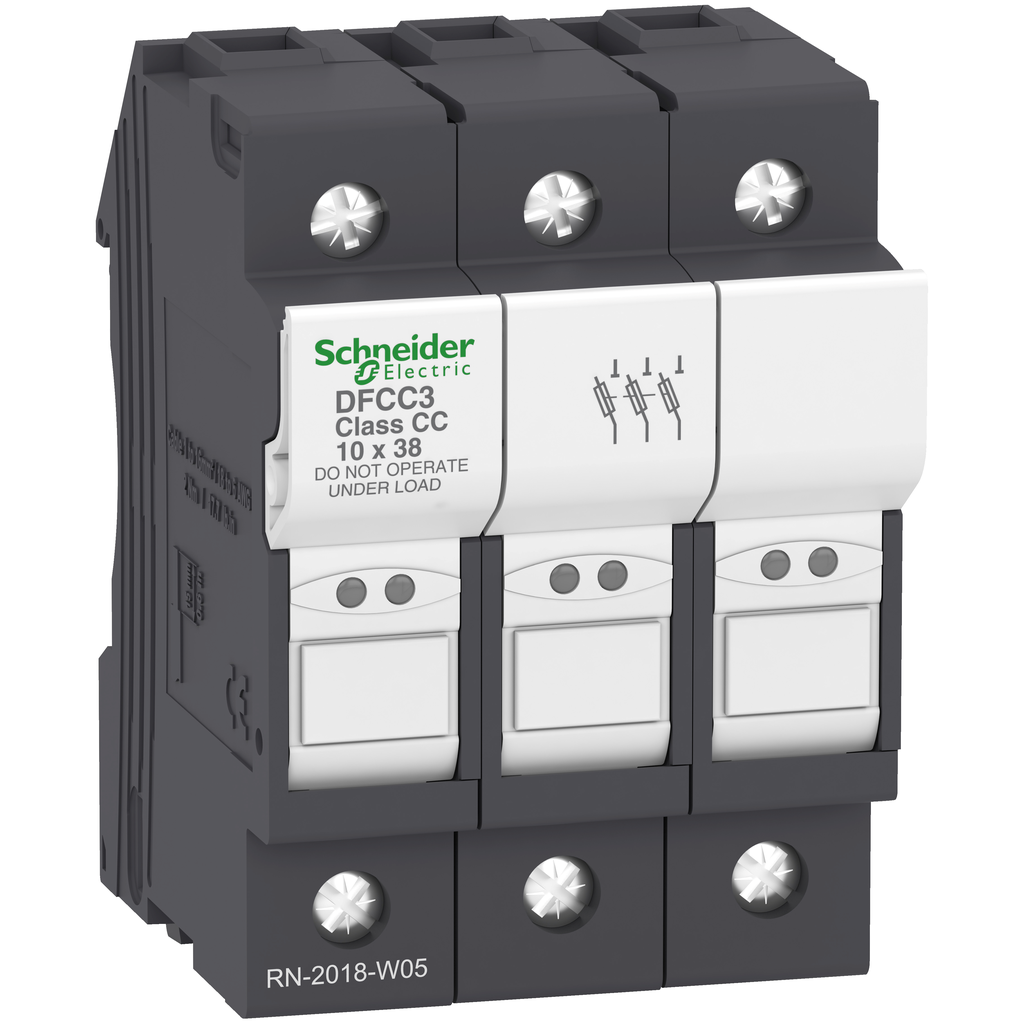

TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 30A/690V, for North American market. To be used with class CC fuse links up to 30A and short circuit current up to 200kA@600V. Compact (52.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (UL recognized, CSA), Green Premium product (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Ambient Air Temperature For Operation	-40-70 °C with derating above 20°C
Ip Degree Of Protection	IP20
Pollution Degree	3
Ambient Air Temperature For Storage	-40-70 °C
Compatibility Code	DFCC
Operating Altitude	0...6561.68 ft (0...2000 m) without derating
Fire Resistance	960 °C IEC 60695-2-1
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2010021EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: Cancer - www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	N/A
Eu Rohs Directive	Compliant
Height	79.5 mm
Mounting Support	35 mm symmetrical DIN rail
Standards	UL 4248-1 UL 4248-4 CSA C22.2 No 4248-1 CSA C22.2 No 4248-4
Product Certifications	UL Recognized CSA
Connections - Terminals	screw clamp terminals 1 1-16 mm²rigid screw clamp terminals 2 1-6 mm²rigid screw clamp terminals 1 1-16 mm²flexible with or without screw clamp terminals 2 1-6 mm²flexible with or without
Net Weight	0.126 kg
Mounting Position	vertical +/- 23°)
Tightening Torque	2 N.m PZ2 2 N.m flat Ø 5.5 mm
Quantity Per Set	set of 6
Width	52.5 mm
Depth	61 mm
Country of Origin	United States
Width	52.5 mm
Height	79.5 mm
Weight	0.126 kg
[Ue] Rated Operational Voltage	600 V AC
Fuse Type	, CC
Product Or Component Type	fuse carrier
Product Name	TeSys DF
Power Dissipation In W	3 W maximum power dissipation by fuse
Utilisation Category	AC-20B IEC 60947-3
[Uimp] Rated Impulse Withstand Voltage	6 kV
Range	TeSys
Short-Circuit Withstand	200 kA 600 V UL 512
[Ui] Rated Insulation Voltage	600 V AC
[Ie] Rated Operational Current	30 A
Control Type	toggle padlockable
Poles Description	3P
Device Short Name	DFCC
