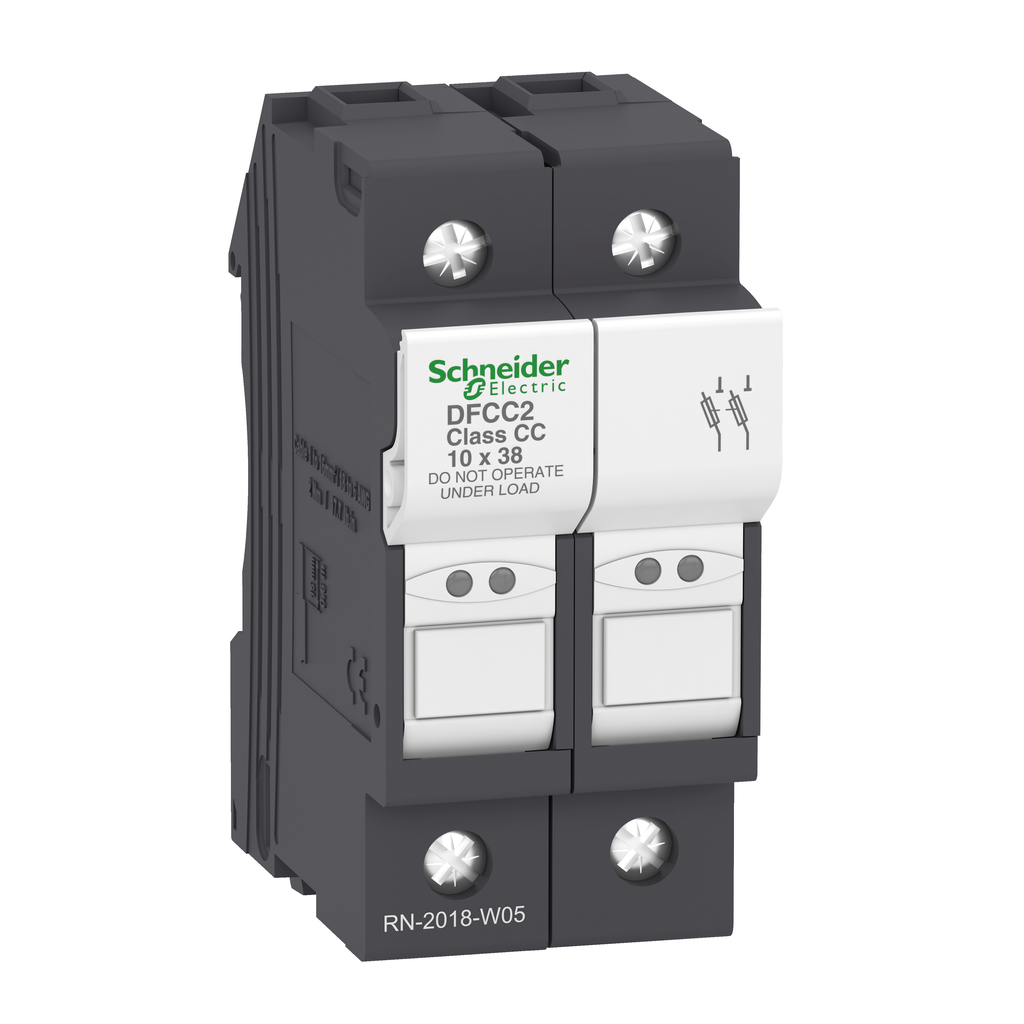

TeSys DF modular fuse carrier, 2 poles (2P), for protection of control circuits up to 30A/600V, for North American market. To be used with class CC fuse links up to 30A and short circuit current up to 200kA@600V. Compact (35mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (UL recognized, CSA), Green Premium product (RoHS/REACh).
Brand: Schneider Electric
Add to Quote Catalogue[Ue] Rated Operational Voltage | 600 V AC |
---|---|
Fuse Type | , CC |
Product Or Component Type | fuse carrier |
Product Name | TeSys DF |
Power Dissipation In W | 3 W maximum power dissipation by fuse |
Utilisation Category | AC-20B IEC 60947-3 |
[Uimp] Rated Impulse Withstand Voltage | 6 kV |
Range | TeSys |
Short-Circuit Withstand | 200 kA 600 V UL 512 |
[Ui] Rated Insulation Voltage | 600 V AC |
[Ie] Rated Operational Current | 30 A |
Control Type | toggle padlockable |
Poles Description | 2P |
Device Short Name | DFCC |
Warranty | 18 months |
Height | 79.5 mm |
Mounting Support | 35 mm symmetrical DIN rail |
Standards |
|
Product Certifications |
|
Connections - Terminals |
|
Net Weight | 0.085 kg |
Mounting Position | vertical +/- 23°) |
Tightening Torque |
|
Quantity Per Set | set of 12 |
Width | 35 mm |
Depth | 61 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2010021EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: Cancer - www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation | -40-70 °C with derating above 20°C |
Ip Degree Of Protection | IP20 |
Pollution Degree | 3 |
Ambient Air Temperature For Storage | -40-70 °C |
Compatibility Code | DFCC |
Operating Altitude | 0...6561.68 ft (0...2000 m) without derating |
Fire Resistance | 960 °C IEC 60695-2-1 |
