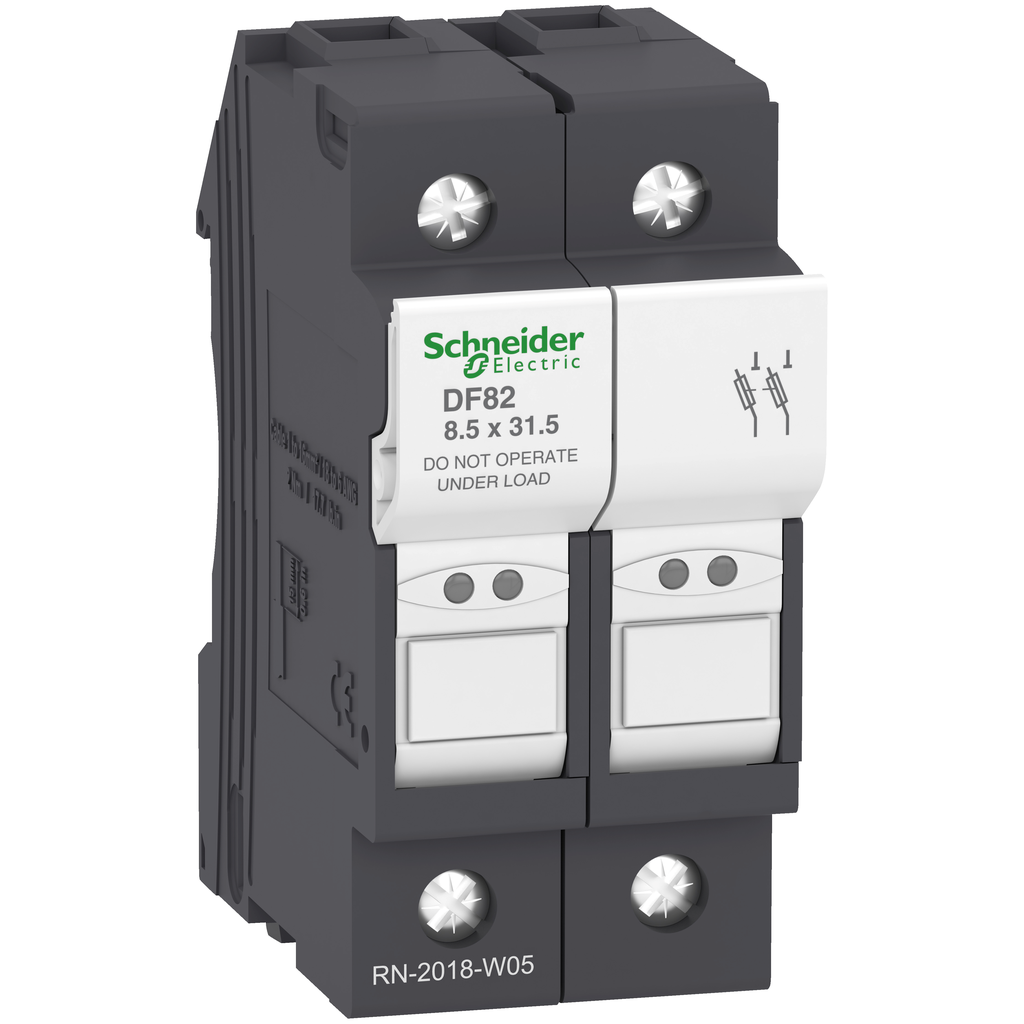

DF82
Fuse carrier, TeSys DF, 2P, 25A, 400VAC, fuse size 8.5x31.5mm
TeSys DF modular fuse carrier, 2 poles (2P), for protection of control circuits up to 25A/500V. To be used with 8.5x31.5mm fuse links up to 25A and short circuit current up to 20kA@400V. Compact (35mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals, padlockable without accessory. Fuse links (8.5x31.5mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, EAC, Marine), Green Premium product (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | -40-70 °C with derating above 20°C |
|---|---|
| Ip Degree Of Protection | IP20 |
| Pollution Degree | 3 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Compatibility Code | DF8 |
| Operating Altitude | 0...6561.68 ft (0...2000 m) without derating |
| Fire Resistance | 960 °C IEC 60695-2-1 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2010021EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: Cancer - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Height | 79.5 mm |
| Mounting Support | 35 mm symmetrical DIN rail |
| Standards |
|
| Product Certifications |
|
| Connections - Terminals |
|
| Net Weight | 0.085 kg |
| Mounting Position | vertical +/- 23°) |
| Tightening Torque |
|
| Quantity Per Set | set of 6 |
| Width | 35 mm |
| Depth | 61 mm |
| Country of Origin | France |
| Width | 35 mm |
| Height | 79.5 mm |
| Weight | 0.085 kg |
| Fuse Size | 8.3 x 31.5 mm |
| [Ue] Rated Operational Voltage | 400 V AC |
| [Ith] Conventional Free Air Thermal Current | 25 A 20 °C |
| Fuse Type |
|
| Product Or Component Type | fuse carrier |
| Product Name | TeSys DF |
| Power Dissipation In W | 2.5 W maximum power dissipation by fuse |
| Utilisation Category | AC-20B IEC 60947-3 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| Range | TeSys |
| Overvoltage Category | III |
| Short-Circuit Withstand | 20 kA 400 V IEC 60947-3 |
| [Ui] Rated Insulation Voltage | 500 V AC |
| Product Compatibility |
|
| [Ie] Rated Operational Current | 25 A 400 V AC |
| Control Type | toggle padlockable |
| Poles Description | 2P |
| Device Short Name | DF8 |
