DF142

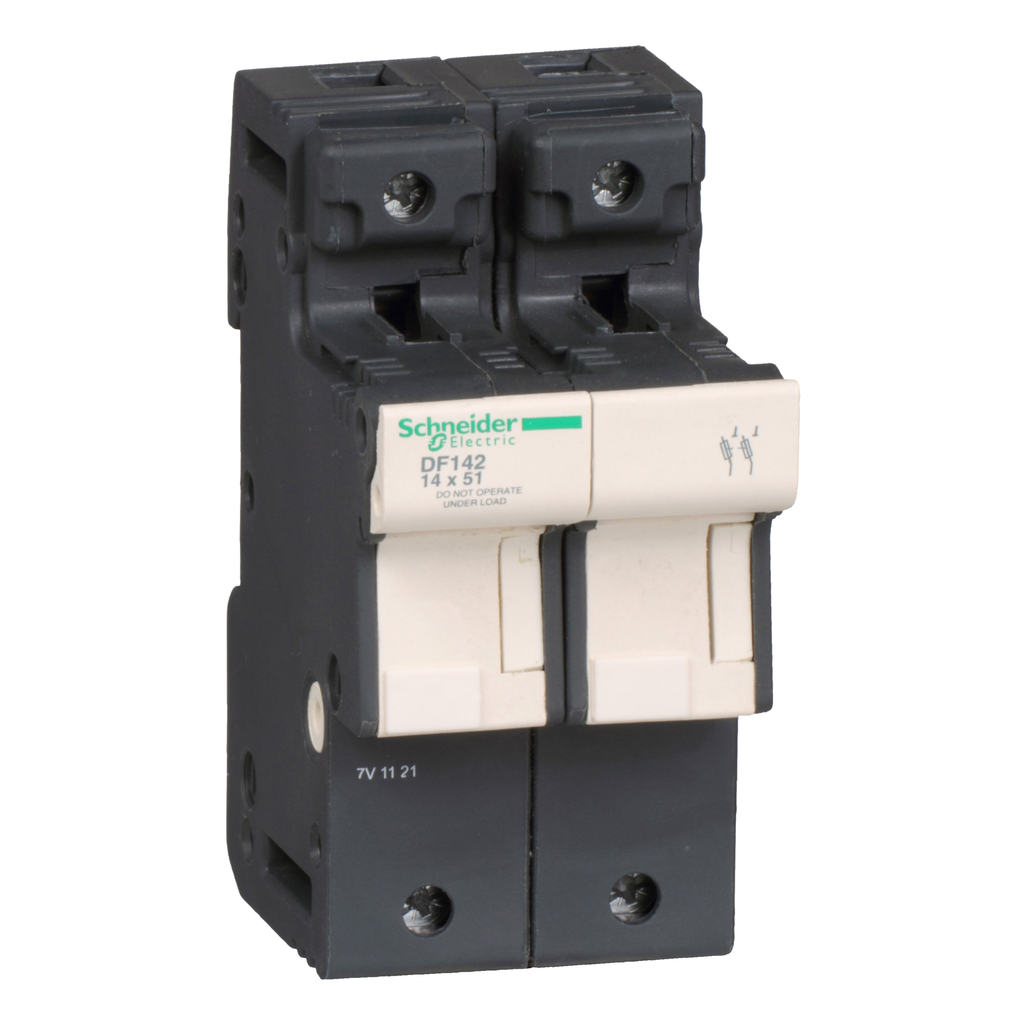

Fuse carrier, TeSys DF, 2P, 50A, 690VAC, fuse size 14x51mm
TeSys DF modular fuse carrier, 2 poles (2P), for protection of control circuits up to 50A/690V. To be used with 14x51mm fuse links up to 50A and short circuit current up to 120kA@400V. Compact (53mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links (14x51mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 3 units. Multi standards certified (IEC, UL recognized, CSA, EAC), Green Premium product (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | -20-60 °C with derating above 20°C |
|---|---|
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Protective Treatment | TH |
| Compatibility Code | DF14 |
| Fire Resistance | 960 °C IEC 60695-2-1 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2010021EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: Cancer - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Height | 110.8 mm |
| Mounting Support | 35 mm symmetrical DIN rail |
| Standards |
|
| Product Certifications |
|
| Connections - Terminals |
|
| Net Weight | 0.280 kg |
| Mounting Position | vertical +/- 23°) |
| Tightening Torque | 3.5 N.m |
| Quantity Per Set | set of 3 |
| Width | 52.5 mm |
| Depth | 76.5 mm |
| Country of Origin | Tunisia |
| Width | 52.5 mm |
| Height | 110.8 mm |
| Weight | 0.280 kg |
| Fuse Size | 14 x 51 mm |
| [Ue] Rated Operational Voltage |
|
| Fuse Type |
|
| Product Or Component Type | fuse carrier |
| Product Name | TeSys DF |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Range | TeSys |
| Short-Circuit Withstand |
|
| [Ui] Rated Insulation Voltage | 690 V AC |
| Product Compatibility |
|
| [Ie] Rated Operational Current | 50 A |
| Control Type | toggle |
| Poles Description | 2P |
| [Ipk] Rated Peak Withstand Current | 15 kA with tubular links IEC 60269-1 |
| Device Short Name | DF14 |
