D323NRB - Safety switch, general duty, fusible, 100A, 3 pole, 30hp, 240VAC, NEMA 3R, 4 wire, 1 neutral, bolt on hub provision

D323NRB

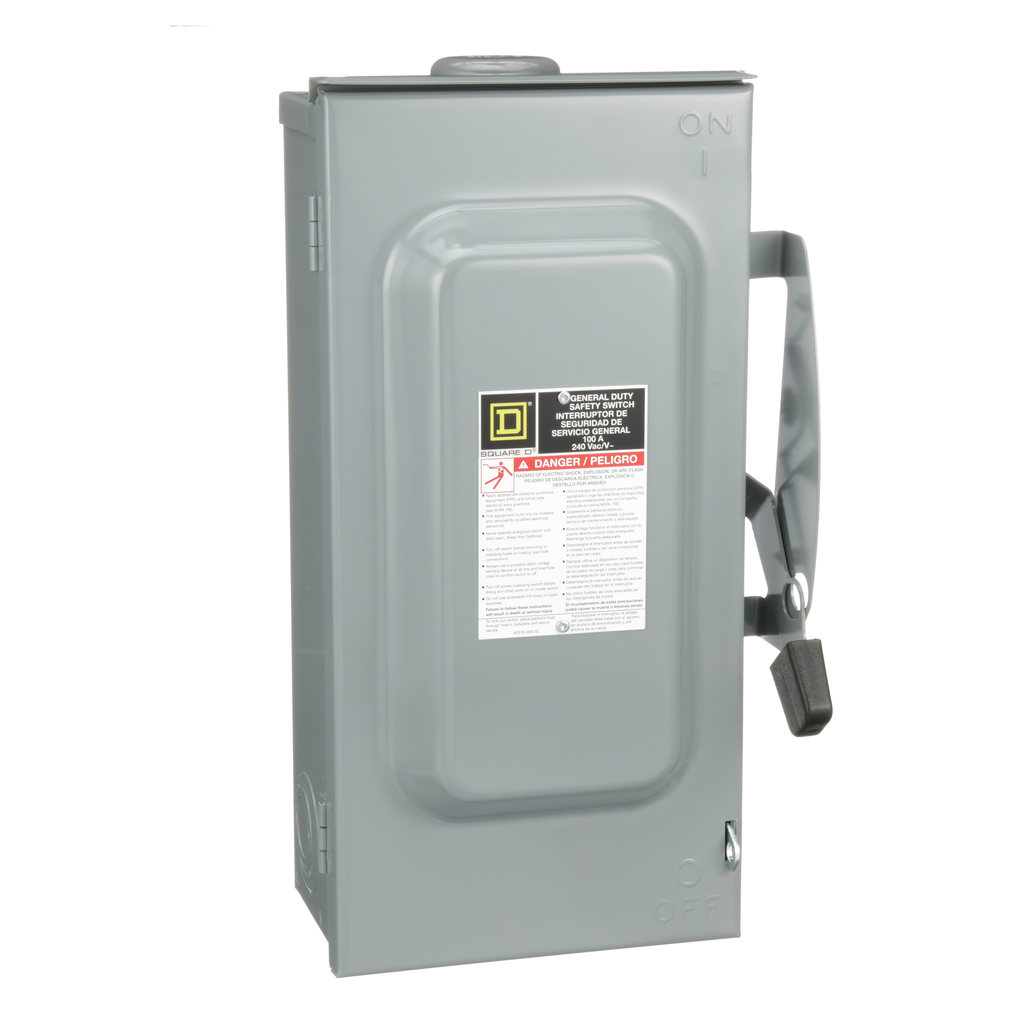

Safety switch, general duty, fusible, 100A, 3 pole, 30hp, 240VAC, NEMA 3R, 4 wire, 1 neutral, bolt on hub provision

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory installed neutral assembly or field installed service grounding kit. This general duty single throw safety switch is a three pole, 100A, fusible disconnect with a 240VAC voltage rating. This switch has a factory installed neutral and a NEMA 3R enclosure and is surface mounted. This safety switch accepts H, K, or R fuses. This switch comes with lugs suitable for aluminum or copper conductors. These general duty switches are UL listed.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL listed file E2875
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2305006EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Height	17.5 in
Device Mounting	surface
Tightening Torque	35-35 lbf.in 2.08-5.26 mm² (AWG 14...AWG 10) 35-35 lbf.in (AWG 14...AWG 10) 40-40 lbf.in 8.37-8.37 mm² (AWG 8) 45-45 lbf.in 12.3-21.12 mm² (AWG 6...AWG 4) 50-50 lbf.in (AWG 3...AWG 1)
Short-Circuit Current	100 kA maximum depending on fuse H, K or R
Net Weight	7.71 kg
Fuse Type	H, K or R
Electrical Connection	lugs
Awg Gauge	AWG 14...AWG 1 copper AWG 12...AWG 1 aluminium
Wiring Configuration	4-wire (3PH + G)
Width	10.5 in
Depth	6.5 in
Country of Origin	United States
Width	10.5 in
Height	17.5 in
Weight	7.71 kg
Disconnector Device Type	fusible disconnect switch
Product Or Component Type	Single Throw Safety Switch
Phase	3 phase
Series Name	general duty
Nema Degree Of Protection	NEMA 3R
Line Rated Current	100 A
Motor Power Hp	7.5 hp at 240 V AC 60 Hz for 1 phase motors 15 hp at 240 V AC 60 Hz for 3 phase motors 15 hp at 240 V AC 60 Hz for 1 phase motors 30 hp at 240 V AC 60 Hz for 3 phase motors
Device Composition	neutral (factory installed)
Device Application	residential
Number Of Poles	3
[Ue] Rated Operational Voltage	240 V AC

Safety switch, general duty, fusible, 100A, 3 pole, 30hp, 240VAC, NEMA 3R, 4 wire, 1 neutral, bolt on hub provision
