CYA600P5
Connection accessory, PowerPacT M/P, compression lug kit, unit mount, 18 kA, 600A, copper

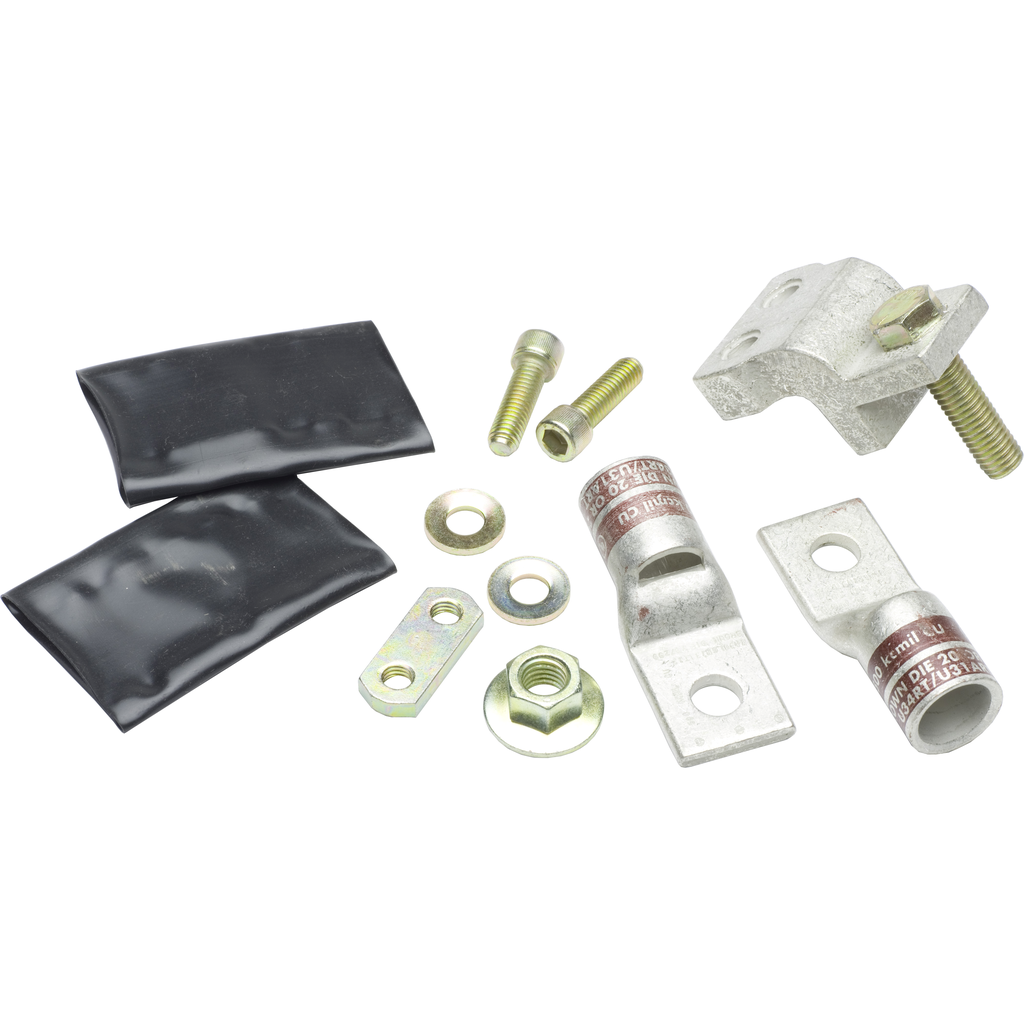

M-Frame circuit breakers offer accessory options for rear connectors, compression lugs, and distribution lugs. These compression lugs are copper and are rated for up to 400A. Each lug acccepts one conductor, 4/0 AWG to 500kcmil. The kit contains two lugs.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407012EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1407012EN |
| Sustainable Packaging | Yes |
| Eu Rohs Directive | Compliant |
| Tightening Torque | 28-28 N.m 95-240 mm² (AWG 4/0...500 kcmil) |
| Material | copper |
| Line Rated Current | 600-600 A |
| Mounting Mode | unit mount |
| Awg Gauge | AWG 4/0...500 kcmil aluminium/copper |
| Country of Origin | United States |
| Range Of Product |
|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | mechanical lug |
| Quantity Per Set | set of 3 |
Documents
- Compression Lug Kits for M-, P-, and R-Frame Circuit Breakers Installation Instructions - 48049-147-02 (pdf)
- PowerPacT M-frame Circuit Breaker Instruction Bulletin - 48049-251-01+Rev04 (pdf)
- Spec Sheet
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
