CYA600L32K3

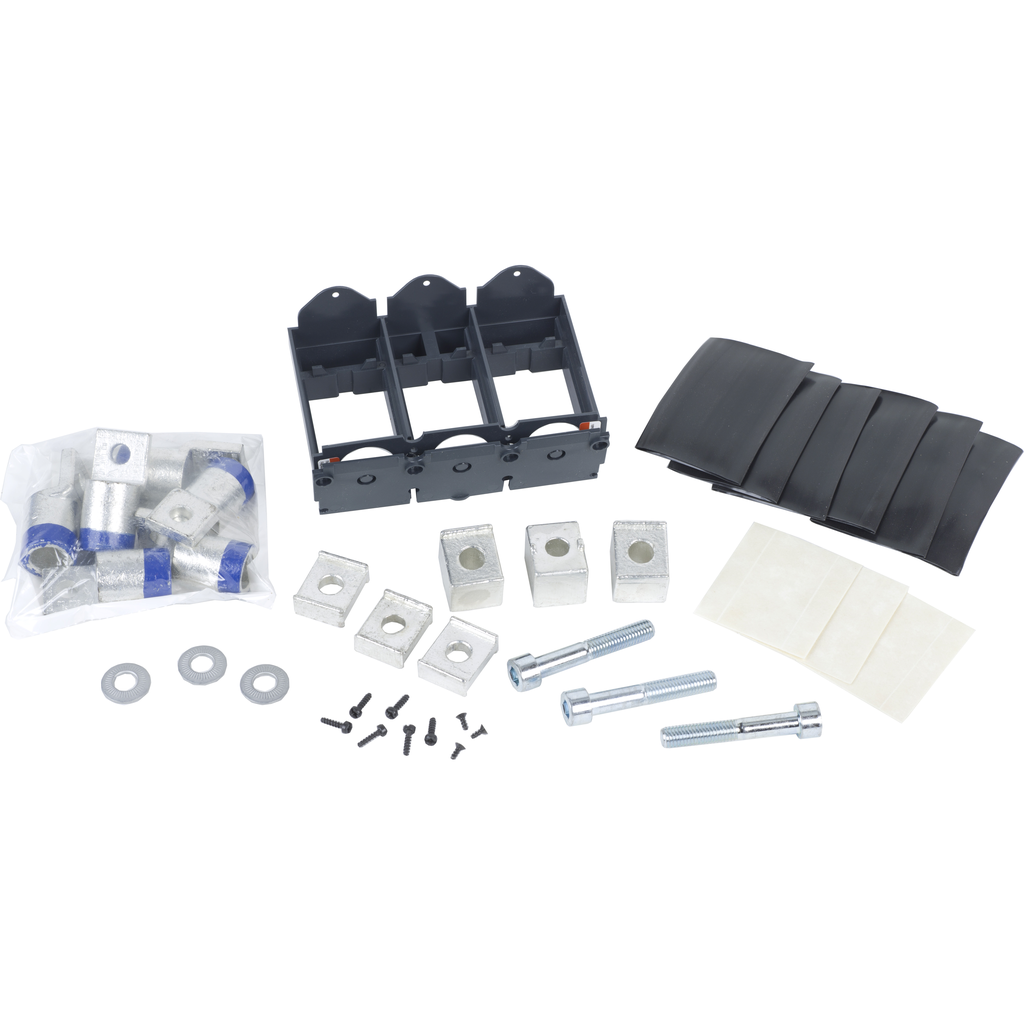

Circuit breaker accessory, PowerPacT L, lug kit, compression, 600A, copper, 2/0 AWG to 300kcmil, copper, qty 6
This lug kit is for PowerPacT L circuit breakers. This PowerPacT L, compression lug is a connection accessory with a rated current of 600A and is made of copper. The lugs accept 2/0 AWG to 300kcmil copper conductors. The lugs comply with UL and CSA standards. This product complies with UL and CSA standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1410004EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Tightening Torque | 50-50 N.m 70-150 mm² (AWG 2/0...300 kcmil) |
| Material | copper |
| Line Rated Current | 600-600 A |
| Mounting Mode | unit mount |
| Awg Gauge | AWG 2/0...300 kcmil copper |
| Country of Origin | United States |
| Range Of Product | PowerPact L |
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | mechanical lug |
| Quantity Per Set | set of 6 |
Documents
- Compression Lug Kits for PowerPacT L-Frame Circuit Breakers Installation Instructions - S1A14749 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
