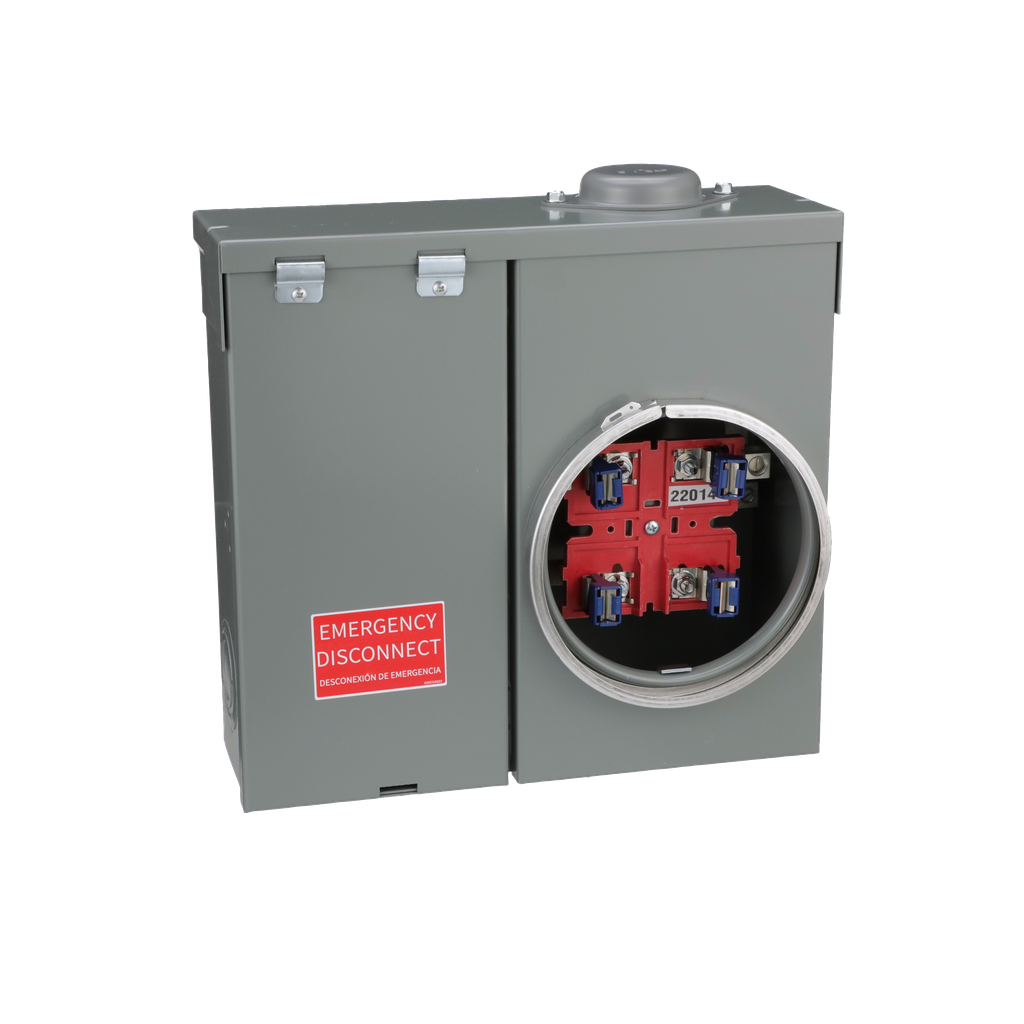

CQRB100CP
Meter mains, QO, CSED, ringed socket, 125A, surface mount, no bypass
QO meter main devices are used in residential applications where local codes require service disconnects to be located outside the dwelling. They include the utility meter socket and factory installed and/or provisions for field installation of service disconnect(s) to feed downstream devices. Meter mains are surface mount and typically used with interior mounted sub feed load centers. This meter main is ring type at a 100 A Main breaker rating and 125 A line rated current. It has a hub type of B with service disconnect already installed and a short circuit rating of 10 kA. Service feed can be underground or overhead.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Mexico |
|---|---|
| Width | 13.82 in |
| Height | 12.80 in |
| Range Of Product | QO |
| Provided Equipment | circuit-breaker 1 ) 2P 100 A 120/240 V AC main supply ready assembled |
| Product Or Component Type | Meter Mains |
| Height | 12.80 in |
| Bypass Type | no bypass |
| Service Feed Location |
|
| Bus Rated Current | 100.0 A |
| Electrical Connection |
|
| Number Of Circuits | 0 |
| Number Of Spaces | 0 |
| Short-Circuit Current | 10 kA |
| Number Of Tandem Circuit Breakers | 0 |
| Hub Type | B |
| Meter Socket Type | ringed |
| Service Disconnect Rated Current | 100 A |
| Line Rated Current | 125 A |
| Awg Gauge |
|
| Width | 13.82 in |
| Depth | 4.39 in |
| Network Number Of Phases | 1 |
| Device Composition | service disconnect (factory installed) |
| Device Mounting | surface (outdoor) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407020EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Product Certifications | UL E-6294 |
