CQO48M60DSGP

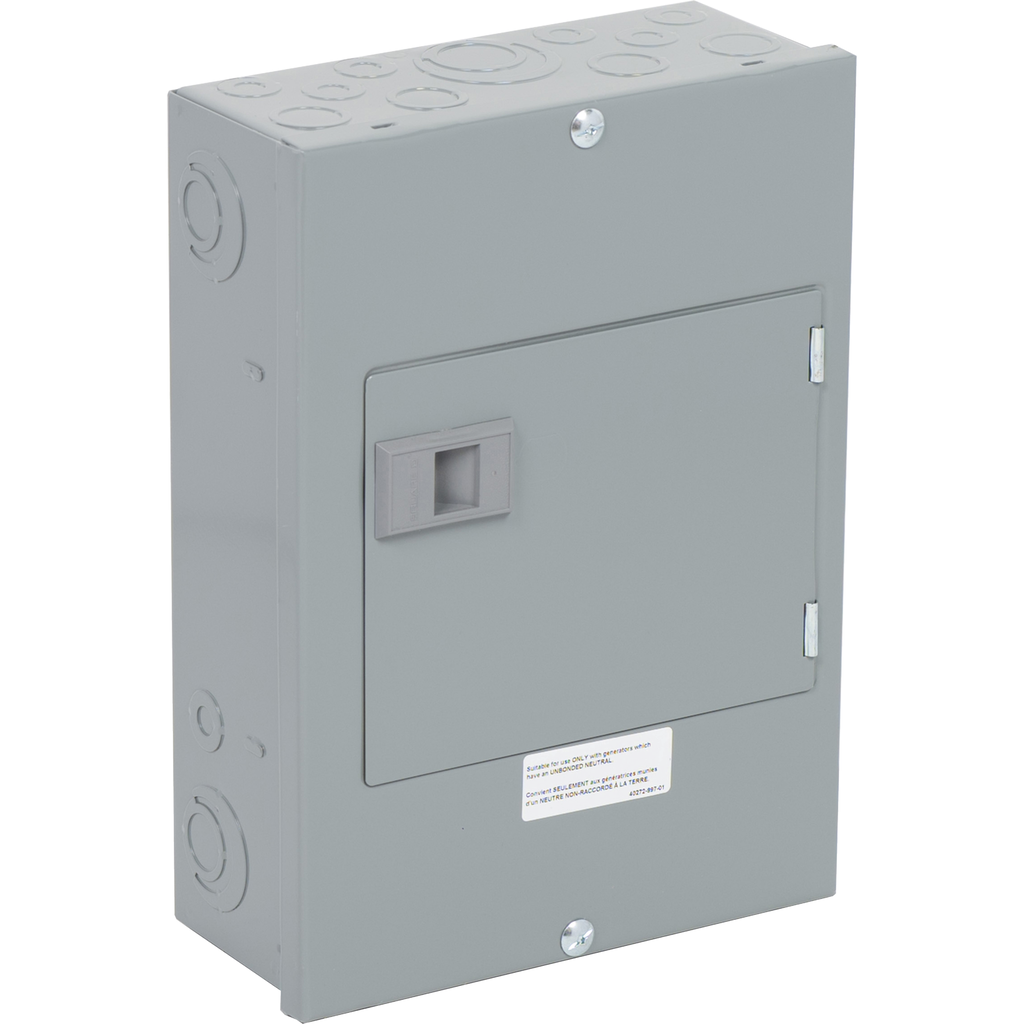

Generator panel, QO, 1 phase, 4 spaces, 8 circuits, 60A main breaker with interlock, NEMA1, surface cover door, CSA
Specifications
| Height | 12.45 in |
|---|---|
| Phase | 1 phase 3 wires |
| Tightening Torque | Cover 20 lb.in |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Electrical Connection | lugs |
| Number Of Circuits | 4 |
| Number Of Spaces | 4 |
| Number Of Tandem Circuit Breakers | 8 |
| Line Rated Current | 60 A |
| Awg Gauge | AWG 8...AWG 2 aluminium/copper |
| Width | 8.76 in |
| Depth | 3.75 in |
| Load Center Type | main breaker |
| Box Number | 4 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Ambient Air Temperature For Operation |
|
| Nema Degree Of Protection | NEMA 1 indoor enclosure |
| Country of Origin | Mexico |
| Width | 8.76 in |
| Height | 12.45 in |
| Range Of Product | QO |
| Product Or Component Type | panel |
| Cover Type | surface cover |
