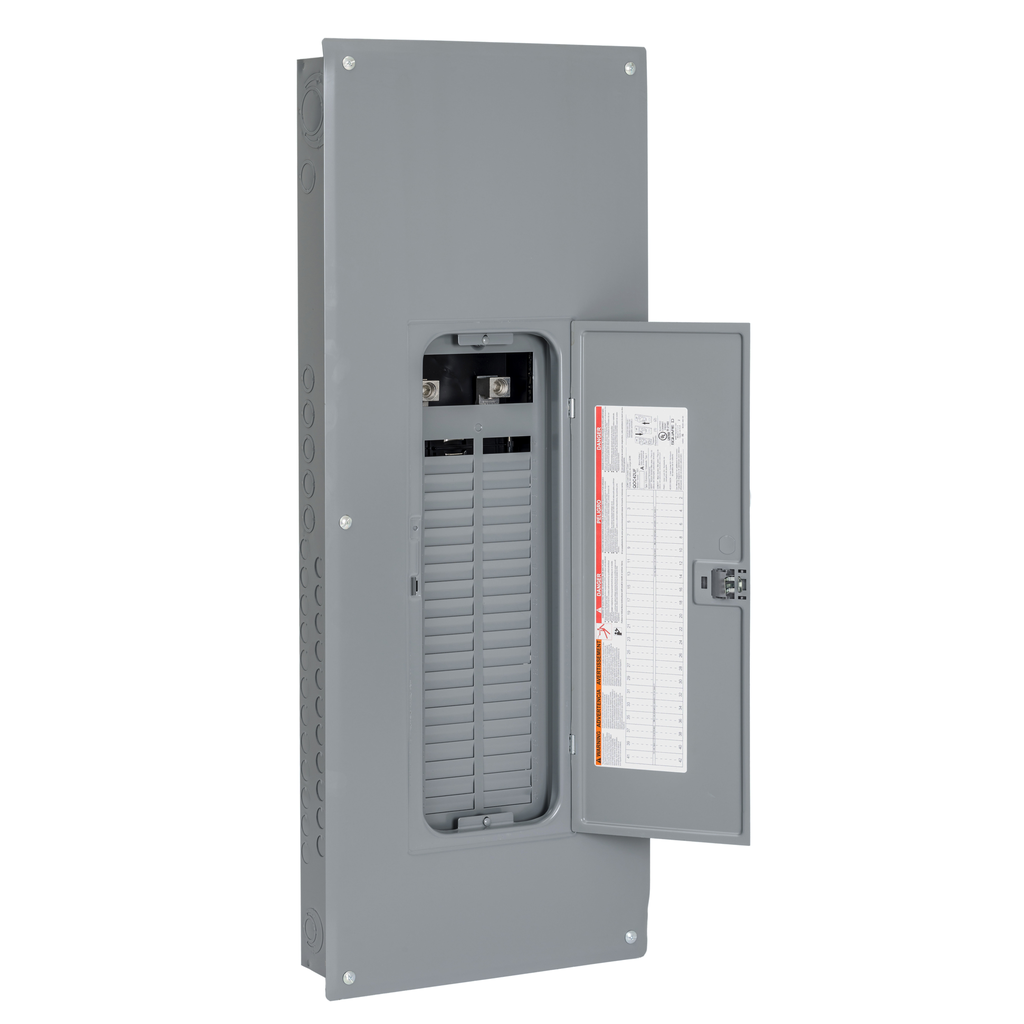

CQO142L225PGC – Loadcentre, QO, 1 phase, 42 spaces, 80 circuits, 225A main lugs, PoN, NEMA1, gnd bar, combo cover, CSA
CQO142L225PGC
Loadcentre, QO, 1 phase, 42 spaces, 80 circuits, 225A main lugs, PoN, NEMA1, gnd bar, combo cover, CSA
Specifications
Product Certifications CSA
Ambient Air Temperature For Operation
  • -5 °C
  • 40 °C
Nema Degree Of Protection NEMA 1 indoor enclosure
Rohs Exemption Information Yes
Mercury Free Yes
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
China Rohs Regulation Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive Compliant
Height 965 mm
Phase 1 phase
Tightening Torque main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper
[Ue] Rated Operational Voltage 240 V AC
Number Of Circuits 80
Number Of Spaces 42
Short-Circuit Current 65 kA
Line Rated Current 225 A
Width 362 mm
Depth 95 mm
Load Center Type PoN Convertible Mains (lugs)
Device Composition grounding bar included (not installed)
Country of Origin United States
Width 362 mm
Height 965 mm
Range Of Product QO
Product Or Component Type Load Center
Cover Type combination flush/surface cover
