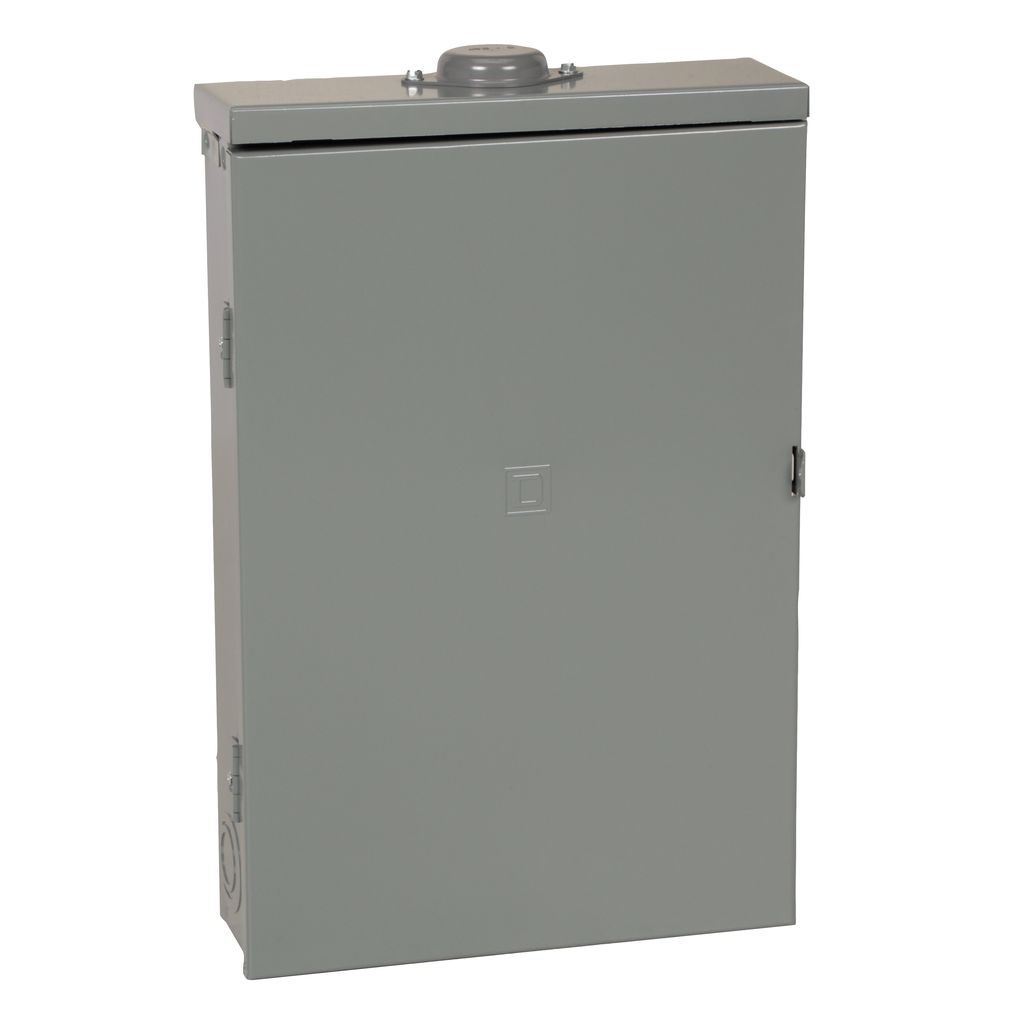

Loadcentre, QO, 1 phase, 24 spaces, 44 circuits, 125A main lugs, PoN, NEMA3R, gnd bar, CSA
QO Loadcentres offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Loadcentres are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Loadcentres enable the use of a full complement of accessories. This 1 phase loadcentre has 24 spaces and 34 circuits. This system provides 125A main lugs in a NEMA 3R enclosure. It also includes plug on neutral, ground bar, and is CSA rated.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | 758 mm |
|---|---|
| Phase | 1 phase |
| Tightening Torque | main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper |
| [Ue] Rated Operational Voltage | 240 V AC |
| Number Of Circuits | 44 |
| Number Of Spaces | 24 |
| Short-Circuit Current | 65 kA |
| Line Rated Current | 125 A |
| Width | 375 mm |
| Depth | 115 mm |
| Load Center Type | PoN Convertible Mains (lugs) |
| Device Composition | grounding bar included (not installed) |
| Product Certifications | CSA |
| Ambient Air Temperature For Operation |
|
| Nema Degree Of Protection | NEMA 3R weatherproof enclosure |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Width | 375 mm |
| Height | 758 mm |
| Range Of Product | QO |
| Product Or Component Type | Load Center |
