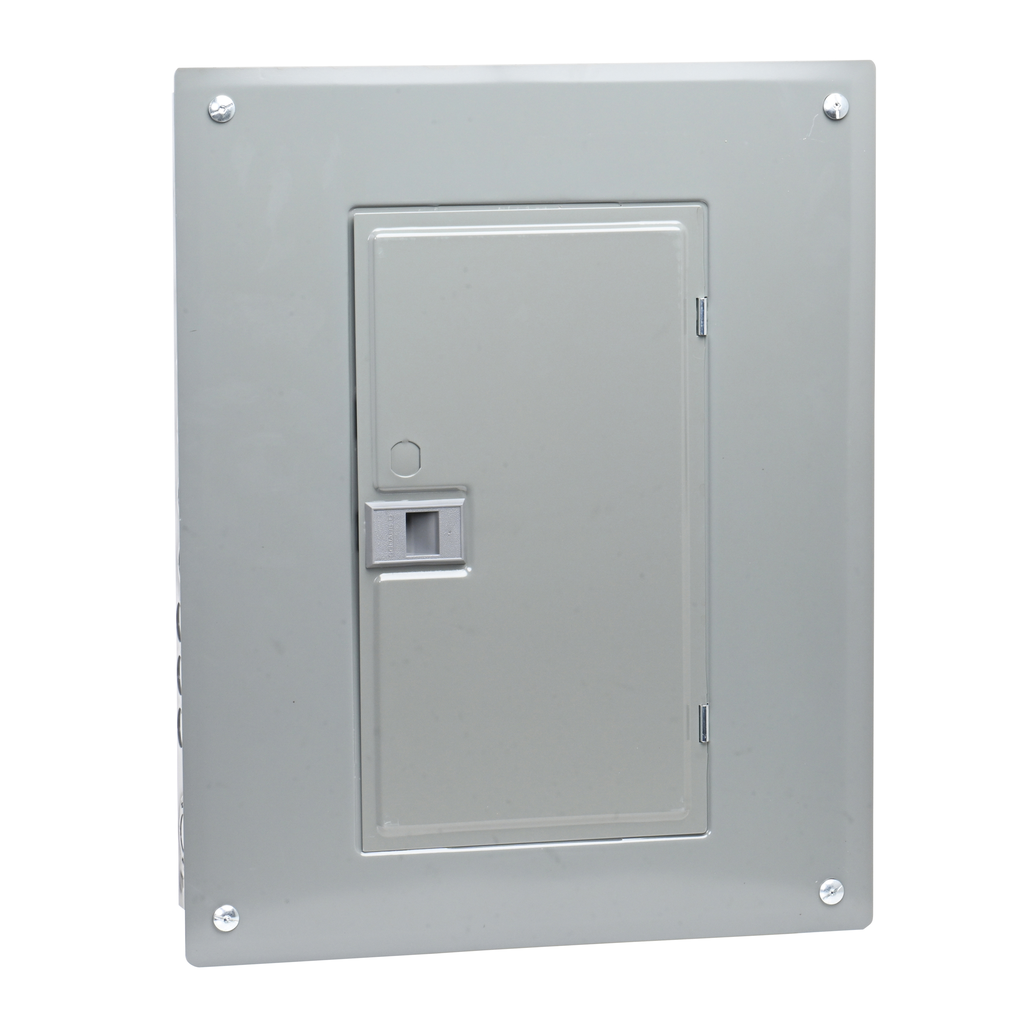

Loadcentre, QO, 1 phase, 12 spaces, 24 circuits, 100A main lugs, PoN, NEMA1, gnd bar, combo cover, CSA
QO loadcentres offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO loadcentres are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO loadcentres enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO loadcentre is supplied with a convertible main that is rated at 100A 240 VAC single phase. This QO loadcentre provides a 65 kA breaking capacity. This system provides 12 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. A ground bar is included but is to be field installed. This QO loadcentre has a height of 17.92 inches, a width of 14.25 inches and a depth of 3.75 inches. QO loadcentre is CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Width | 362 mm |
| Height | 455 mm |
| Range Of Product | QO |
| Product Or Component Type | Load Center |
| Cover Type | combination flush/surface cover |
| Height | 455 mm |
| Phase | 1 phase |
| Tightening Torque | main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper |
| [Ue] Rated Operational Voltage | 240 V AC |
| Number Of Circuits | 24 |
| Number Of Spaces | 12 |
| Short-Circuit Current | 65 kA |
| Line Rated Current | 100 A |
| Width | 362 mm |
| Depth | 95 mm |
| Load Center Type | PoN Convertible Mains (lugs) |
| Device Composition | grounding bar included (not installed) |
| Product Certifications | CSA |
| Ambient Air Temperature For Operation |
|
| Nema Degree Of Protection | NEMA 1 indoor enclosure |
