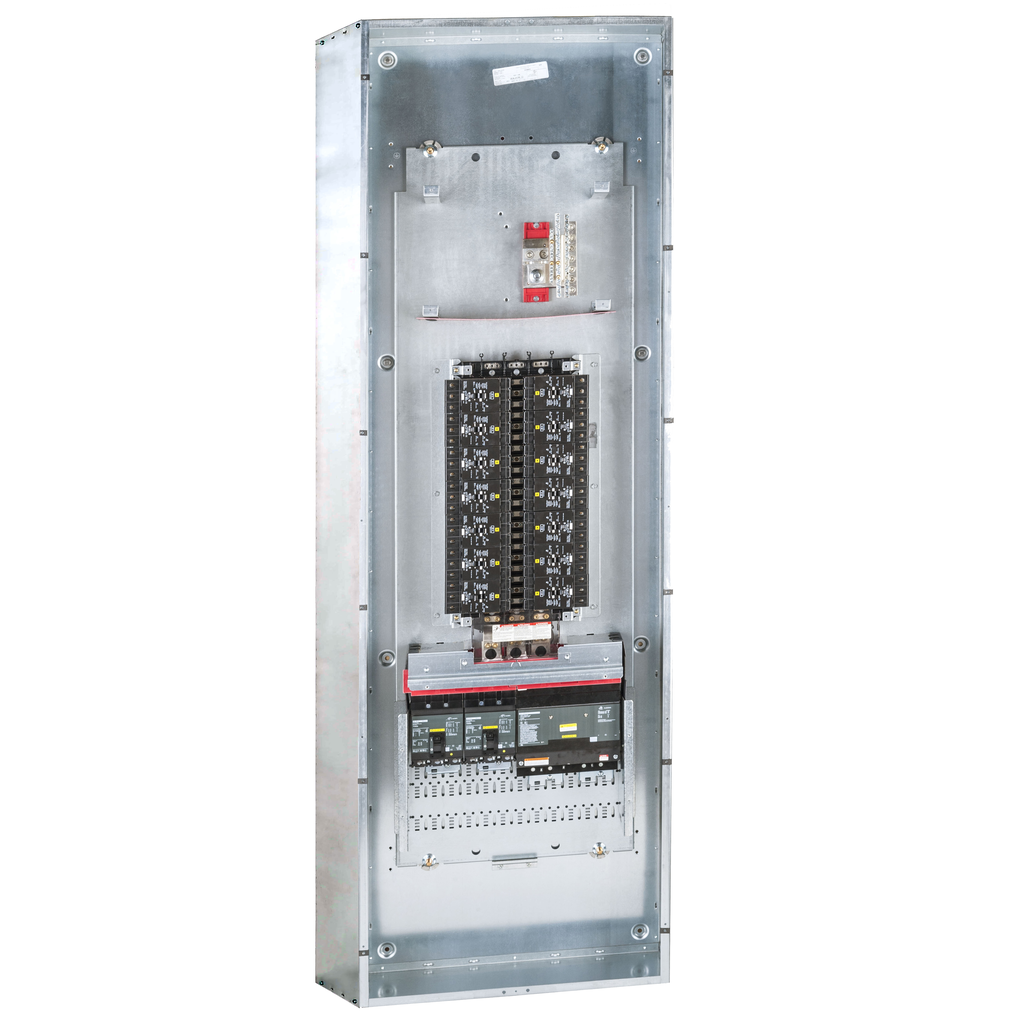

CP18864N4Q2C - Panelboard, I-Line, 400A, 3 phase, 225A NQ lighting section with 42 circuits, Cu bus

CP18864N4Q2C

Add to Quote Catalogue

Height	86 in
Number Of Circuits	42
Phase	3 phase
[Ie] Rated Operational Current	225 A
Width	26 in
Depth	9.5 in
Load Center Type	main lugs main breaker
Line Rated Current	10-200 kA main 3-200 kA branch
[Ue] Rated Operational Voltage	600Y/347 V AC 48 V DC
Country of Origin	United States
Width	26 in
Height	86 in
Range Of Product	I-Line
Circuit Breaker Type	LI LA/LH QD LL QG QO HD/HG/HJ/HL Q4 QOB FA LG QB PK JD/JG/JJ/JL LD FC LJ QJ
Provided Equipment	neutral bar copper)
Product Or Component Type	panelboard
Device Short Name	NQ
Product Certifications	UL Listed cULus CE
Nema Degree Of Protection	NEMA 1 NEMA 3R/5/12
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Not applicable, out of EU RoHS legal scope
