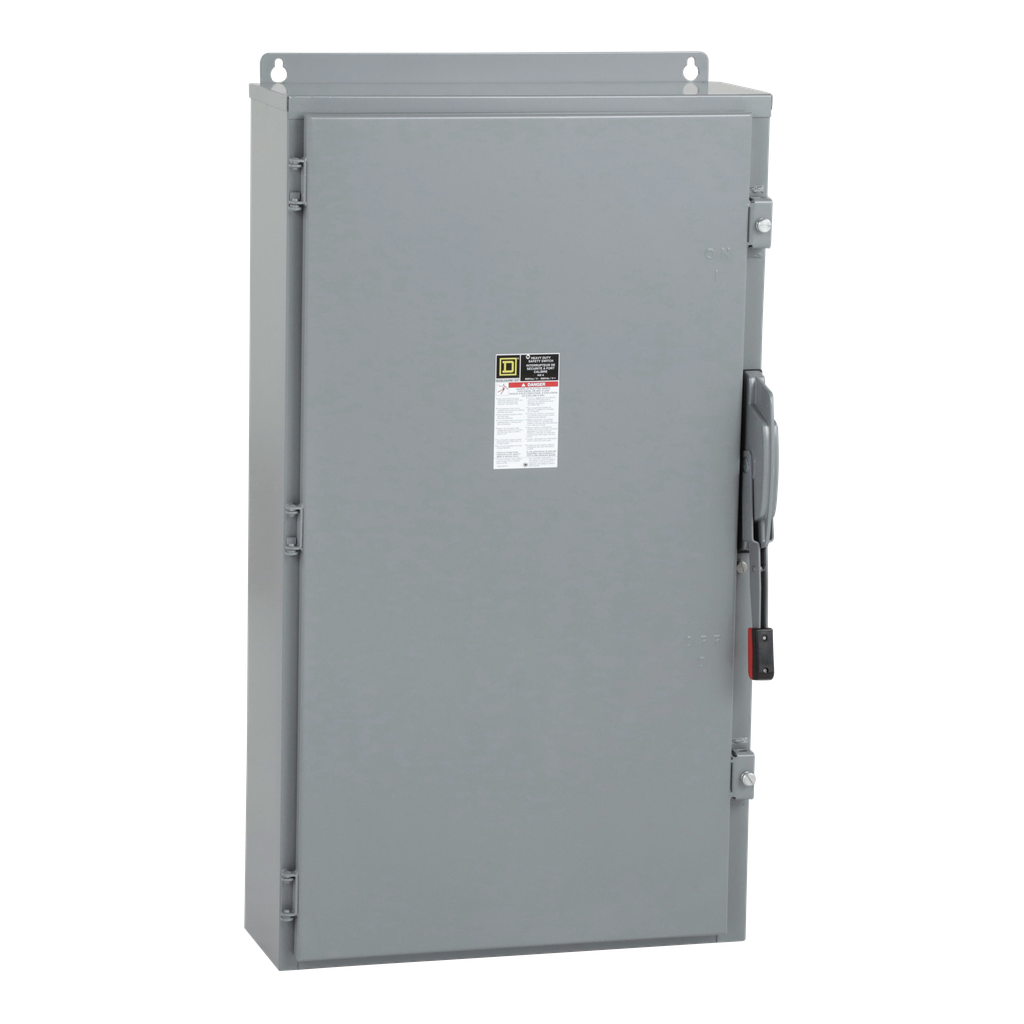

CHU365AWK
Safety switch, heavy duty, non fusible, 400A, 600VAC/VDC, 3 poles, 350HP, NEMA 12
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Electrical interlocks for Series F, 60A, fusible, general duty safety switches, are available in kit form for field installation. Each kit contains instructions for proper field mounting. A pivot arm operates from switch mechanism, breaking the control circuit before the main switch blades break. Switches with electrical interlocks installed are UL Listed. For factory-installed electrical interlocks add EI (for one contact) or EI2 (for two contacts) suffix to catalog number.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Mexico |
|---|---|
| Width | 26.25 in |
| Height | 46.25 in |
| Disconnector Device Type | non-fusible disconnect |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Electrical Connection | lugs |
| Number Of Poles | 3 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1404026EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Height | 46.25 in |
| Device Mounting | surface |
| Tightening Torque | 550-550 lbf.in (AWG 1/0...750 kcmil) |
| Line Rated Current | 400 A |
| Awg Gauge | AWG 1/0...750 kcmil copper or aluminium |
| Width | 26.25 in |
| Depth | 10.13 in |
| Device Composition | none |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Product Certifications | CSA |
| Nema Degree Of Protection | NEMA 3R/12 galvannealed steel |
