CHU362DSWC

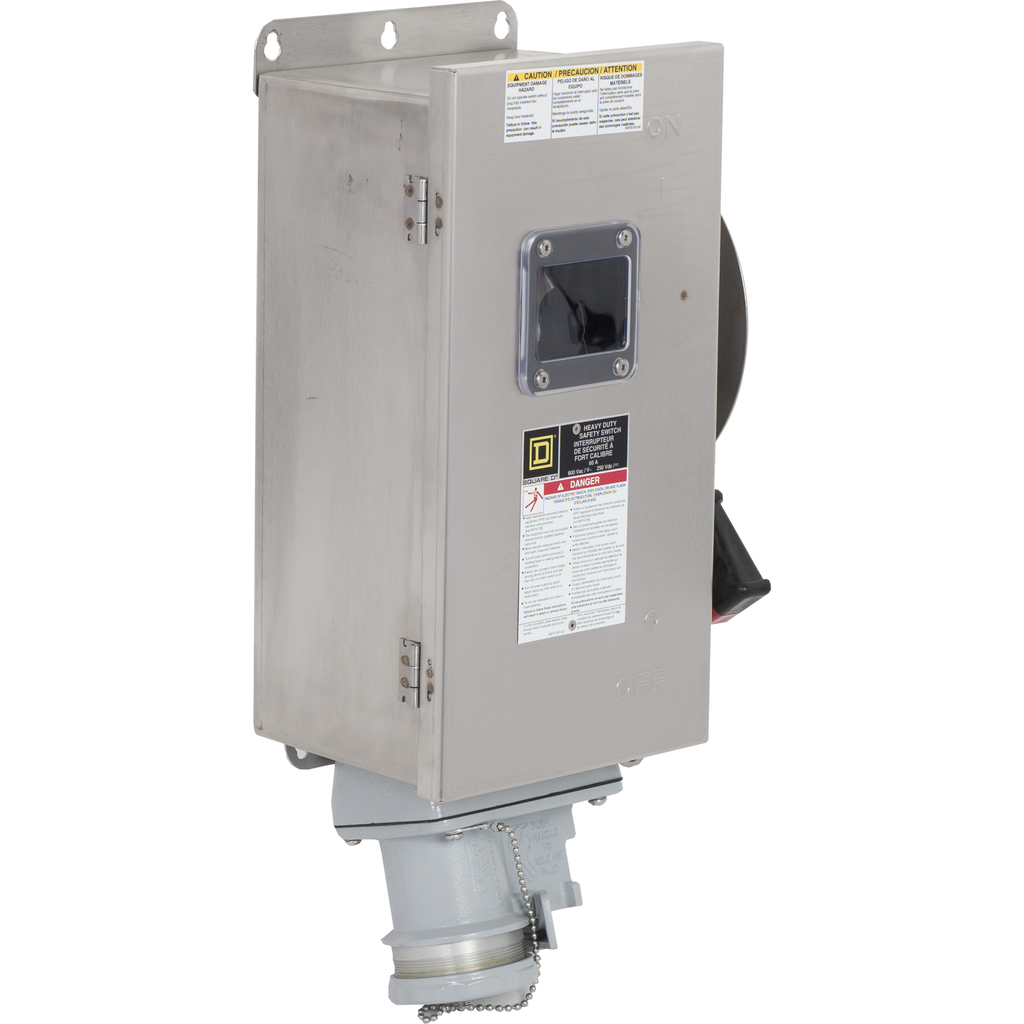

Safety switch, heavy duty, non fusible, 60A, 600V, 3 poles, 60HP, NEMA 4, 4X, 5, 304 steel, Crouse-Hinds receptacle
Specifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2305006EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Country of Origin | United States |
| Width | 10.79 in |
| Height | 16.87 in |
| Product Certifications | CSA |
| Disconnector Device Type | non-fusible disconnect |
| Range Of Product | Square D |
| Device Mounting | surface |
| Maximum Short-Circuit Current | 10 kA |
| Product Or Component Type | Receptacle Switch |
| Phase | 3 phase |
| Product Destination | wiring connection APJ6485 Crouse-Hinds Arktite |
| Nema Degree Of Protection | NEMA 3/3R/4/4X/5/12 stainless steel 304 |
| Electrical Connection | receptacle |
| Line Rated Current | 60 A |
| Awg Gauge |
|
| Wiring Configuration | 4-wire |
| Number Of Poles | 3 |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Height | 16.87 in |
| Tightening Torque |
|
| Width | 10.79 in |
| Depth | 5.11 in |
