CHOMT1515250CP

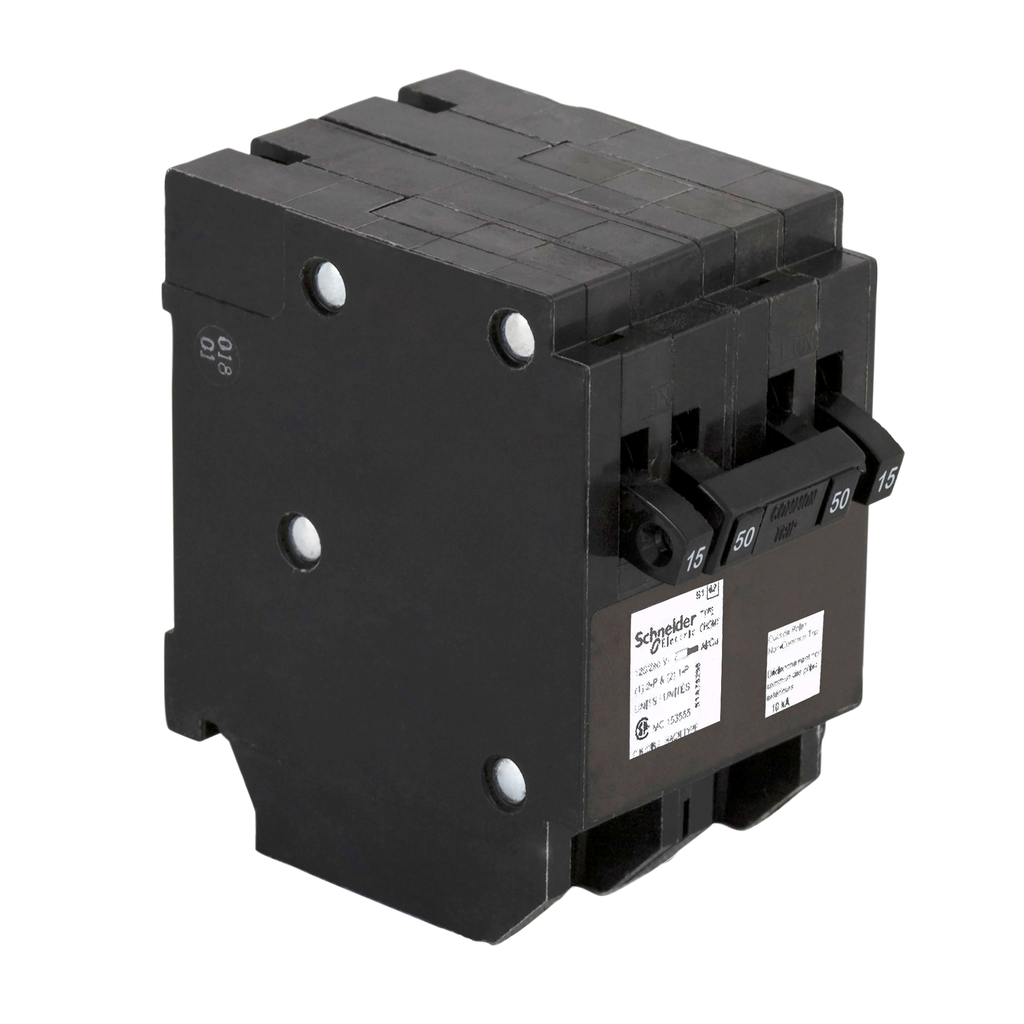

HOMELINE CIRCUIT BREAKER 120V 15A&50A QUAD
Specifications
| Country of Origin | Mexico |
|---|---|
| Circuit Breaker Type | quad |
| Range Of Product | Homeline |
| Product Or Component Type | miniature circuit-breaker |
| Circuit Breaker Application | HACR rated |
| Mounting Mode | plug-on |
| Short-Circuit Current | 10 kA |
| Electrical Connection | screw clamp terminals |
| Line Rated Current |
|
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1308001EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Product Certifications | CSA |
| Ambient Air Temperature For Operation | 40 °C |
| Number Of Spaces Required | 2 |
| Awg Gauge | AWG 12...AWG 6 aluminium/copper |
