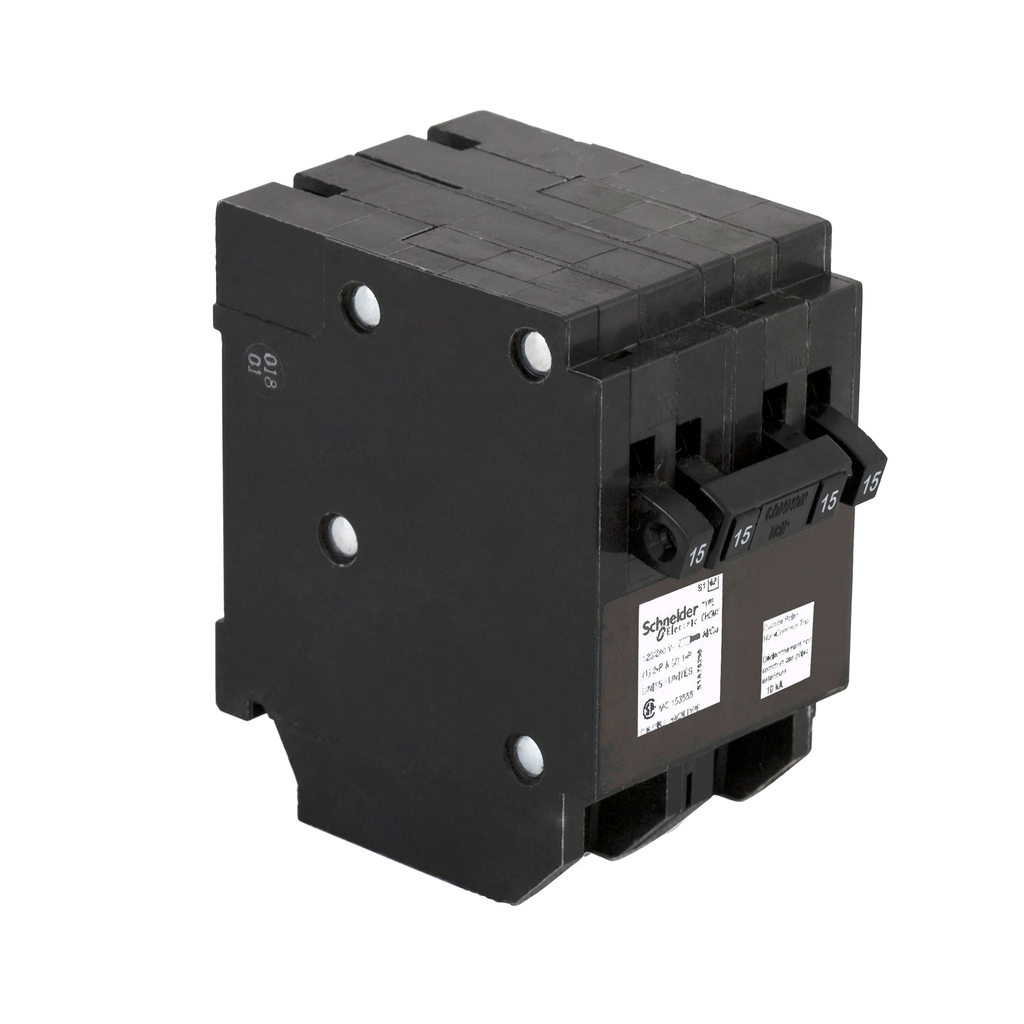

Quad tandem circuit breaker, Homeline, 2 x 1 pole at 15A, 1 x 2 pole at 15A, 120/240VAC, 10kA AIR, plug in, UL
CHOMT Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This CHOMT circuit breaker is a quad tandem breaker. This quad tandem breaker occupies two CHOM pole spaces. This breaker consists of a two pole breaker in the middle and a single breaker on each side. It provides a standard circuit protection and is HACR rated. The two pole breaker is rated 15A at 120/240VAC and the single pole breakers are rated 15A and 15A at 120/240VAC. This circuit breaker provides 10kA breaking capacity. This quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. CHOMT tandem breakers are CSA certified. They are contractor packed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Range Of Product | Homeline |
| Product Or Component Type | miniature circuit-breaker |
| Circuit Breaker Application | HACR rated |
| Mounting Mode | plug-on |
| Short-Circuit Current | 10 kA |
| Electrical Connection | screw clamp terminals |
| Line Rated Current | 15 A |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Number Of Spaces Required | 2 |
| Awg Gauge | AWG 14...AWG 8 aluminium/copper |
| Product Certifications | CSA |
| Ambient Air Temperature For Operation | 40 °C |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
