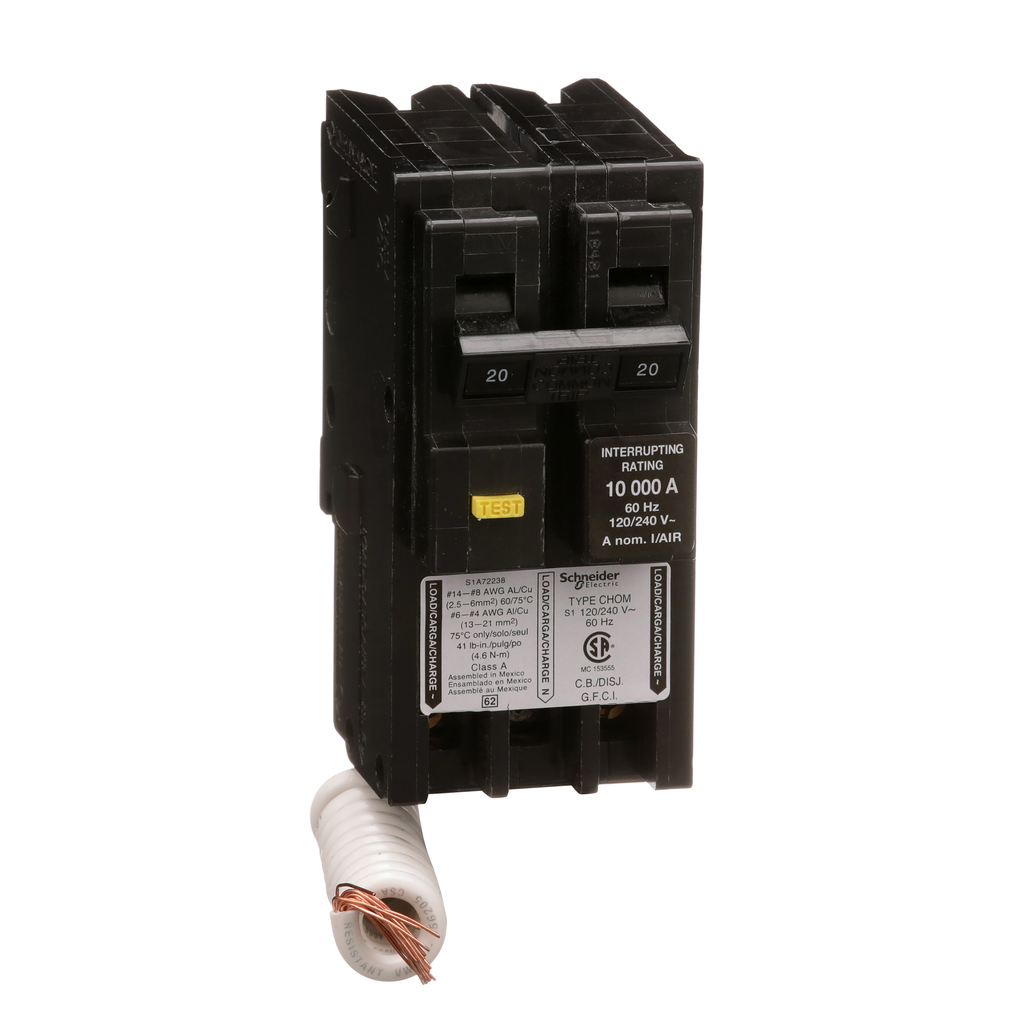

CHOM220GFI
Mini circuit breaker, Homeline, 20A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL
Homeline® miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212006 |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2212006 |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Country of Origin | Mexico |
| Circuit Breaker Type | ground fault protecting class A 6 mA |
| Range Of Product | Homeline |
| Product Or Component Type | miniature circuit-breaker |
| Circuit Breaker Application | HACR rated |
| Mounting Mode | plug-on |
| Short-Circuit Current | 10 kA |
| Poles Description | 2P |
| Electrical Connection | screw clamp terminals |
| Line Rated Current | 20 A |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Number Of Spaces Required | 2 |
| Awg Gauge | AWG 12...AWG 4 aluminium/copper |
| Product Certifications | CSA |
| Ambient Air Temperature For Operation | 40 °C |
