CHOM120PDF

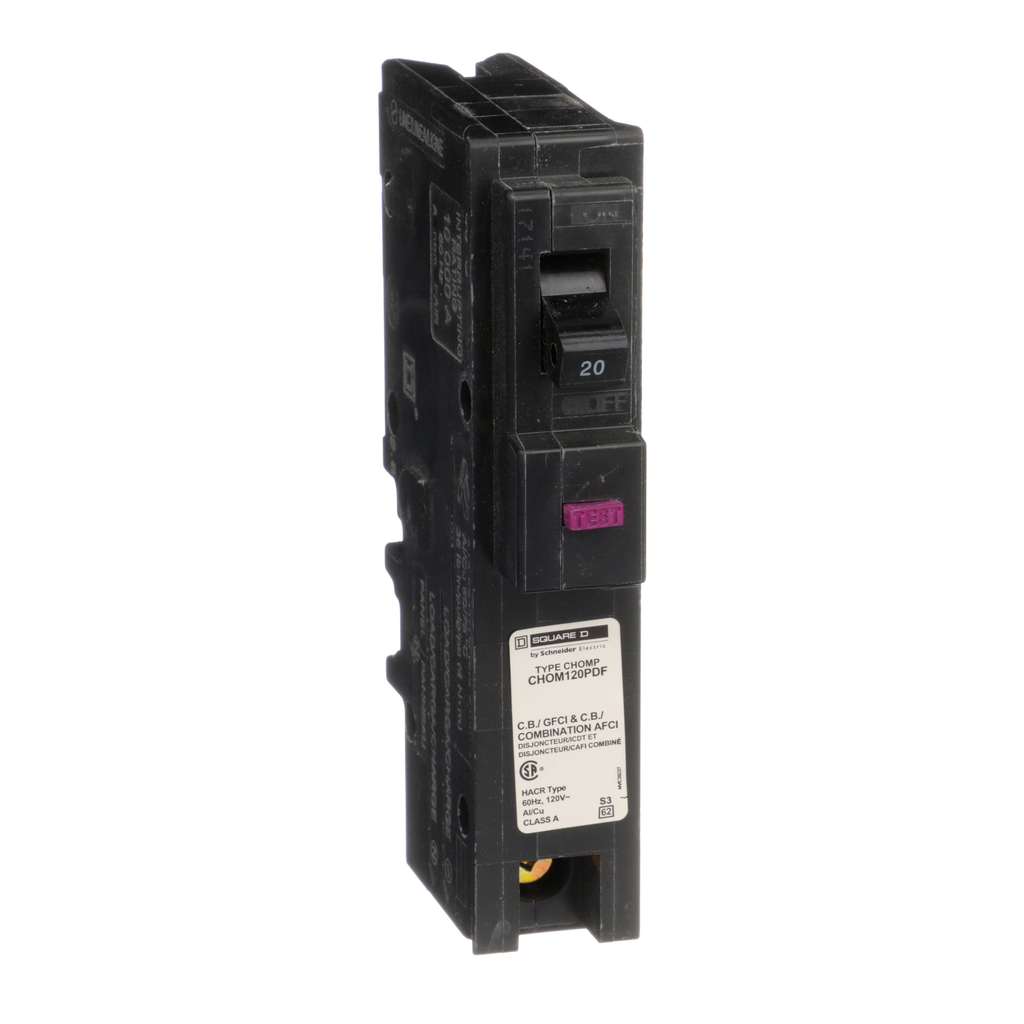

Mini circuit breaker, Homeline, 20A, 1 pole, 120VAC, 10kA AIR, combo ARC/ground fault, plug on neutral, plug in, UL
CHOM Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. CHOM breakers provide 10kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. It includes a Dual Function feature with plug on neutral. CHOM Homeline miniature circuit breakers are CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212006 |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2212006 |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Country of Origin | Mexico |
| Connections - Terminals | plug-on neutral |
| Circuit Breaker Type |
|
| Range Of Product | Homeline |
| Product Or Component Type | miniature circuit-breaker |
| Mounting Mode | plug-on |
| Short-Circuit Current | 10 kA |
| Line Rated Current | 20 A |
| [Ue] Rated Operational Voltage | 120 V AC |
| Product Certifications | CSA |
| Ambient Air Temperature For Operation | 40 °C |
| Number Of Spaces Required | 1 |
