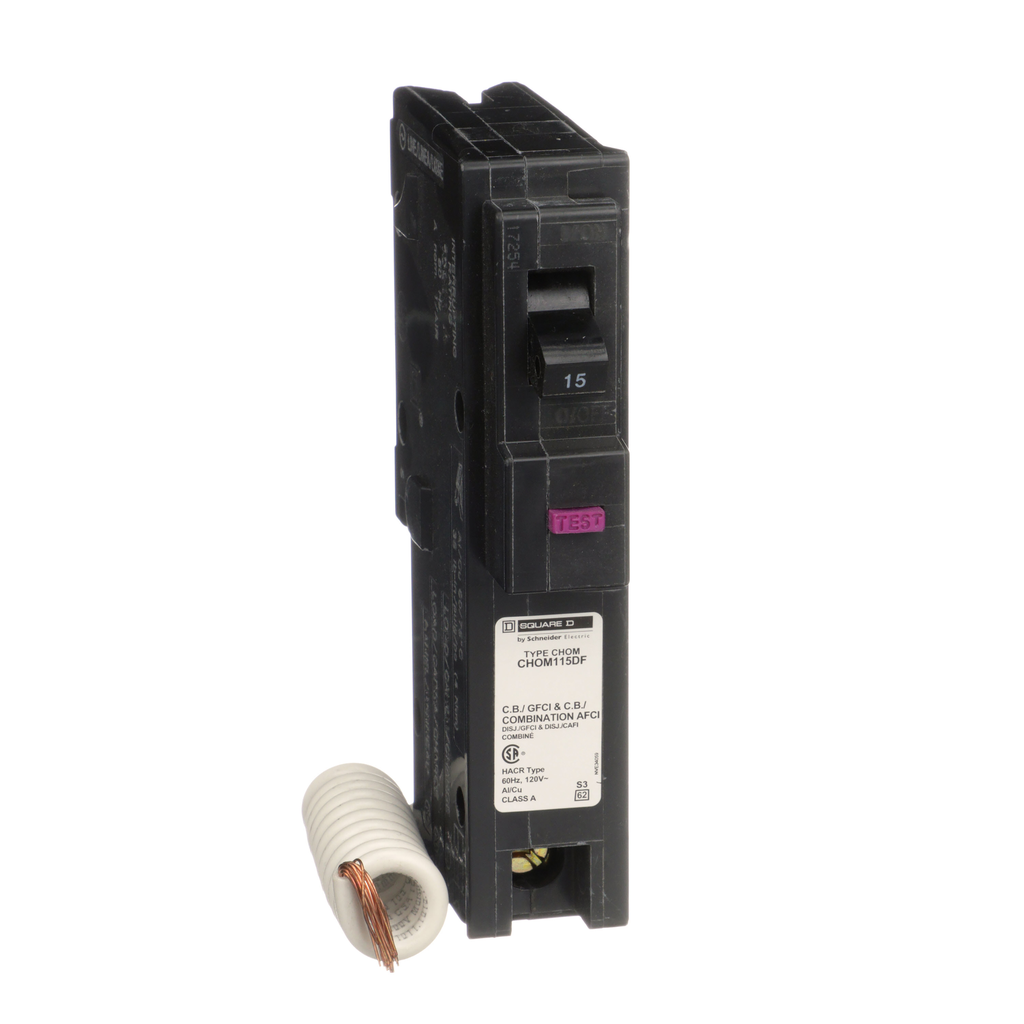

CHOM115DF
Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC, 10kA AIR, combo ARC/ground fault, plug in, UL
Homeline® miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120 VAC. HOM breakers provide 10 kA breaking capacity.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212006 |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2212006 |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Country of Origin | United States |
| Connections - Terminals | pigtail neutral |
| Circuit Breaker Type |
|
| Range Of Product | Homeline |
| Product Or Component Type | miniature circuit-breaker |
| Mounting Mode | plug-on |
| Short-Circuit Current | 10 kA |
| Poles Description | 1P |
| Electrical Connection |
|
| Line Rated Current | 15 A |
| [Ue] Rated Operational Voltage | 120 V AC |
| Product Certifications | CSA |
| Ambient Air Temperature For Operation | 40 °C |
| Number Of Spaces Required | 1 |
