CHGP605638200

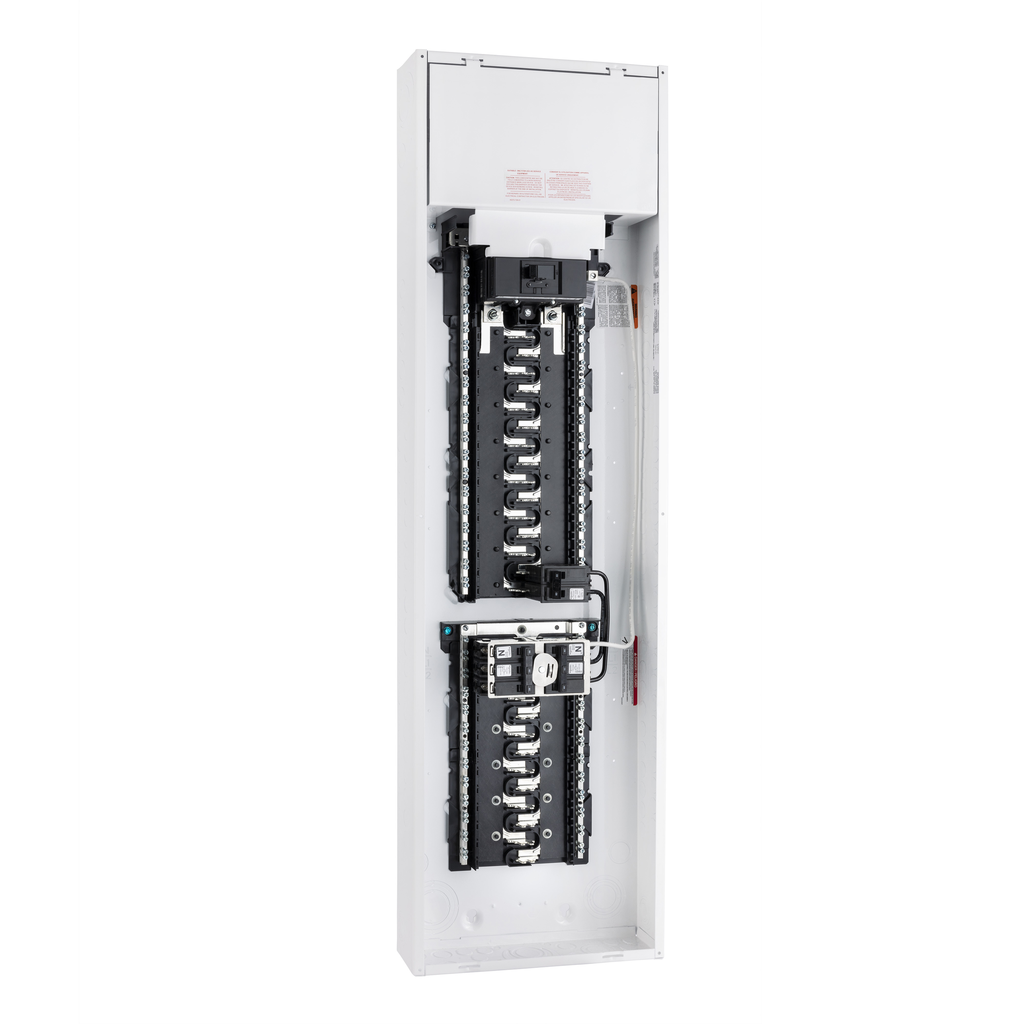

Generator panel, Homeline, 68 spaces, 200A main breaker, NEMA1, CSA
The Homeline® loadcenter offer features Homeline®circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Width | 362 mm |
| Height | 1235 mm |
| Range Of Product | Homeline |
| Provided Equipment | circuit-breaker 3 ) |
| Product Or Component Type |
|
| Number Of Circuits | 94 |
| Number Of Spaces | 68 |
| Nema Degree Of Protection | NEMA 1 indoor enclosure |
| Line Rated Current |
|
| Load Center Type | main breaker |
| Height | 1235 mm |
| Short-Circuit Current | 22 kA |
| Width | 362 mm |
| Depth | 95 mm |
| Box Number | 25 |
| Ambient Air Temperature For Operation |
|
