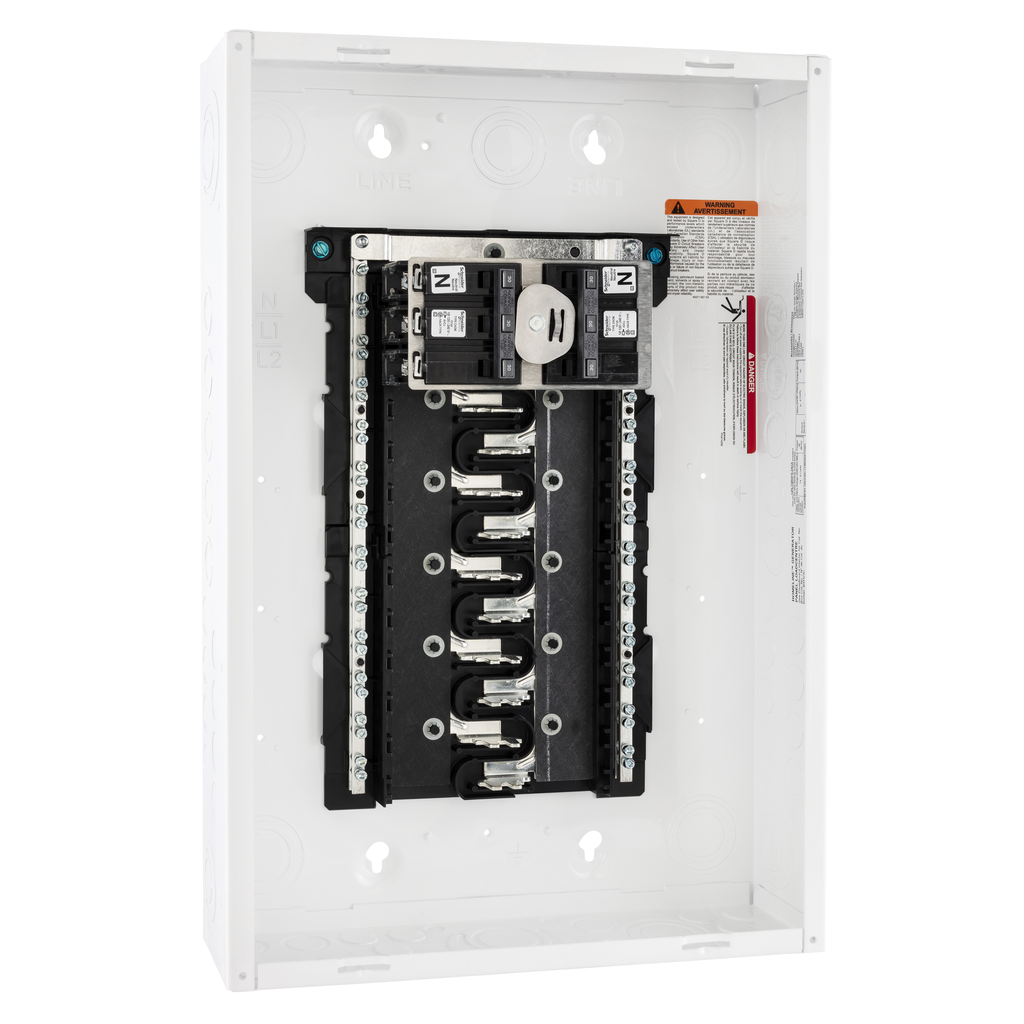

CHGP6038
Generator panel, Homeline, 20 spaces, 38 circuits, 60A main breaker, NEMA1
The Homeline® loadcenter offer features Homeline®circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Width | 362 mm |
| Height | 531 mm |
| Range Of Product | Homeline |
| Provided Equipment | circuit-breaker 2 ) |
| Product Or Component Type | panel |
| Number Of Circuits | 38 |
| Number Of Spaces | 20 |
| Nema Degree Of Protection | NEMA 1 indoor enclosure |
| Line Rated Current | 60 A |
| Load Center Type | main breaker |
| Height | 531 mm |
| [Ue] Rated Operational Voltage | 240 V AC |
| Short-Circuit Current | 10 kA |
| Width | 362 mm |
| Depth | 95 mm |
| Box Number | 7 |
| Product Certifications | CSA |
| Ambient Air Temperature For Operation |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
