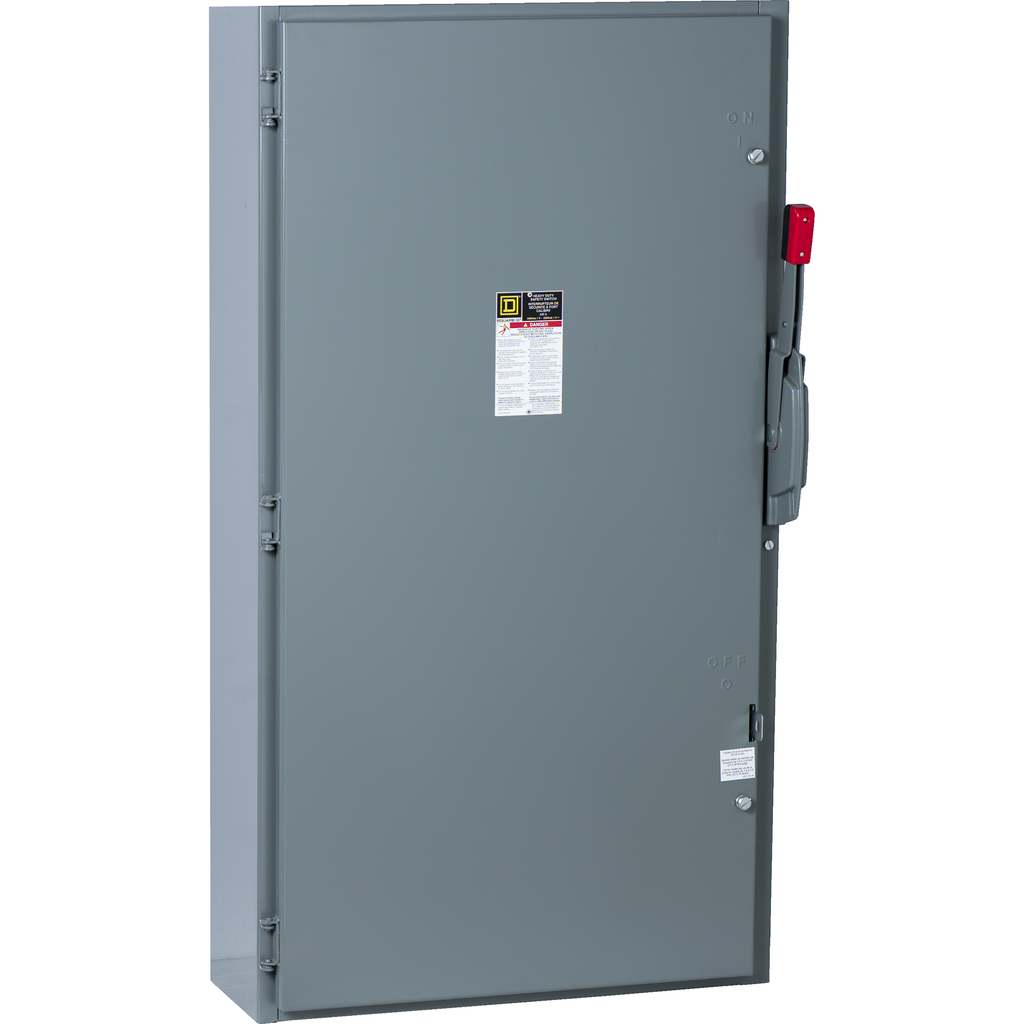

CH326N
Safety switch, heavy duty, fusible, 600A, 240 VAC/250VDC, 3 poles, 200hp, NEMA 1, neutral
Specifications
| Product Certifications | CSA |
|---|---|
| Nema Degree Of Protection | NEMA 1 galvannealed steel |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1404026EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Height | 50.25 in |
| Device Mounting | surface |
| Tightening Torque | 375-375 lbf.in (AWG 3/0...500 kcmil) |
| Line Rated Current | 600 A |
| Awg Gauge | AWG 3/0...500 kcmil copper or aluminium |
| Width | 27.63 in |
| Depth | 10.13 in |
| Device Composition | neutral (factory installed) |
| [Ue] Rated Operational Voltage |
|
| Country of Origin | Mexico |
| Width | 27.63 in |
| Height | 50.25 in |
| Disconnector Device Type | fusible disconnect |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Electrical Connection | lugs |
| Number Of Poles | 3 |
