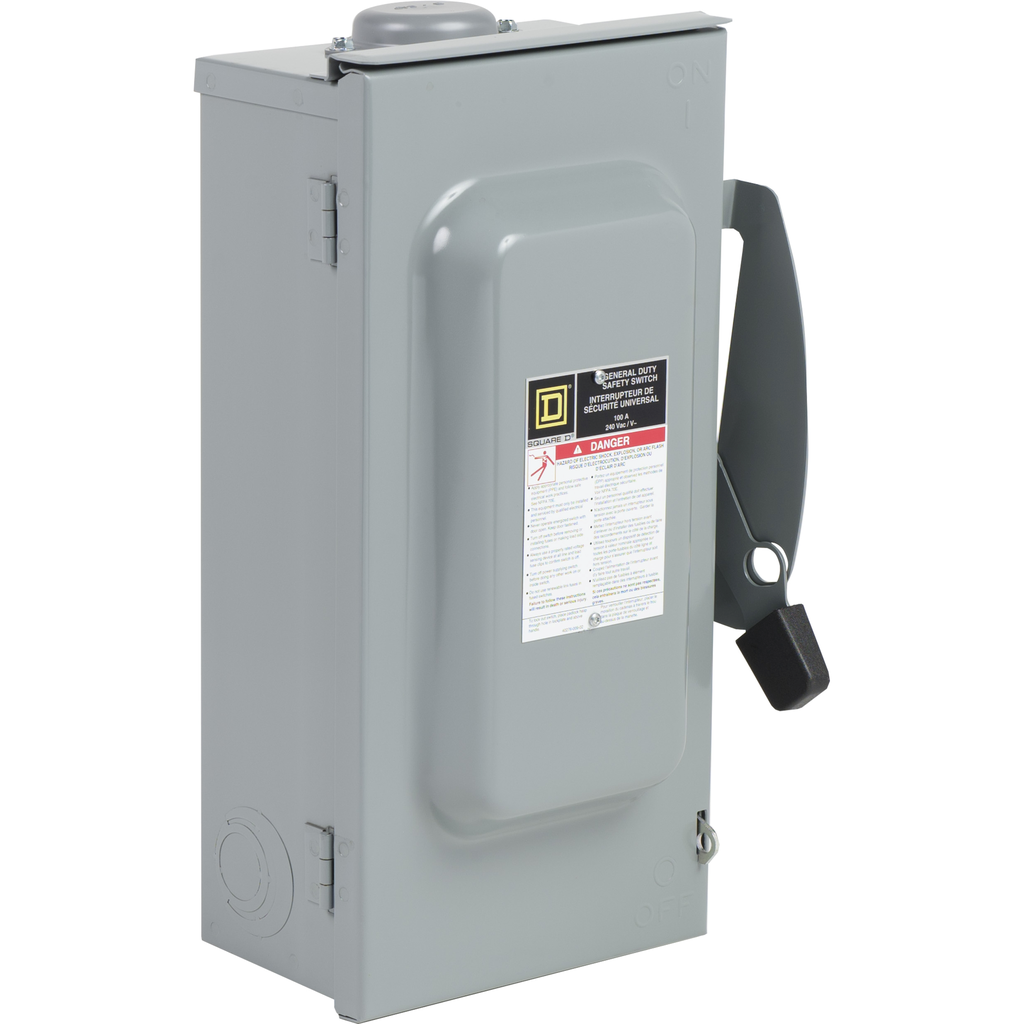

Safety switch, general duty, fusible, 100A, 120/240 VAC, 3 poles, 30 hp, solid neutral, NEMA 3R with bolt on hub
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 60A with a NEMA 3R degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 3-pole, 240VAC has a short curcuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 12 AWG 3, aluminium & AWG 14 AWG 3, copper. This switch is certified to UL standards Dinemsions for this product are 14.88 in (H), 7.45 in (W), 4.87 in (D). General Duty safety switchs come with an 18 months warranty.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | CSA |
|---|---|
| Nema Degree Of Protection | NEMA 3R galvannealed steel |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2305006EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Disconnector Device Type | fusible disconnect |
| Height | 17.5 in |
| Device Mounting | surface |
| Tightening Torque |
|
| Short-Circuit Current | 100 kA maximum cartridge |
| Electrical Connection | lugs |
| Awg Gauge |
|
| Width | 10.5 in |
| Depth | 6.5 in |
| Device Composition | neutral (factory installed) |
| Number Of Poles | 3 |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Country of Origin | United States |
| Width | 10.5 in |
| Height | 17.5 in |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | general duty |
