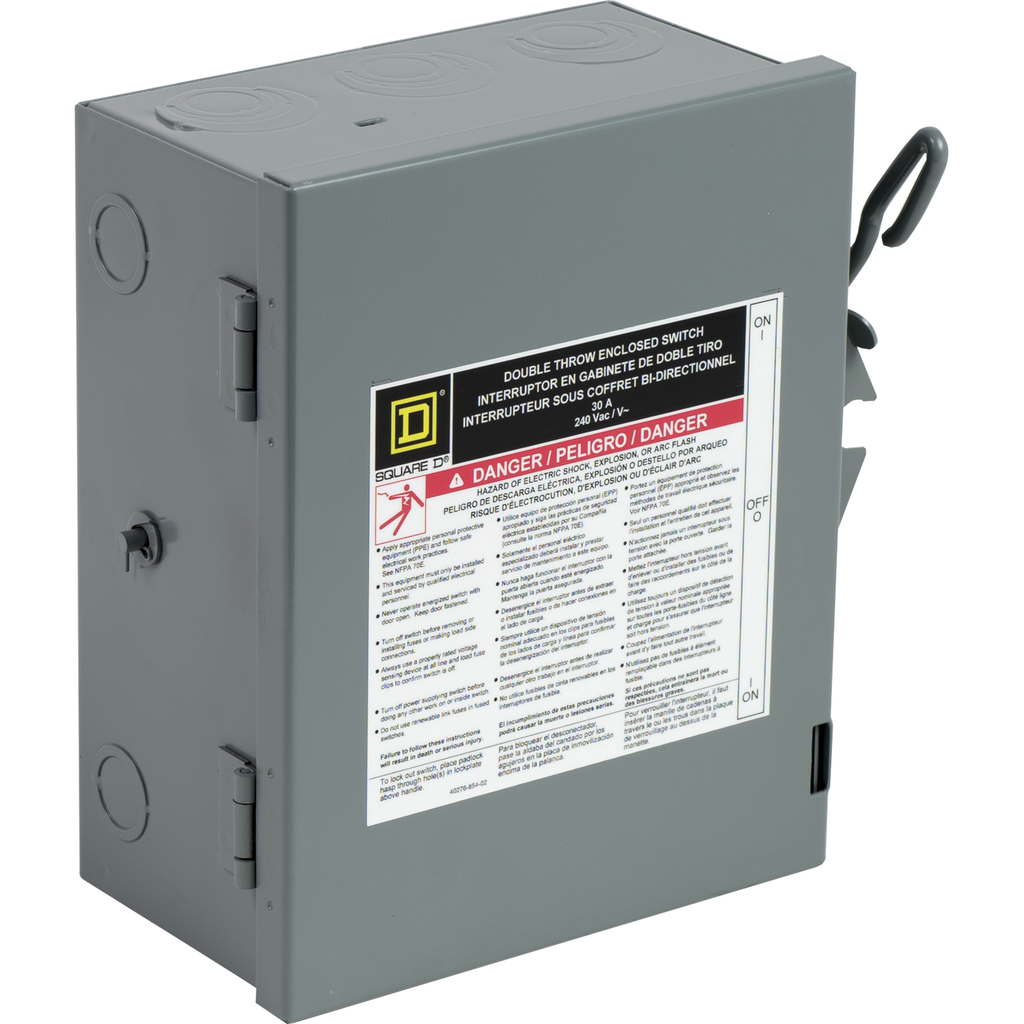

C92351 - Safety switch, double throw, non fusible, 30A, 240 VAC, 3 poles, NEMA 1

C92351

Add to Quote Catalogue

China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	N/A
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1307076EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Country of Origin	Mexico
Width	7.5 in
Height	9.5 in
Product Certifications	CSA
Disconnector Device Type	non-fusible disconnect
Device Mounting	surface
Nema Degree Of Protection	NEMA 1 galvannealed steel
Line Rated Current	30 A
Product Or Component Type	Double Throw Safety Switch
Awg Gauge	AWG 12...AWG 2 aluminium AWG 14...AWG 2 copper
Number Of Poles	3
[Ue] Rated Operational Voltage	250 V DC 240 V AC
Height	9.5 in
Tightening Torque	45-45 lbf.in 13.3-13.3 mm² (AWG 6) 40-40 lbf.in 8.367-8.367 mm² (AWG 8) 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Width	7.5 in
Depth	4.25 in
