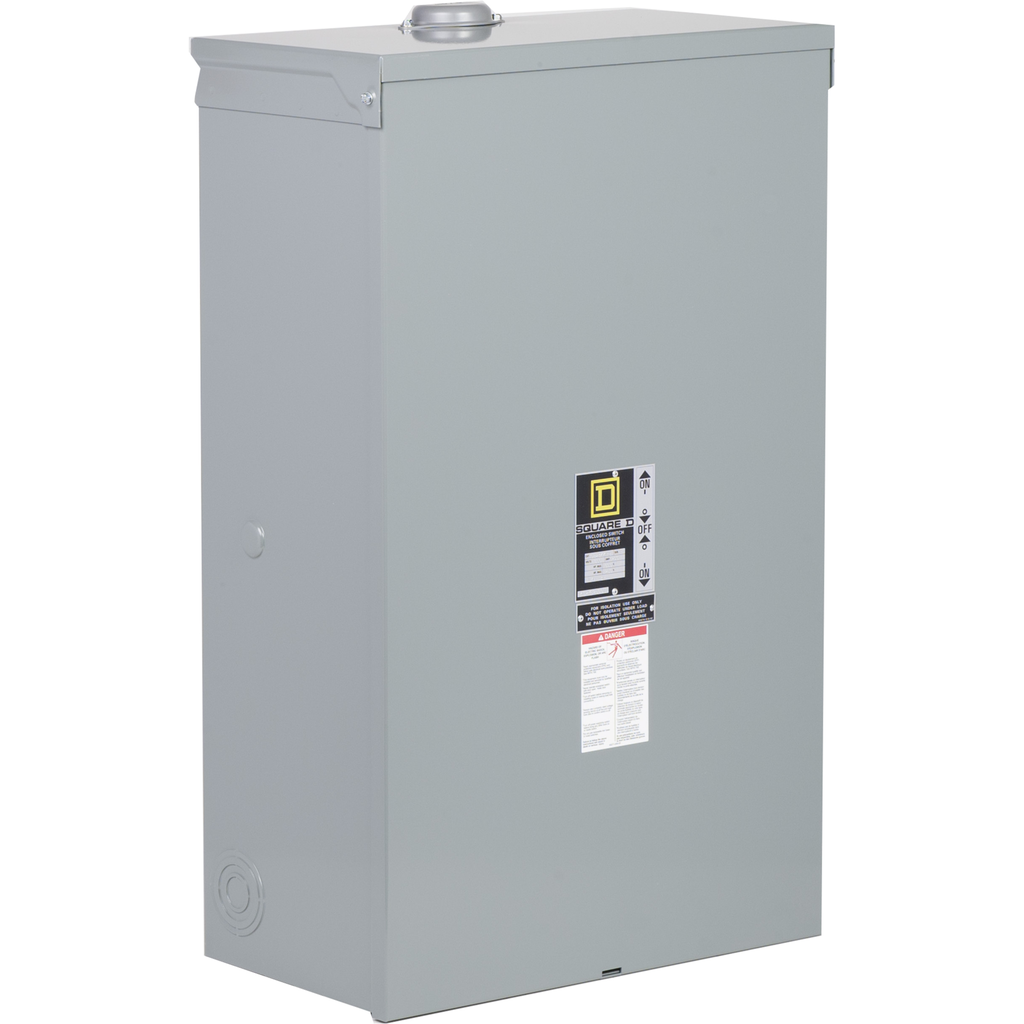

C82344RB
Safety switch, double throw, non fusible, 200A, 480VAC, 250VDC, 3 poles, 15HP, NEMA 3R with bolt on hub provision
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch. Some key features are their quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. These double throw safety switches are able transfer a load from one power source to alternative power source economically. They adhere to the datasheet spectifications and have been certified by UL.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | 32.5 in |
|---|---|
| Tightening Torque | 275-275 lbf.in 13.30-127 mm² (AWG 6...250 kcmil) |
| Width | 24 in |
| Depth | 10.63 in |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1307076EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Country of Origin | Mexico |
| Width | 24 in |
| Height | 32.5 in |
| Product Certifications | CSA |
| Disconnector Device Type | non-fusible disconnect |
| Device Mounting | surface |
| Product Or Component Type | Double Throw Safety Switch |
| Nema Degree Of Protection | NEMA 3R galvannealed steel |
| Line Rated Current | 200 A |
| Awg Gauge | AWG 6...300 kcmil copper or aluminium |
| Number Of Poles | 3 |
| [Ue] Rated Operational Voltage |
|
