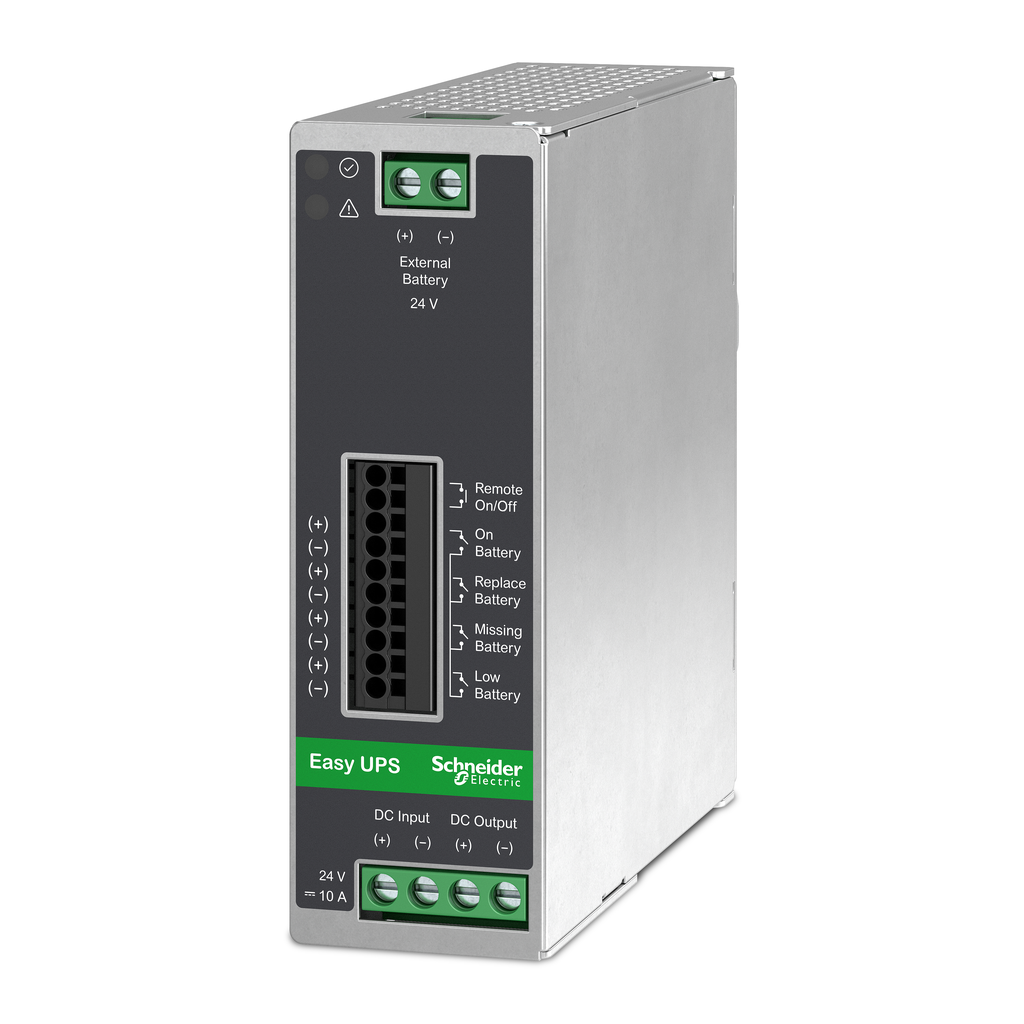

BVS240XDPDR
Easy UPS control module, 24V DC-DC, DIN Rail, Industrial, 10A
The Industrial UPS 24V DC DIN Rail is a part of the Schneider Electric's Easy UPS family. This model is a 240W UPS that offers DC input to DC output for industrial equipment support. It features 0-5V signaling relay contacts, up to 4 total external battery pack support, LED indicators and EPO switch for better control over the indutrial controls infrastructure. It comes with a 2-year standard warranty.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Standards |
|
| Warranty | 2 Years repair or replace |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1712010_EN |
| Sustainable Offer Status | Green Premium product |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1712010_EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 129 mm |
| Net Weight | 0.5 kg |
| Mounting Mode | DIN Rail Mount |
| Mounting Position | horizontal |
| Color | metal grey |
| Width | 40 mm |
| Depth | 119 mm |
| Efficiency At Full Load | 21.6...28.8 V 24 V DC |
| Input Protection Type |
|
| Efficiency At Full Load | 95 % |
| Maximum Output Current | 10 A |
| Battery Voltage | 24 V |
| Battery Type | external battery system |
| Storage Relative Humidity | 0-95 % non-condensing |
| Ambient Air Temperature For Operation | -15-50 °C |
| Storage Altitude | 0-3000 m |
| Ip Degree Of Protection | IP20 |
| Ambient Air Temperature For Storage | -15-70 °C |
| Relative Humidity | 0-95 % non-condensing |
| Acoustic Level | 40 dB |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Lead Time | Usually in Stock |
| Provided Equipment | User Manual |
| Country of Origin | China |
| Width | 40 mm |
| Height | 129 mm |
| Weight | 0.5 kg |
| Connections - Terminals | 1 2 pins |
| Product Or Component Type | uninterruptible power supply (UPS) |
| Main Input Voltage | 24 V DC |
| Kw Rating | 240 W |
