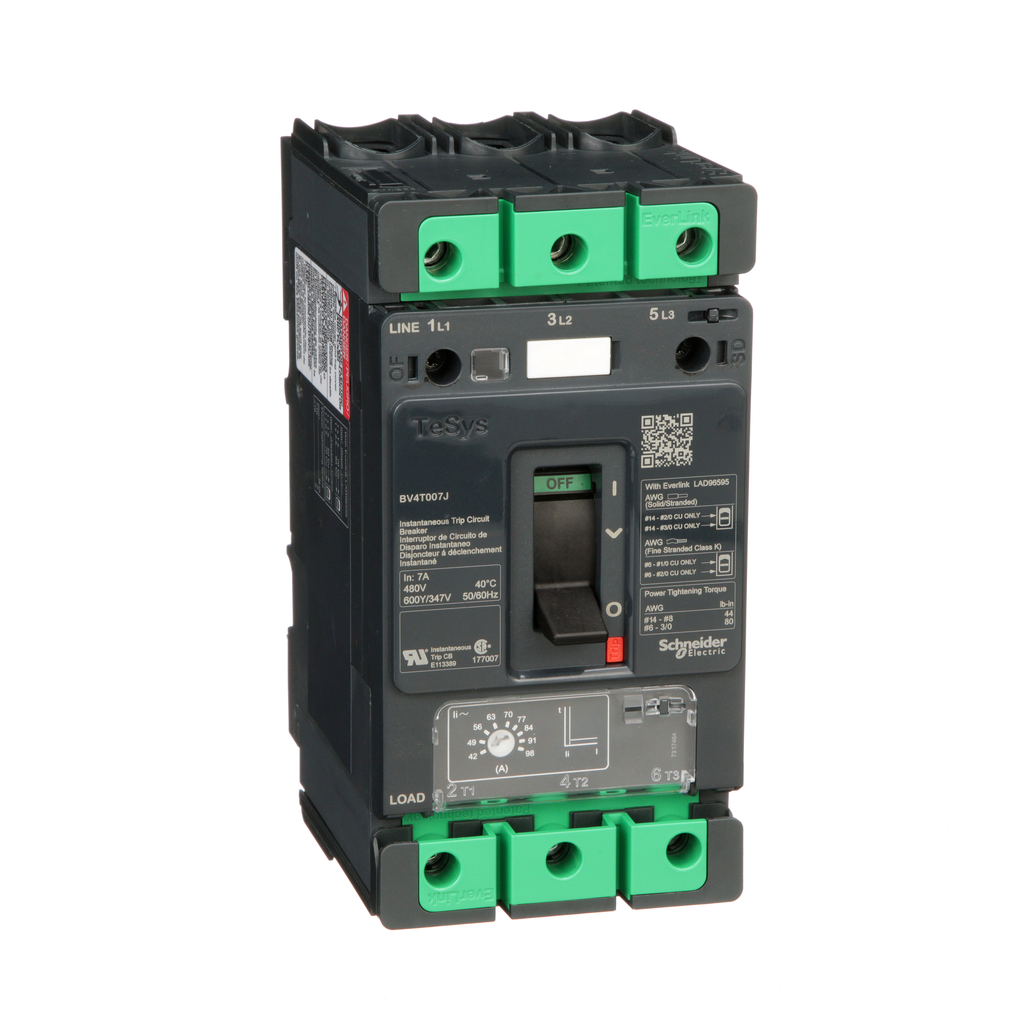

The TeSys BV4 motor circuit protector allows for compact motor protection in conjunction with both the TeSys and Square D NEMA product families for motor control. These protectors have UL508 type D combination ratings in accordance to current NEC installation requirements The BV4 is a magnetic only protector. It is a UL489 Listed circuit protector rated up to 100kA short circuit protection rating per a listed combination motor controller rating. This 3 pole motor circuit protector with high fault has a 7A rating. It also has an adjustable instantaneous trip rating of 42 to 98 amperes. BV4 protectors have wiring terminals with the EverLink patented technology. These terminals reduce the risk of loose bare cables due to copper creeping. Vibration withstand is improved and periodic retightening is no longer needed. BV4 motor circuit protectors can be installed directly to a panel or on standard DIN rail. This circuit protector is 6.38 inches tall, 3.19 inches wide and 4.57 inches deep. This motor circuit protector is UL Listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueLine Rated Current | 7 A 40 °C |
---|---|
Product Or Component Type | Motor Circuit Protector |
Product Name | TeSys BV4 |
Performance Level | high performance |
Range | TeSys |
Control Type | toggle |
Utilisation Category | category A |
Trip Unit Rating | 42-98 A 40 °C |
Poles Description | 3P |
Protection Type | short-circuit |
Device Application | motor |
Device Short Name | BV4 |
Trip Unit Technology | magnetic |
[Ue] Rated Operational Voltage | 600Y/347 V AC 50/60 Hz |
Height | 162 mm |
Connection Pitch | 27 mm |
Tightening Torque |
|
Mounting Support |
|
Number Of Slots |
|
Net Weight | 1.5 kg |
Connections - Terminals |
|
Electrical Durability |
|
Wire Stripping Length | 20 mm |
Mounting Mode |
|
Local Signalling | for presence of auxiliary contacts flag (green) |
Mechanical Durability | 40000 cycles |
Quantity Per Set | 1 |
Color | Gray RAL 7016) |
Width | 81 mm |
Depth | 116 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1704004EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI1704004EN |
Eu Rohs Directive | Compliant |
Halogen Content Performance | Halogen free plastic parts product |
Product Certifications |
|
Ik Degree Of Protection | IK07 IEC 62262 |
Mechanical Robustness |
|
Ambient Air Temperature For Operation | -25-70 °C |
Standards |
|
Ip Degree Of Protection | IP40 front face IEC 60529 |
Ambient Air Temperature For Storage | -50-85 °C |
Operating Altitude |
|
