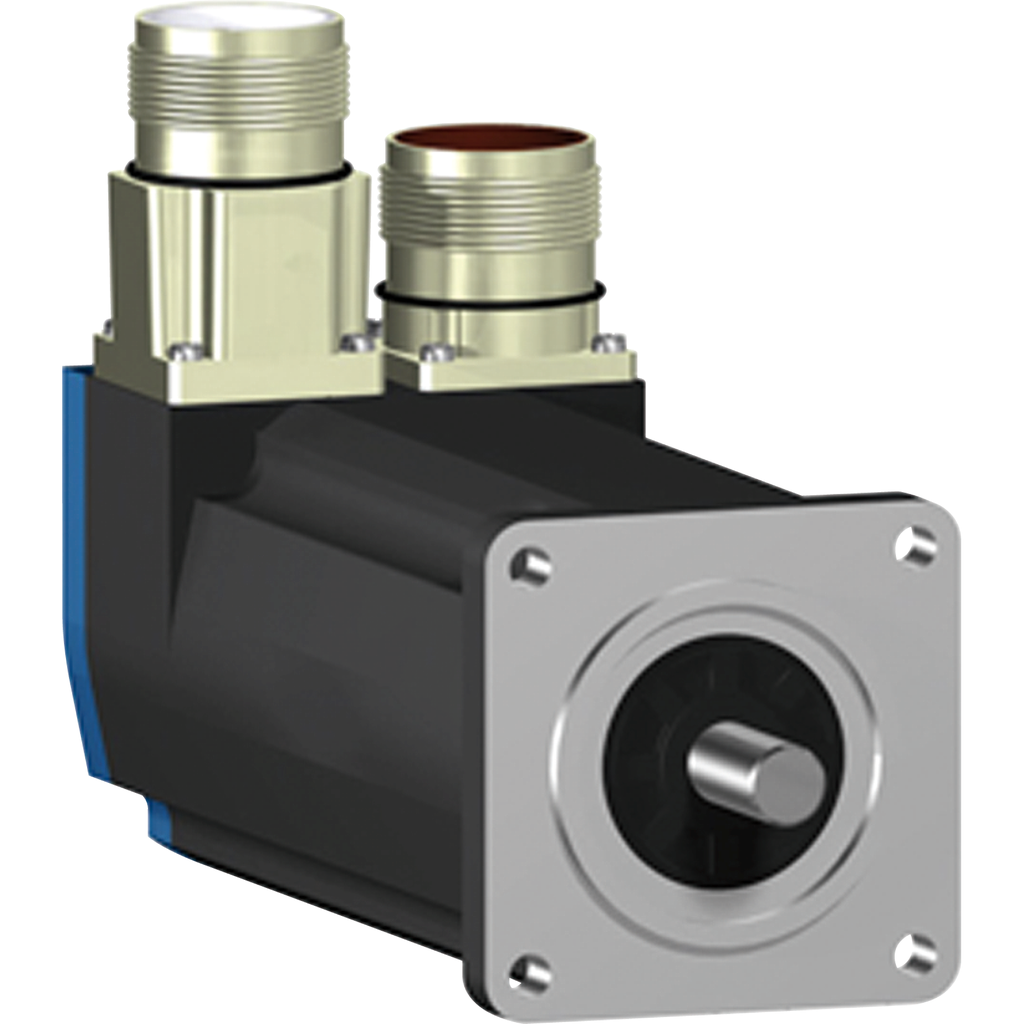

BSH0551P01A1A - servo motor BSH, Lexium 15, 0.5N.m, 4000rpm, 55mm, untapped shaft, Sincos single turn, without brake, IP50, straight

BSH0551P01A1A

servo motor BSH, Lexium 15, 0.5N.m, 4000rpm, 55mm, untapped shaft, Sincos single turn, without brake, IP50, straight

Add to Quote Catalogue

Specifications

Country of Origin	Germany
Length	132.5 mm
Weight	1.2 kg
Maximum Mechanical Speed	9000 rpm
Mounting Support	international standard flange
Holding Brake	without
Speed Feedback Resolution	131072 points/turn
Product Or Component Type	servo motor
Nominal Output Power	300 W LXM32.U60N4 1.5 A, 400 V, three phase 300 W LXM32.U60N4 1.5 A, 480 V, three phase 170 W LXM15LD13M3, 230 V, single phase 170 W LXM15LU60N4, 230 V, three phase
Peak Stall Torque	1.5 N.m LXM32.U60N4 1.5 A, 400 V, three phase 1.5 N.m LXM32.U60N4 1.5 A, 480 V, three phase 1.4 N.m LXM15LD13M3, 230 V, single phase 1.4 N.m LXM15LU60N4, 230 V, three phase
Product Compatibility	LXM15LD13M3 230 V single phase LXM15LU60N4 230 V three phase LXM32.U60N4 400 V three phase LXM32.U60N4 480 V three phase
Ip Degree Of Protection	IP50 standard
Shaft End	untapped
Nominal Speed	6000 rpm LXM32.U60N4 1.5 A, 400 V, three phase 6000 rpm LXM32.U60N4 1.5 A, 480 V, three phase 4000 rpm LXM15LD13M3, 230 V, single phase 4000 rpm LXM15LU60N4, 230 V, three phase
Electrical Connection	straight connectors
Nominal Torque	0.48 N.m LXM32.U60N4 1.5 A, 400 V, three phase 0.48 N.m LXM32.U60N4 1.5 A, 480 V, three phase 0.46 N.m LXM15LD13M3, 230 V, single phase 0.46 N.m LXM15LU60N4, 230 V, three phase
Device Short Name	BSH
Continuous Stall Torque	0.5 N.m LXM32.U60N4 1.5 A, 400 V, three phase 0.5 N.m LXM32.U60N4 1.5 A, 480 V, three phase 0.5 N.m LXM15LD13M3, 230 V, single phase 0.5 N.m LXM15LU60N4, 230 V, three phase
Circle Diameter Of The Mounting Holes	63 mm
Maximum Permanent Current	2.9 A
Continuous Power	0.45 W
Switching Frequency	8 kHz
Stator Electrical Time Constant	1.09 ms 20 °C
Maximum Radial Force Fr	170 N 8000 rpm 180 N 7000 rpm 190 N 6000 rpm 200 N 5000 rpm 220 N 4000 rpm 240 N 3000 rpm 270 N 2000 rpm 340 N 1000 rpm
Number Of Motor Stacks	1
Rotor Inertia	0.059 kg.cm²
Number Of Motor Poles	6
Back Emf Constant	40 V/krpm 120 °C
Maximum Axial Force Fa	0.2 x Fr
Centring Collar Depth	2 mm
Second Shaft	without second shaft end
Shaft Length	20 mm
Phase	three phase
Length	132.5 mm
Maximum Current Irms	3.5 A LXM15LD13M3 3.5 A LXM15LU60N4 2.9 A LXM32.U60N4
Net Weight	1.2 kg
Centring Collar Diameter	40 mm
Stator Inductance	71.5 mH 20 °C
Motor Flange Size	55 mm
[Us] Rated Supply Voltage	480 V
Number Of Mounting Holes	4
Shaft Diameter	9 mm
Mounting Holes Diameter	5.5 mm
Type Of Cooling	natural convection
Feedback Type	single turn SinCos Hiperface
Stator Resistance	41.8 Ohm 20 °C
Range Compatibility	Lexium 32 Lexium 15
Continuous Stall Current	0.73 A
Torque Constant	0.7 N.m/A 120 °C
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP111049EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	N/A
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Warranty	18 months
