BR700G

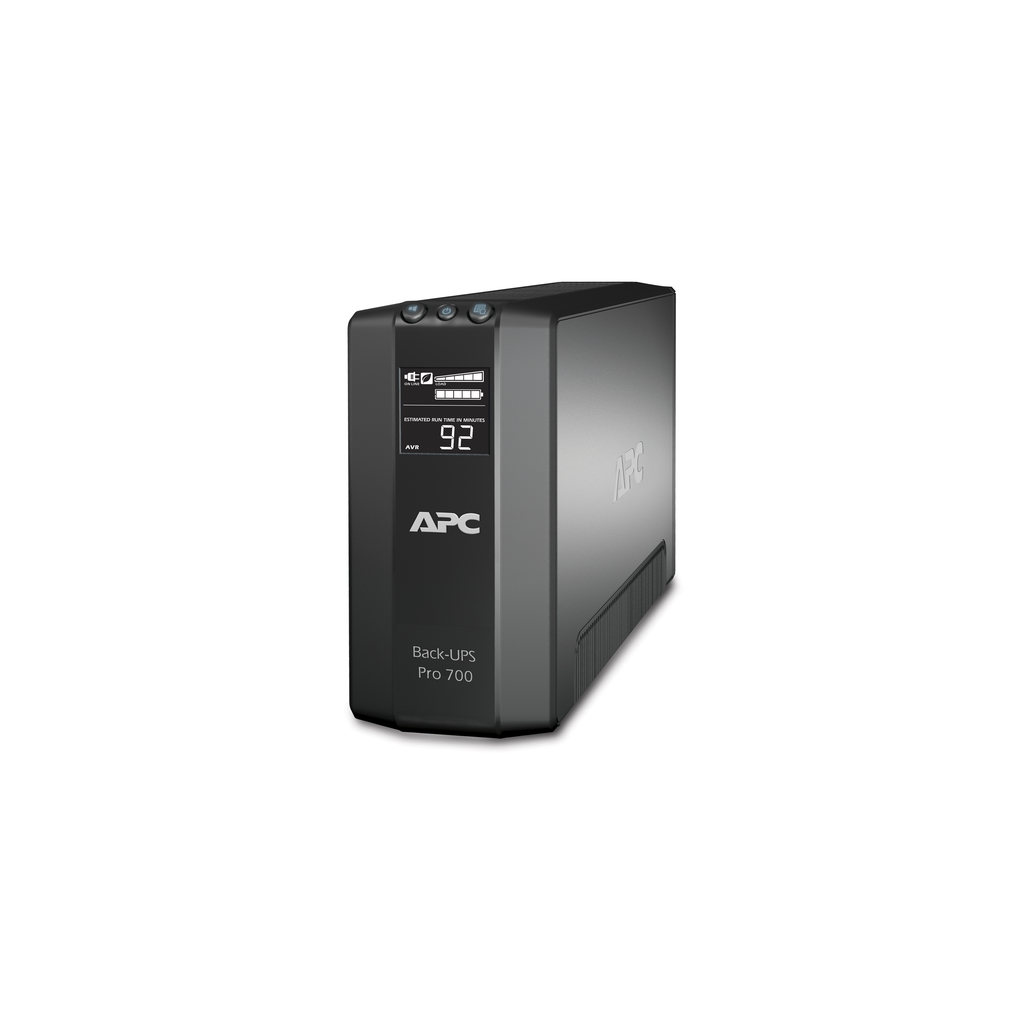

APC Back-UPS Pro, 700VA/420W, Tower, 120V, 6x NEMA 5-15R outlets, AVR, LCD, User Replaceable Battery
This product is part of the Back-UPS Pro range. This 700VA UPS has 6 total outlets, 3 outlets provide UPS power backup and surge protection, 3 outlets offer surge protection only. It features a built-in AVR and a LCD interface with audible alarms. Its dimensions are 7.48 x 3.58 x 12.2 inches and 15.76 lbs. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Data Line Protection | coaxial cable for CATV/SATV/modem/audio-video |
|---|---|
| Product Certifications |
|
| Warranty | 3 years repair or replace |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1712010_EN |
| Sustainable Offer Status | Green Premium product |
| Take-Back | Take-back program available |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Optimized Energy Efficiency | Energy efficient product |
| Energy Star® | ENERGY STAR UPS V2.0 (USA) |
| Circularity Profile | ENVEOLI1712010_EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 19 cm |
| Usb Compatible | Yes |
| Net Weight | 7.15 kg |
| Mounting Mode | not rack-mountable |
| Color | Black |
| Width | 9.1 cm |
| Depth | 31 cm |
| Switching Current Capacity | 15 A |
| Input Frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Efficiency At Full Load | 88...143 V |
| Battery Life | 3-5 year(s) |
| Battery Voltage | 12 V |
| Battery Capacity | 9.0 Ah |
| Storage Relative Humidity | 0-95 % |
| Ambient Air Temperature For Operation | 0-40 °C |
| Storage Altitude | 0-50000 ft |
| Ambient Air Temperature For Storage | -15-45 °C |
| Online Thermal Dissipation | 48.5 Btu/h |
| Relative Humidity | 0-95 % |
| Acoustic Level | 45 dBA |
| Operating Altitude | 0...10000 ft |
| Lead Time | Usually in Stock |
| Provided Equipment |
|
| Country of Origin | Philippines |
| Length | 6 ft |
| Width | 9.1 cm |
| Height | 19 cm |
| Weight | 7.15 kg |
| Cable Length | 6 ft |
| Product Or Component Type | uninterruptible power supply (UPS) |
| Rated Power In Va | 700 VA |
| Main Input Voltage | 120 V |
| Kw Rating | 420 W |
Documents
- Addendum - ENERGY STAR Compliance - JGNY-8YJ5BA_R0_EN (pdf)
- Back-UPS BR700G Specification Sheet - DFAH-8GLRDV_R0_EN (pdf)
- BR700G Specification Sheet - DFAH-84RSGX_R1_EN (pdf)
- Spec Sheet
- Back-UPS Family Brochure (NAM) - JSOS-AS2LKF_R0_EN (pdf)
- Back-UPS Pro Family Specification Sheet (North American units) - DFAH-8GPKXA_R0_EN (pdf)
