BMXXBP0800

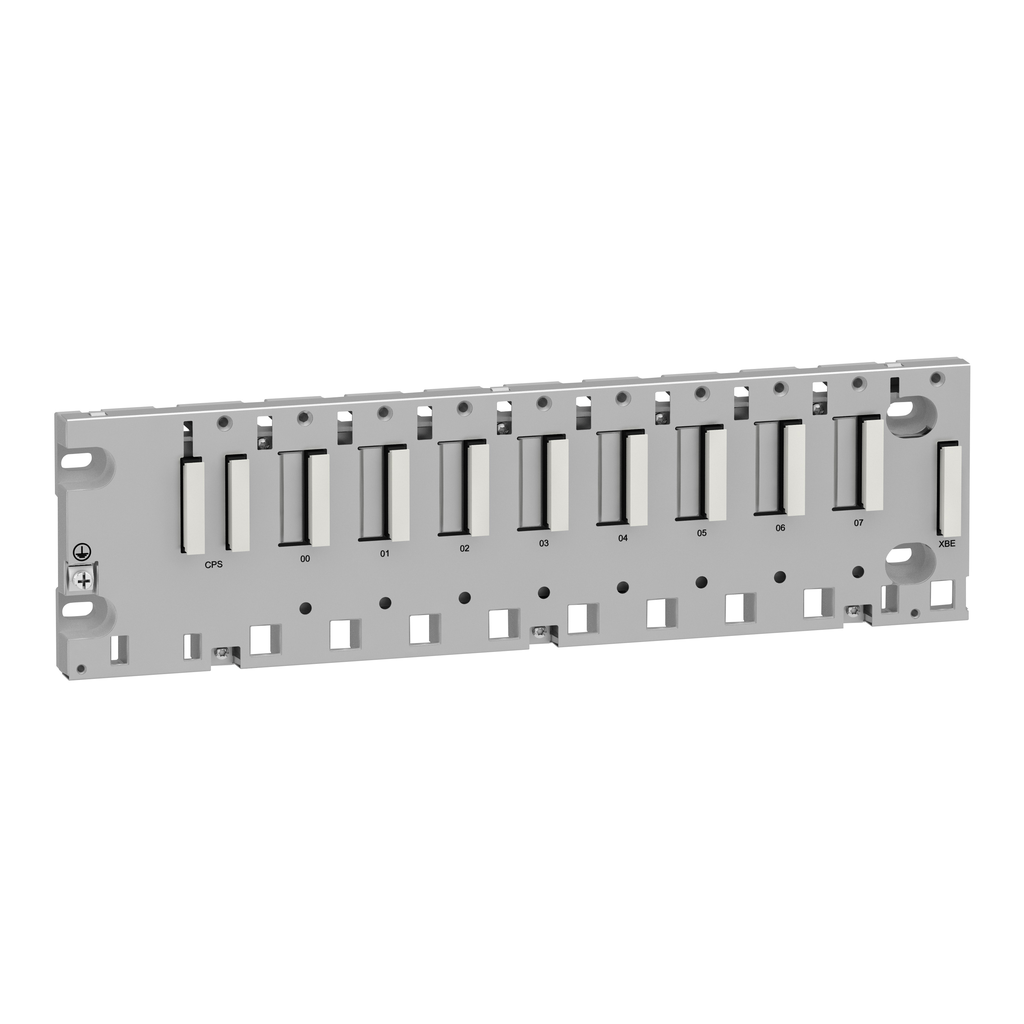

Backplane, Modicon X80, 8 slots, panel, mounitng plate or DIN rail mounting
This 8 slots rack is part of the Modicon X80 modules. Number of slots comprises processor, I/O, communication and application-specific modules (excluding power supply module). This rack can be mounted on DIN rail and its weight is 0.95kg.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | 0-60 °C |
|---|---|
| Standards |
|
| Product Certifications |
|
| Directives |
|
| Relative Humidity | 10-95 % without condensation |
| Ip Degree Of Protection | IP20 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2203018EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2203018EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Fixing Mode |
|
| Height | 103.7 mm |
| Electrical Connection | 1 connector (XBE) expansion module |
| Power Consumption In W | 2.21 W |
| Number Of Slots | 8 bus X |
| Net Weight | 0.95 kg |
| Width | 372.8 mm |
| Depth | 19 mm |
| Product Compatibility |
|
| Country of Origin | France |
| Width | 372.8 mm |
| Height | 103.7 mm |
| Weight | 0.95 kg |
| Range Of Product | Modicon X80 |
| Product Or Component Type | backplane |
Documents
- Innovative energy-efficient solutions to power containerships owned by Hamburg Sud - 998-20242107b_Hamburg_ER_low (pdf)
- Spec Sheet
- Discover Modicon X80 Modules Catalog - EN - DIA6ED2131203EN_v15 (pdf)
- Product compatibility according to the network and platform architecture - 0553Q-PUBLIC-EN_v7 (pdf)
- Discover catalog for EcoStruxure Automation Expert - EcoStruxure+Automation+Expert+Catalog+English (pdf)
