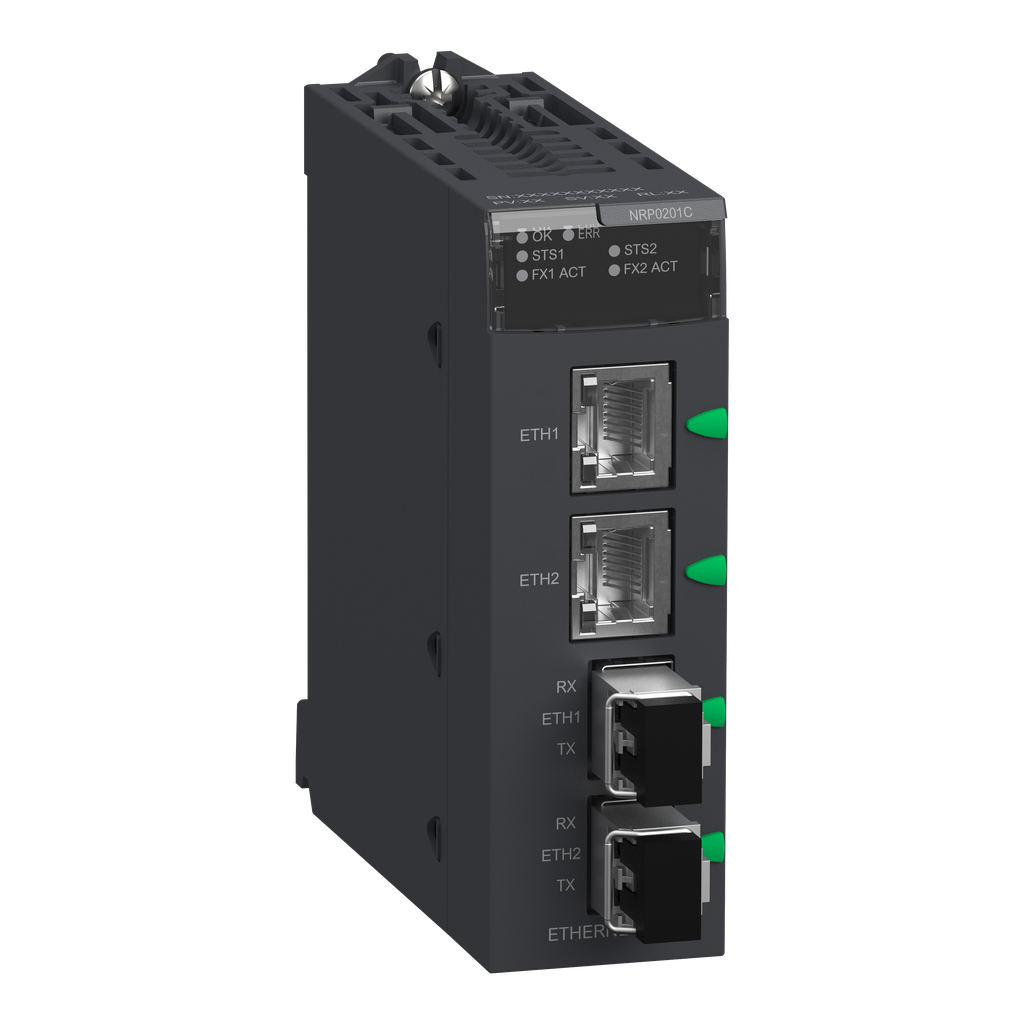

BMXNRP0201C
fiber converter, Modicon X80, SM/LC 2CH 100Mb, for severe environment
Specifications
| Ambient Air Temperature For Operation | -25-60 °C |
|---|---|
| Standards |
|
| Product Certifications |
|
| Environmental Characteristic |
|
| Dielectric Strength |
|
| Relative Humidity | 0-95 % |
| Directives |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Protective Treatment | conformal coating |
| Ip Degree Of Protection | IP20 |
| Operating Altitude | 0...13123.36 ft (0...4000 m) |
| Warranty | 18 months |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2402021EN |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2402021EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Current Consumption |
|
| Height | 100 mm |
| Rise/Fall Time | 2.5 ns |
| Marking | CE |
| Operating Distance | 0...15000 m |
| Net Weight | 203 g |
| Attenuation | -15--8 dB 9/125 µm) |
| Function Available | hot swap |
| Wavelength | 1310 nm |
| Local Signalling |
|
| Width | 32 mm |
| Depth | 86 mm |
| Rated Voltage | 24 V |
| Number Of Port |
|
| Receiver Sensitivity | - 31...- 8 dBm |
| Country of Origin | United States |
| Length | 1310 j |
| Width | 32 mm |
| Height | 100 mm |
| Weight | 203 g |
| Range Of Product | Modicon X80 |
| Product Or Component Type | fibre optic repeater |
| Optic Fiber Type | single mode |
