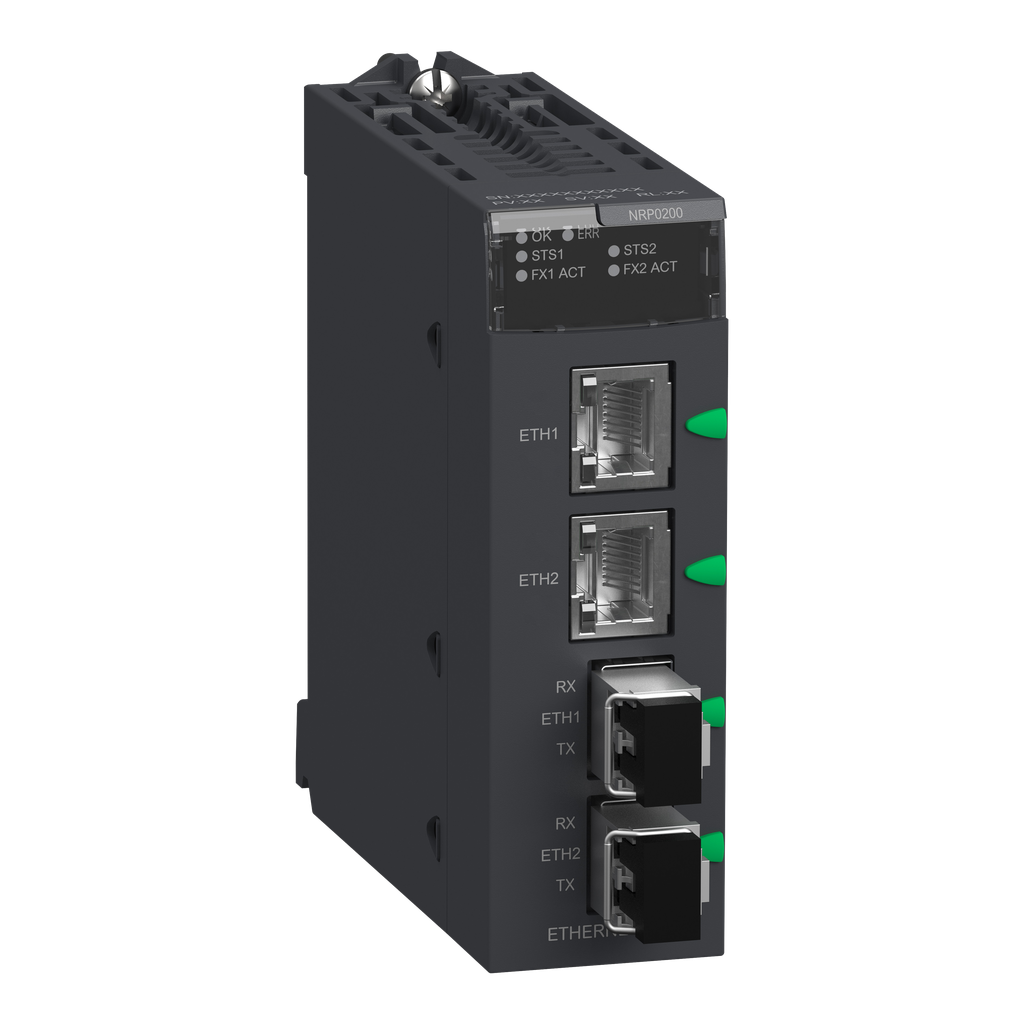

This fiber converter is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). It supports multimode and hot swap function. It is a fibre optic repeater with a current of 200mA and a rated voltage of 24V. It offers 1310nm wavelength. This product is robust, high quality and based on the latest innovative technology. The optic repeater has 2 RJ45 with 100BASE-TX port, 2 fibre optic with 100BASE-FX port Ethernet ports with 0m to 2000m operating distance. It is an IP20 rated product. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height) and weighs 203g. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with the entire range of Modicon controllers. The repeater is linked to CRA drop adapters by means of Ethernet Interlink cables. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Modicon X80 |
---|---|
Product Or Component Type | fibre optic repeater |
Optic Fiber Type | multi mode |
Warranty | 18 months |
Current Consumption |
|
Height | 100 mm |
Rise/Fall Time | 3 ns |
Marking | CE |
Operating Distance | 0...2000 m |
Net Weight | 203 g |
Attenuation |
|
Function Available | hot swap |
Wavelength | 1310 nm |
Local Signalling |
|
Width | 32 mm |
Depth | 86 mm |
Rated Voltage | 24 V |
Number Of Port |
|
Receiver Sensitivity | 31...- 14 dBm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP070204EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI0702004EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ambient Air Temperature For Operation | 0-60 °C |
Standards |
|
Product Certifications |
|
Dielectric Strength |
|
Relative Humidity | 0-95 % |
Directives |
|
Ambient Air Temperature For Storage | -40-70 °C |
Ip Degree Of Protection | IP20 |
Operating Altitude | 0...13123.36 ft (0...4000 m) |
