communication module, Modicon M580, global data service

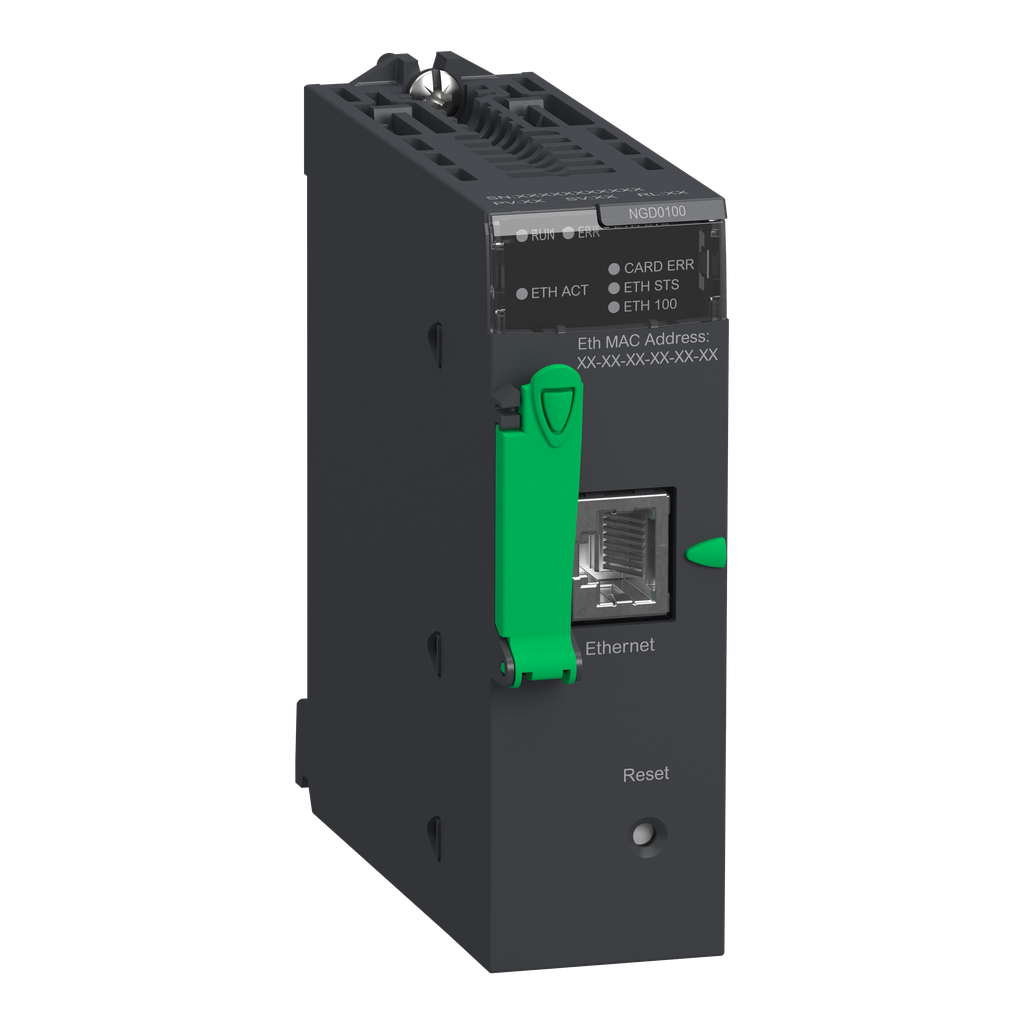

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This Ethernet TCP/IP network module is dedicated for global data service. It is a network module with a current consumption of 90mA at 24V DC. This product is robust, high quality and based on the latest innovative technology. It has reset push-button cold control. Communication services are global data, Modbus TCP messaging and security. It is an IP20 rated product. It weighs 0.2kg. It is suitable for medium to large process applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. It is only compatible with Ethernet racks. It is supplied with flash memory card (BMXRWSC016M). It occupies one slot on the rack. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Weight | 0.2 kg |
| Range Of Product | Modicon M580 |
| Product Or Component Type | Ethernet TCP/IP network module |
| Integrated Connection Type | Ethernet RJ45 10/100 Mbit/s 1 twisted pair |
| Protective Treatment | TC |
| Supply | internal power supply via rack |
| Current Consumption | 90 mA 24 V DC |
| Marking | CE |
| Net Weight | 0.2 kg |
| Control Type | RESET push-button cold restart |
| Communication Service |
|
| Local Signalling |
|
| Module Format | standard |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Memory Description | supplied Flash memory card (BMXRWSC016M) |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2402021EN |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2402021EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | 0-60 °C |
| Directives |
|
| Relative Humidity | 10-95 % without condensation |
| Ip Degree Of Protection | IP20 |
