BMXFCA302

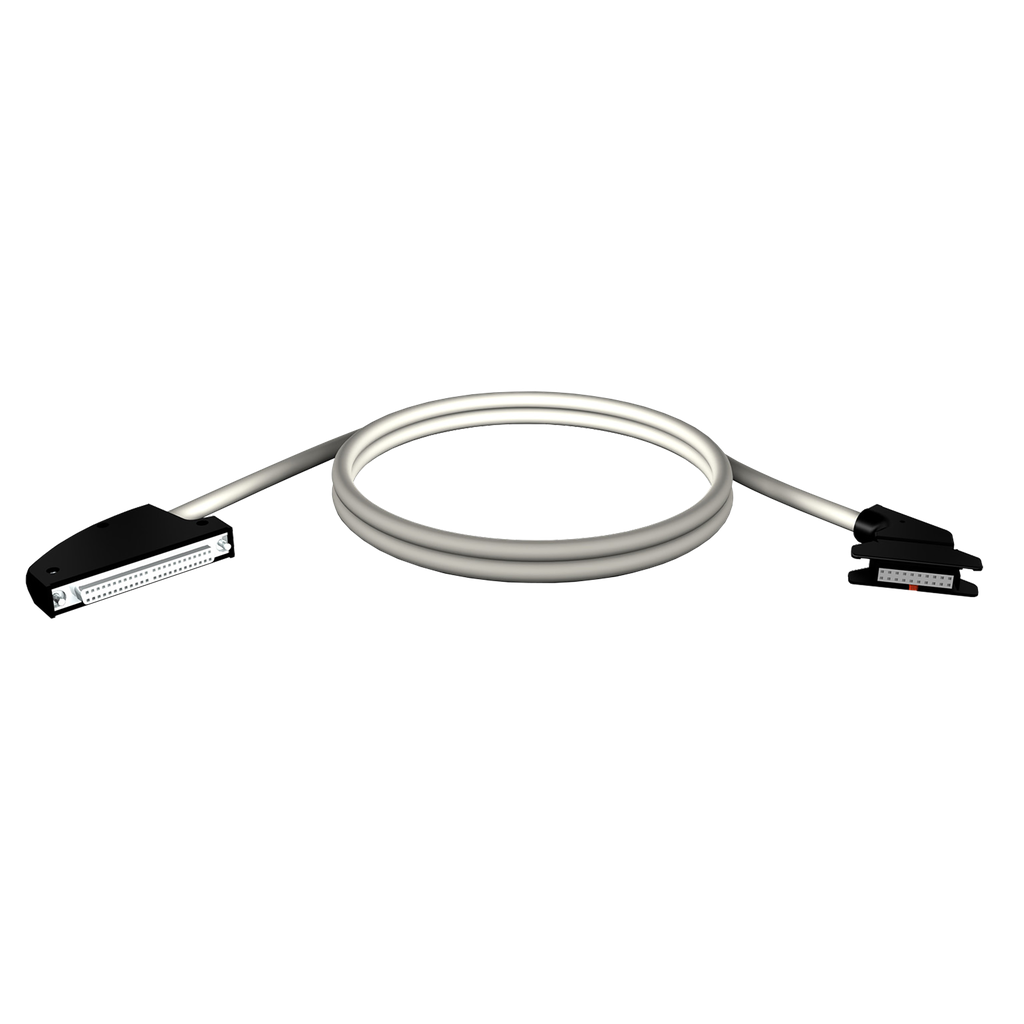

cord set, Modicon X80, 40-way terminal, SUB-D25 connector, 3m
This preassembled cordset is part of the Modicon X80 modules. It is compatible with low level analog input modules BMXART0x14. It enables the connection between I/O of modules with 40-way connectors to Modicon Telefast ABE7 rapid wiring connection. It is equipped with one 40-way connector at one end and one 25-way SUB-D connector at the other end, it is 3 meters long.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1312019EN |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | United States |
| Length | 3 m |
| Weight | 0.51 kg |
| Electrical Connection |
|
| Range Of Product | Modicon X80 |
| Cable Length | 3 m |
| Product Compatibility |
|
| Accessory / Separate Part Type | preformed cordset |
| Net Weight | 0.51 kg |
| Warranty | 18 months |
