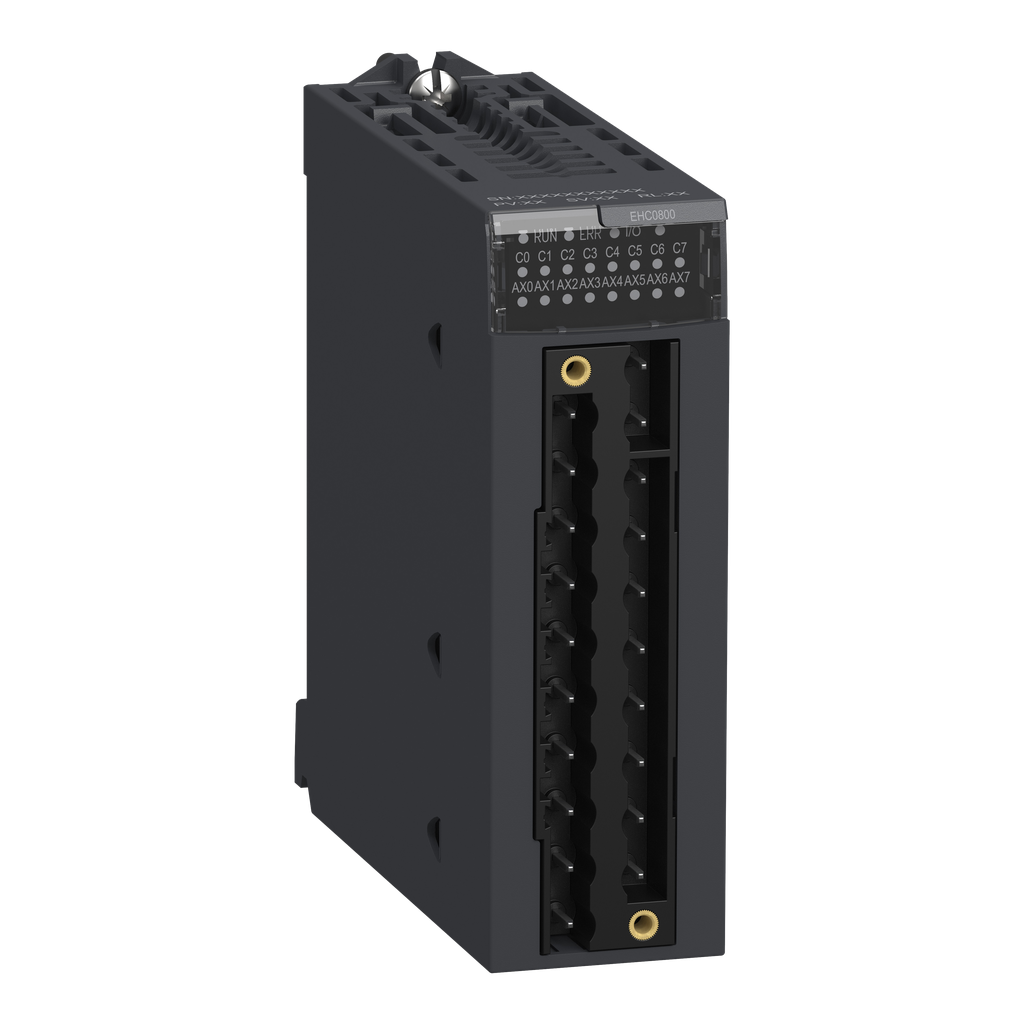

counter module, Modicon M340, high speed, 8 channels
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This high speed counter module has 8 channels, 2 single mode inputs and 3 special dual phase mode inputs. It is a counter module with an input voltage of 24V DC and a current consumption of 200mA at 3.3V DC bus, 80mA at 24V DC sensor. Counter functions are loop (modulo) counting, down counting, count events, 32bit counter counting etc. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.113kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 19.2V to 30V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10V to 30V totem pole. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon M340 automation platform |
|---|---|
| Product Or Component Type | counter module |
| Number Of Inputs |
|
| Input Compatibility |
|
| Number Of Channels | 8 |
| Input Voltage | 24 V DC type 3 |
| Maximum Counting Frequency | 10000 Hz |
| Warranty | 18 months |
| Electrical Connection | 1 connector 20 pins |
| Cycle Time | 5 ms |
| Counter Functions |
|
| Current Consumption |
|
| Current State 0 Guaranteed | <= 1.5 mA |
| Input Current | 2 mA at 11 V |
| Net Weight | 0.113 kg |
| Voltage State 0 Guaranteed | < 5 V |
| Input Type | high speed |
| Input Voltage Limits | 30 V |
| Current State 1 Guaranteed | >= 6 mA |
| Isolation Voltage | 1500 V 60 s |
| Module Format | standard |
| Voltage State 1 Guaranteed | 11...30 V |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070204EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | 0-60 °C |
| Directives |
|
| Relative Humidity | 10-95 % without condensation |
| Protective Treatment | TC |
| Ip Degree Of Protection | IP20 |
