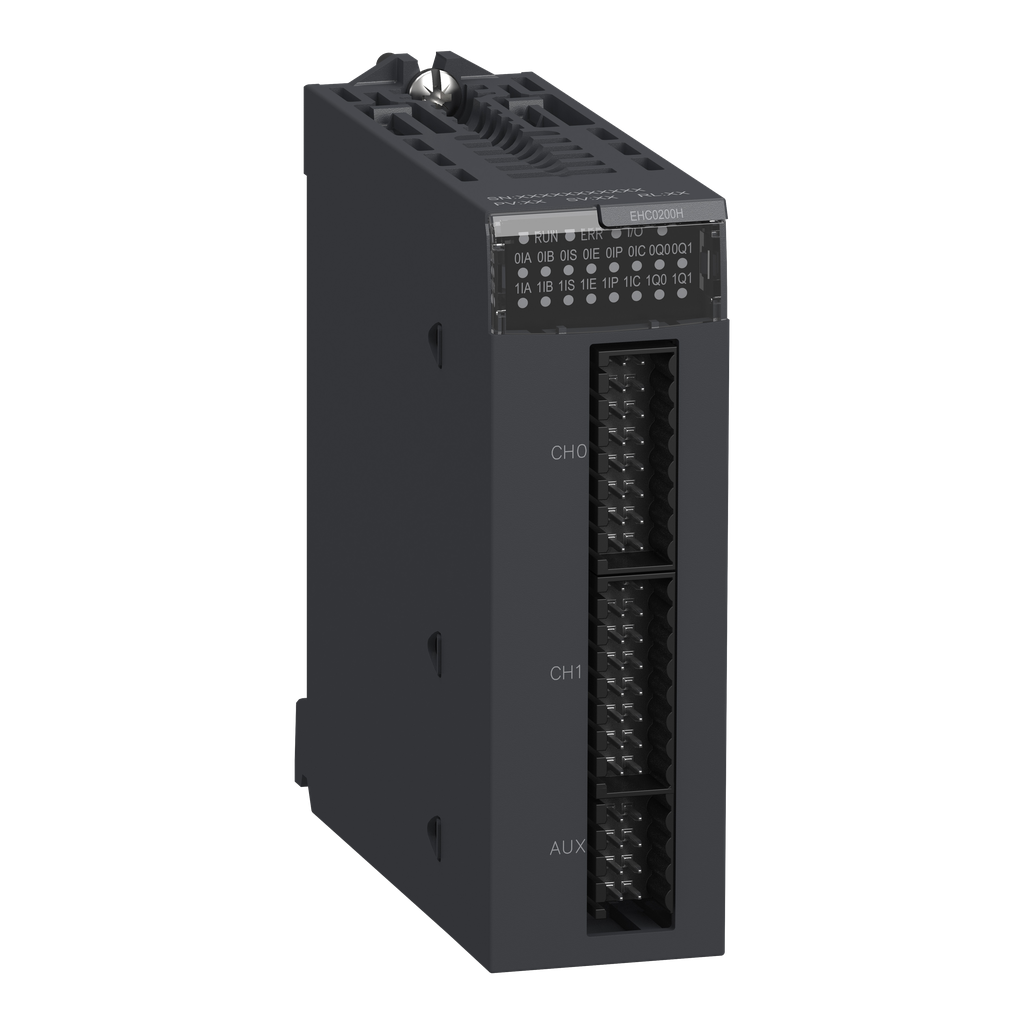

BMXEHC0200H - counter module, Modicon M340, high speed, 2 channels, hardened

BMXEHC0200H

counter module, Modicon M340, high speed, 2 channels, hardened

Add to Quote Catalogue

Specifications

Ambient Air Temperature For Operation	-25-70 °C
Standards	EN 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G
Product Certifications	CE UL CSA RCM EAC Merchant Navy
Environmental Characteristic	gas resistant class Gx ISA S71.04 gas resistant class 3C4 IEC 60721-3-3 dust resistant class 3S4 IEC 60721-3-3 sand resistant class 3S4 IEC 60721-3-3 salt resistant level 2 IEC 68252 mold growth resistant class 3B2 IEC 60721-3-3 fungal spore resistant class 3B2 IEC 60721-3-3 hazardous location class I division 2
Directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Relative Humidity	10-95 % without condensation
Protective Treatment	conformal coating
Ip Degree Of Protection	IP20
Warranty	18 months
Mercury Free	Yes
Environmental Disclosure	ENVPEP2311046EN
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI2311046EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Electrical Connection	1 connector 10 pins for wiring auxiliary input and sensor power supply 1 connector 16 pins for wiring the sensors of counter 0 1 connector 16 pins for wiring the sensors of counter 1
Maximum Load Current	1 A per module 0.5 A per output
Discrete Output Logic	positive or negative configurable
Cycle Time	1 ms
Counter Functions	ratio count frequency meter down counting 32-bit counter counting loop (modulo) counting measure time periods count events width modulation
Maximum Voltage Drop	<3 V at state 1
Overlap Time	0.2 ms
Current Consumption	200 mA 3.3 V DC bus 40 mA 24 V DC rack 80 mA 24 V DC sensor
Current State 0 Guaranteed	<= 1.5 mA
Input Current	2 mA at 11 V
Net Weight	0.112 kg
Voltage State 0 Guaranteed	< 5 V
Input Type	3 auxiliary input 3 high speed
Input Voltage Limits	19.2...30 V at 60 °C 26.4 V at 70 °C
Current State 1 Guaranteed	>= 6 mA
Isolation Voltage	1500 V 60 s
Output Short-Circuit Protection	1.5 A integrated
Output Voltage Limits	19.2...30 V
Maximum Output Current	2 A per module 0.5 A per output
Output Overload Protection	integrated
Module Format	standard
Maximum Leakage Current	0.1 mA at state 0
Voltage State 1 Guaranteed	11...30 V
Country of Origin	France
Weight	0.112 kg
Range Of Product	Modicon M340 automation platform
Product Or Component Type	counter module
Number Of Inputs	6-6
Input Compatibility	19.2-30 V 2-wire/3-wire proximity sensor incremental encoder with push-pull outputs, 10...30 V totem pole
Number Of Channels	2
Input Voltage	24 V DC type 3
Product Specific Application	for severe environments
Output Voltage	24 V DC
Maximum Counting Frequency	60000 Hz
Number Of Outputs	2
