Home > Schneider Electric > PLC/PAC and Controllers > PACs > Modicon X80 modules > BMXDRA1605 – discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC

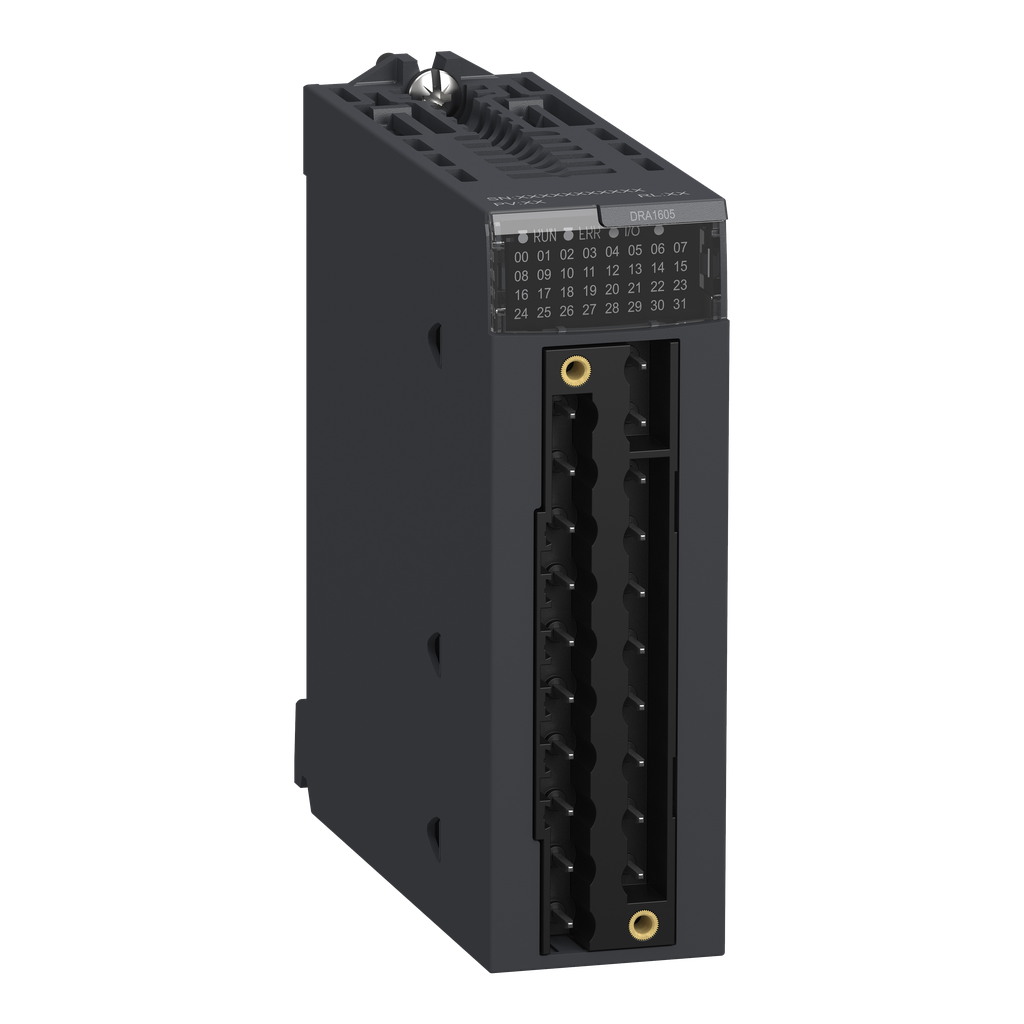

BMXDRA1605 – discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC
BMXDRA1605
discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC

This discrete output module is part of the Modicon X80 modules. It has 16 relay non protected outputs, 24V DC / 24V to 240V AC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Ambient Air Temperature For Operation 0-60 °C
Shock Resistance 30 gn
Dielectric Strength 2000 V AC 50/60 Hz 1 min
Vibration Resistance 3 gn
Ambient Air Temperature For Storage -40-85 °C
Relative Humidity 5-95 % 55-55 °C without condensation
Operating Altitude
  • 0...6561.68 ft (0...2000 m)
  • 2000...5000 m with derating factor
Ip Degree Of Protection IP20
Warranty 18 months
Mercury Free Yes
Environmental Disclosure ENVPEP2311046EN
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI2311046EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Mtbf Reliability 2100000 H
Minimum Switching Current 1 mA 5 V DC
Status Led
  • 1 LED (Green) RUN
  • 1 LED per channel (Green) channel diagnostic
  • 1 LED (Red) ERR
  • 1 LED (Red) I/O
Insulation Resistance > 10 MOhm 500 V DC
[Ith] Conventional Free Air Thermal Current 2 A
Power Dissipation In W 3 W
Net Weight 0.15 kg
Electrical Durability
  • AC-15 100000 cycles 240 VA 200 V 0.7 )
  • AC-15 100000 cycles 120 VA 200 V 0.35 )
  • AC-12 100000 cycles 200 VA 100 V
  • AC-12 100000 cycles 80 VA 48 V
  • AC-12 100000 cycles 50 VA 24 V
  • AC-15 100000 cycles 120 VA 100 V
  • AC-15 100000 cycles 120 VA 24 V
  • AC-15 100000 cycles 120 VA 48 V
  • DC-12 100000 cycles 24 W 24 V
  • DC-13 100000 cycles 10 W 24 V
  • DC-13 100000 cycles 10 W 48 V
  • AC-15 300000 cycles 72 VA 200 V 0.7 )
  • AC-15 300000 cycles 36 VA 200 V 0.35 )
  • AC-12 300000 cycles 200 VA 200 V
  • AC-12 300000 cycles 80 VA 100 V
  • AC-12 300000 cycles 50 VA 48 V
  • AC-15 300000 cycles 36 VA 100 V
  • AC-15 300000 cycles 72 VA 100 V
  • AC-15 300000 cycles 36 VA 48 V
  • AC-15 300000 cycles 72 VA 48 V
  • AC-15 300000 cycles 36 VA 24 V
  • AC-15 300000 cycles 72 VA 24 V
  • DC-13 300000 cycles 3 W 24 V
  • DC-13 300000 cycles 3 W 48 V
  • DC-13 7000 cycles 24 W 24 V
  • DC-13 7000 cycles 24 W 48 V
  • DC-12 50000 cycles 24 W 48 V
Typical Current Consumption
  • 100 mA 3.3 V DC
  • 95 mA 24 V DC
Output Overvoltage Protection
  • use discharge diode on each output DC
  • use RC circuit on each output AC
  • use ZNO surge limiter on each output AC
Output Short-Circuit Protection use 1 fast blow fuse per channel or group of channel
Output Overload Protection use 1 fast blow fuse per channel or group of channel
Response Time On Output
  • < 8 ms activation
  • < 10 ms deactivation
Country of Origin United States
Weight 0.15 kg
Discrete Output Type relay
Range Of Product Modicon X80
Discrete Output Number 16 EN/IEC 61131-2
Discrete Output Voltage
  • 24...48 V 19...60 V DC
  • 24...240 V 19…264 V AC
Product Or Component Type discrete output module
