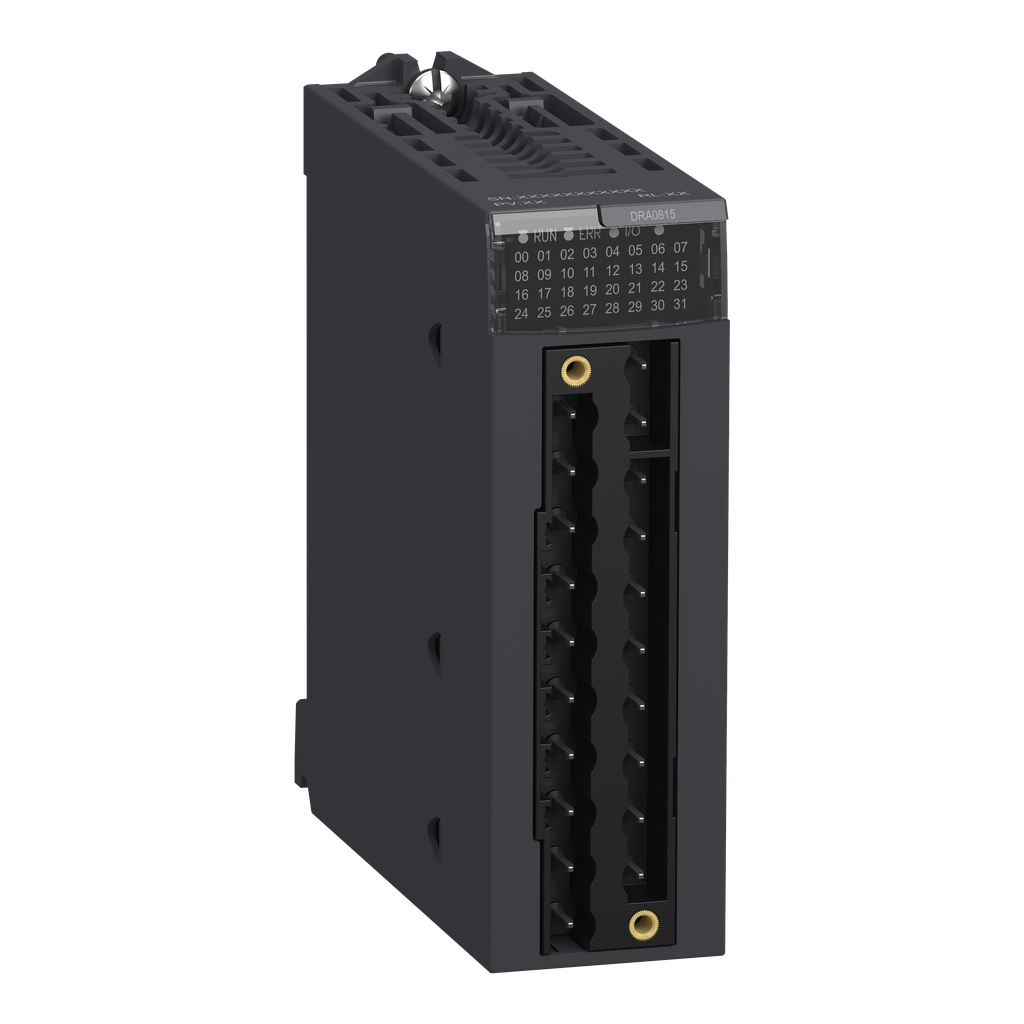

BMXDRA0815 - discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC, 24 to 125V DC

BMXDRA0815

discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC, 24 to 125V DC

Add to Quote Catalogue

Specifications

Country of Origin	United States
Weight	0.169 kg
Range Of Product	Modicon X80
Discrete Output Number	8 EN/IEC 61131-2
Discrete Output Logic	positive
Discrete Output Voltage	24...240 V 19...264 V AC 24...125 V 5...150 V DC
Product Or Component Type	relay discrete output module
Mtbf Reliability	3200000 H
Network Frequency	50/60 Hz
Voltage Range	5...150 V 19...264 V
Minimum Switching Current	1 mA 5 V DC
Status Led	1 LED (Green) RUN 1 LED per channel (Green) channel diagnostic 1 LED (Red) ERR 1 LED (Red) I/O
Insulation Resistance	> 10 MOhm 500 V DC
Network Frequency Limits	47-63 Hz
[Ith] Conventional Free Air Thermal Current	3 A
Protection Type	external short-circuit protection external overload protection external overvoltage protection, inductive AC external overvoltage protection, inductive DC
Power Dissipation In W	3.6 W
Net Weight	0.169 kg
Electrical Connection	20 ways terminal block
Electrical Durability	AC-12 200000 cycles 48 VA 24 V 0-60 °C AC-12 300000 cycles 48 VA 48 V 0-60 °C AC-12 150000 cycles 96 VA 48 V 0-60 °C AC-12 300000 cycles 110 VA 100...120 V 0-60 °C AC-12 150000 cycles 220 VA 100...120 V 0-60 °C AC-12 300000 cycles 220 VA 200...250 V 0-60 °C AC-12 150000 cycles 500 VA 200...250 V 0-60 °C AC-15 700000 cycles 10 VA 24 V 0-60 °C 0.4 ) AC-15 500000 cycles 24 VA 24 V 0-60 °C 0.4 ) AC-15 200000 cycles 48 VA 24 V 0-60 °C 0.4 ) AC-15 700000 cycles 10 VA 48 V 0-60 °C 0.4 ) AC-15 500000 cycles 24 VA 48 V 0-60 °C 0.4 ) AC-15 300000 cycles 48 VA 48 V 0-60 °C 0.4 ) AC-15 100000 cycles 96 VA 48 V 0-60 °C 0.4 ) AC-15 1000000 cycles 10 VA 100...120 V 0-60 °C 0.4 ) AC-15 300000 cycles 50 VA 100...120 V 0-60 °C 0.4 ) AC-15 200000 cycles 110 VA 100...120 V 0-60 °C 0.4 ) AC-15 70000 cycles 220 VA 100...120 V 0-60 °C 0.4 ) AC-15 1000000 cycles 10 VA 200...250 V 0-60 °C 0.4 ) AC-15 500000 cycles 50 VA 200...250 V 0-60 °C 0.4 ) AC-15 200000 cycles 110 VA 200...250 V 0-60 °C 0.4 ) AC-15 150000 cycles 220 VA 200...250 V 0-60 °C 0.4 ) DC-12 200000 cycles 24 W 24 V 0-60 °C DC-12 150000 cycles 48 W 24 V 0-60 °C DC-12 150000 cycles 40 W 48...60 V 0-60 °C DC-12 100000 cycles 45 W 100...125 V 0-60 °C DC-13 100000 cycles 10 W 24 V 0-60 °C DC-13 60000 cycles 24 W 24 V 0-60 °C DC-13 40000 cycles 48 W 24 V 0-60 °C DC-13 40000 cycles 40 W 48...60 V 0-60 °C DC-13 100000 cycles 15 W 100...125 V 0-60 °C
Typical Current Consumption	40 mA 3.3 V DC 101 mA 24 V DC
Output Overvoltage Protection	use discharge diode on each output DC use RC circuit on each output AC use ZNO surge limiter on each output AC
Output Short-Circuit Protection	use 1 fast blow fuse per channel or group of channel
Output Overload Protection	use 1 fast blow fuse per channel or group of channel
Response Time On Output	<= 10 ms activation <= 13 ms deactivation
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2311046EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI2311046EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation	0-60 °C
Shock Resistance	30 gn
Dielectric Strength	1780 V AC 50/60 Hz 1 min
Vibration Resistance	3 gn
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	0-95 % 60-60 °C without condensation
Operating Altitude	0...6561.68 ft (0...2000 m) 2000...5000 m with derating factor
Ip Degree Of Protection	IP20
