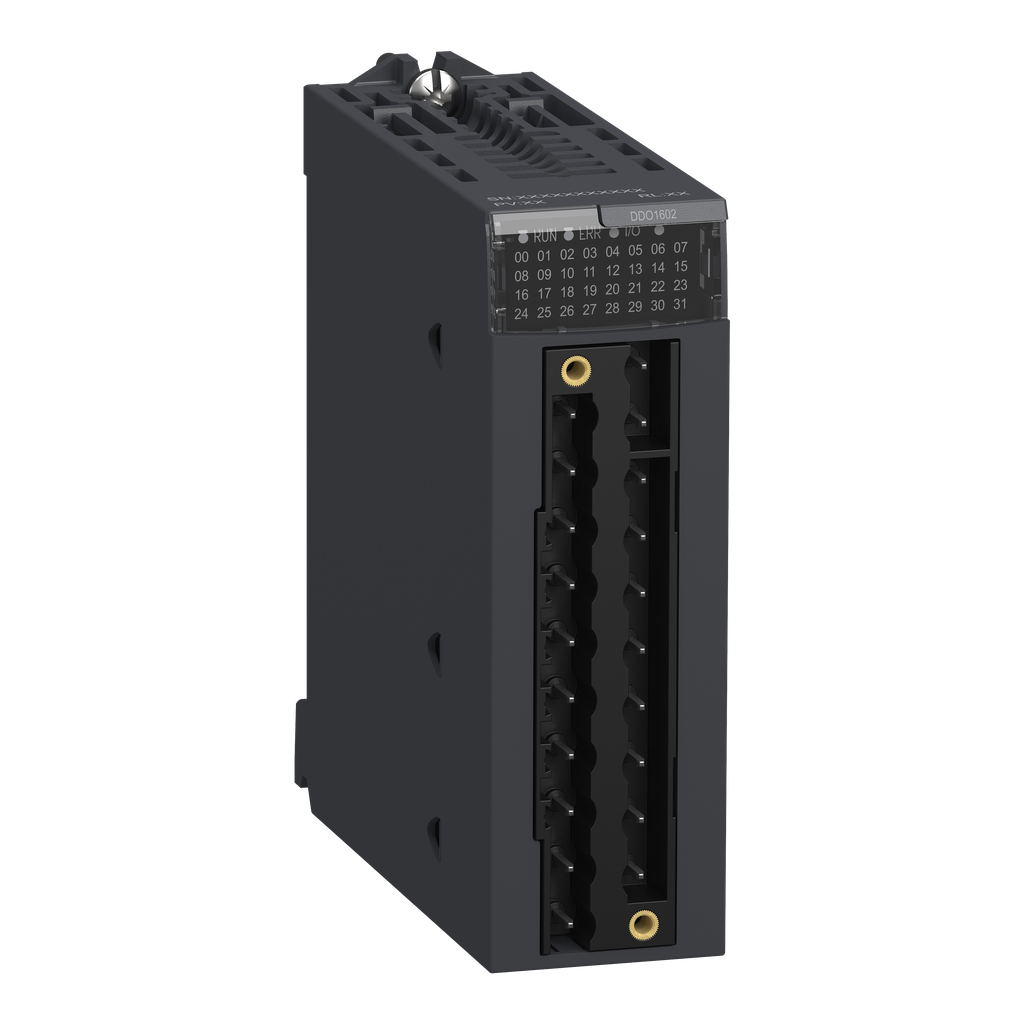

BMXDDO1602 - discrete output module, Modicon X80, 16 transistor outputs, 24V DC positive

BMXDDO1602

discrete output module, Modicon X80, 16 transistor outputs, 24V DC positive

This discrete output module is part of the Modicon X80 modules. It has 16 transistor protected outputs, 24V DC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Ambient Air Temperature For Operation	0-60 °C
Shock Resistance	30 gn
Dielectric Strength	1500 V AC 50/60 Hz 1 minute, output/ground 1500 V AC 50/60 Hz 1 minute, output/internal logic
Vibration Resistance	3 gn
Directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	5-95 % 55-55 °C without condensation
Operating Altitude	0...6561.68 ft (0...2000 m) 2000...5000 m with derating factor
Ip Degree Of Protection	IP20
Warranty	18 months
Mercury Free	Yes
Environmental Disclosure	ENVPEP2311046EN
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI2311046EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Mtbf Reliability	410000 H
Maximum Current Per Module	10 A
Switching Frequency	0.5/LI² Hz
Status Led	1 LED (Green) module operating (RUN) 1 LED per channel (Green) channel diagnostic 1 LED (Red) module error (ERR) 1 LED (Red) module I/O
Voltage Detection Threshold	< 14 V DC preactuator fault > 18 V DC preactuator at state 0
Current Per Channel	0.625 A
Maximum Voltage Drop	<1.2 V at state 1
Insulation Resistance	> 10 MOhm 500 V DC
Protection Type	external fuse reverse polarity protection short-circuit protection overload protection overvoltage protection
Power Dissipation In W	4 W
Net Weight	0.12 kg
Maximum Leakage Current	0.5 mA at state 0
Load Impedance Ohmic	> 48 Ohm
Paralleling Of Outputs	yes : 2 maximum
Typical Current Consumption	79 mA 3.3 V DC
Output Overvoltage Protection	with transil diode
Output Short-Circuit Protection	with 2 A external fuse
Output Overload Protection	with electronic circuit breaker 1.5 In < Id < 2 In with current limiter
Maximum Tungsten Load	6 W
Reverse Polarity Protection	reverse mounted diode
Response Time On Output	1.2 ms
Country of Origin	United States
Weight	0.12 kg
Discrete Output Type	solid state
Range Of Product	Modicon X80
Discrete Output Number	16 EN/IEC 61131-2
Discrete Output Logic	positive
Discrete Output Voltage	24 V 19...30 V DC
Product Or Component Type	discrete output module
Discrete Output Current	0.5 A

discrete output module, Modicon X80, 16 transistor outputs, 24V DC positive
