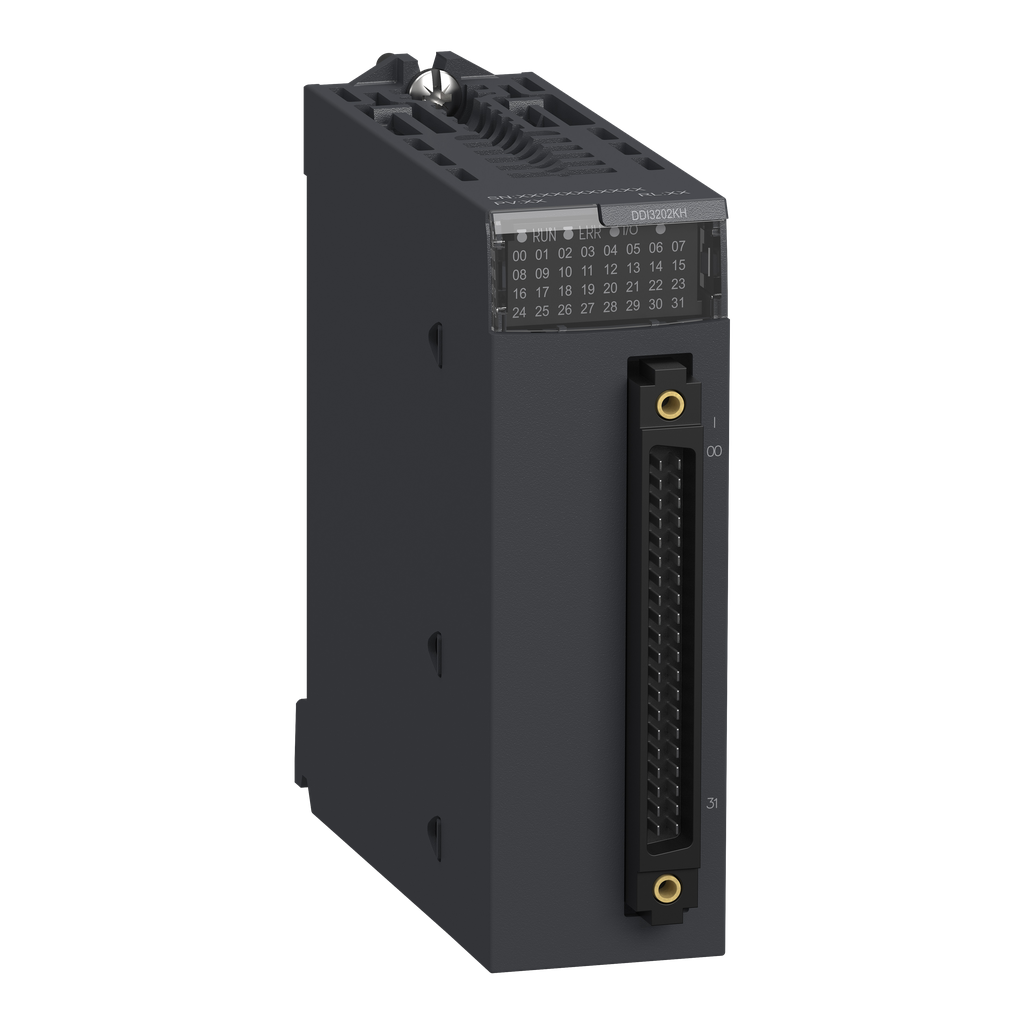

BMXDDI3202KH - Discrete input module, Modicon X80, 32 inputs, 24V DC positive, for severe environments

BMXDDI3202KH

Discrete input module, Modicon X80, 32 inputs, 24V DC positive, for severe environments

Add to Quote Catalogue

Specifications

Ambient Air Temperature For Operation	-25-70 °C
Shock Resistance	30 gn
Environmental Characteristic	gas resistant class Gx gas resistant class 3C4 dust resistant class 3S4 sand resistant class 3S4 salt resistant level 2 mold growth resistant class 3B2 fungal spore resistant class 3B2
Dielectric Strength	1500 V AC 50/60 Hz 1 minute, primary/secondary 500 V DC 1 minute, between group of channels
Vibration Resistance	3 gn
Directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	5-95 % -25-70 °C without condensation
Operating Altitude	0...6561.68 ft (0...2000 m) 2000...5000 m with derating factor
Protective Treatment	conformal coating
Ip Degree Of Protection	IP20
Warranty	18 months
Mercury Free	Yes
Environmental Disclosure	ENVPEP2311046EN
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI2311046EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Mtbf Reliability	905000 H
Voltage Range	19...30 V
Status Led	1 LED (Green) module operating (RUN) 1 LED per channel (Green) channel diagnostic 1 LED (Red) module error (ERR) 1 LED (Red) module I/O
Voltage Detection Threshold	< 14 V DC sensor fault > 18 V DC sensor OK
Insulation Resistance	> 10 MOhm 500 V DC
Current State 1 Guaranteed	>= 2 mA
Protection Type	1 external fuse per group of channel 0.5 A fast blow reverse polarity protection
Power Dissipation In W	3.9 W
Net Weight	0.112 kg
Paralleling Of Inputs	no
Dc Typical Filtering Time	4 ms
Input Compatibility	with 2-wire/3-wire proximity sensors IEC 60947-5-2 with 2-wire/3-wire proximity sensors IEC 61131-2 Type 1
Typical Current Consumption	121 mA 3.3 V DC
Current State 0 Guaranteed	<= 0.5 mA
Input Impedance	9600 Ohm
Dc Maximum Filtering Time	7 ms
Country of Origin	Indonesia
Weight	0.112 kg
Range Of Product	Modicon X80
Discrete Input Voltage	24 V DC positive
Product Or Component Type	discrete input module
Input Type	current sink (logic positive)
Discrete Input Type	isolated
Discrete Input Number	32
Product Specific Application	for severe environments
Discrete Input Current	2.5 mA
