BMXDDI3202K
discrete input module, Modicon X80, 32 inputs, 24V DC positive

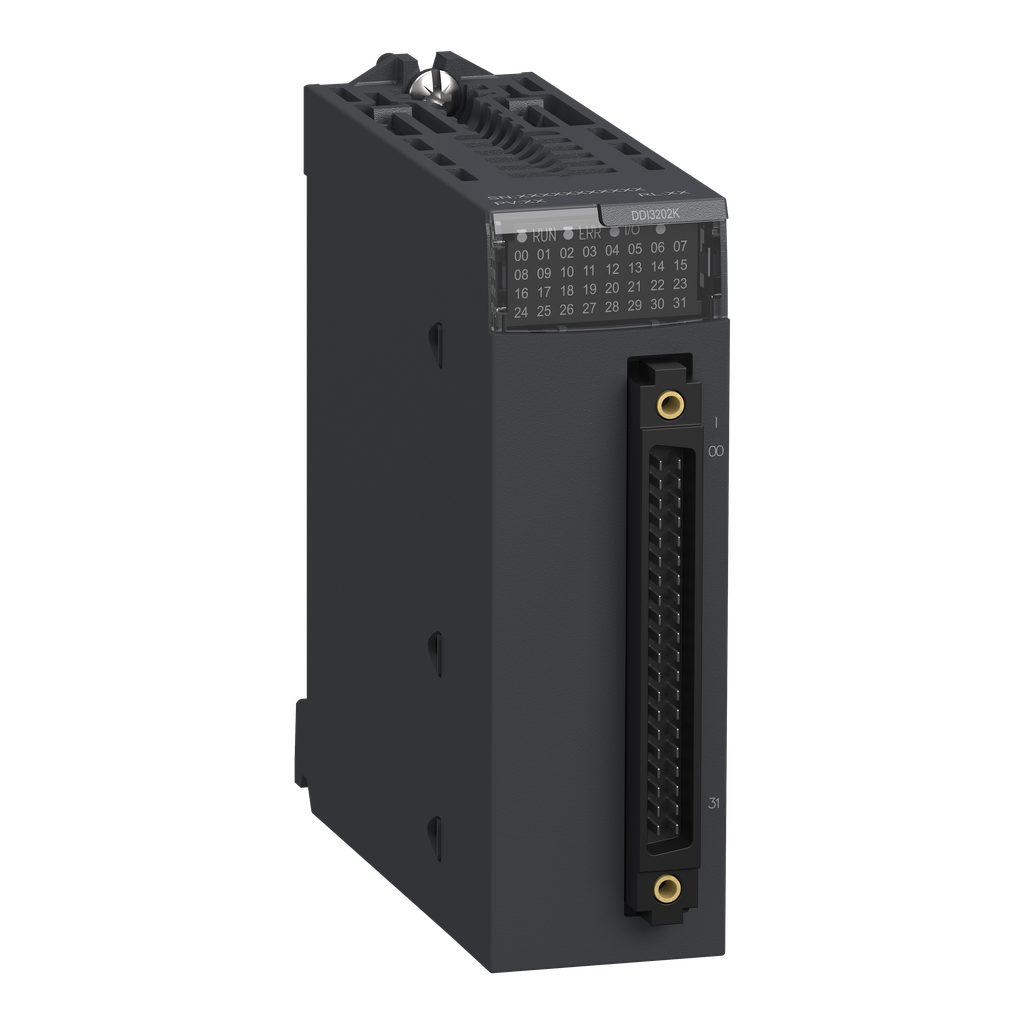

This discrete input module is part of the Modicon X80 modules. It has 32 isolated inputs and it is supplied with 24V DC. this input module with 40-way connectors is designed, for use in conjunction with the TeSys Quickfit mounting system. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | 0-60 °C |
|---|---|
| Shock Resistance | 30 gn |
| Dielectric Strength |
|
| Vibration Resistance | 3 gn |
| Directives |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 5-95 % 55-55 °C without condensation |
| Operating Altitude |
|
| Ip Degree Of Protection | IP20 |
| Warranty | 18 months |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2311046EN |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2311046EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mtbf Reliability | 905000 H |
| Voltage Range | 19...30 V |
| Status Led |
|
| Voltage Detection Threshold |
|
| Insulation Resistance | > 10 MOhm 500 V DC |
| Current State 1 Guaranteed | >= 2 mA |
| Protection Type |
|
| Power Dissipation In W | 3.9 W |
| Net Weight | 0.112 kg |
| Paralleling Of Inputs | no |
| Dc Typical Filtering Time | 4 ms |
| Input Compatibility |
|
| Typical Current Consumption | 121 mA 3.3 V DC |
| Current State 0 Guaranteed | <= 0.5 mA |
| Input Impedance | 9600 Ohm |
| Dc Maximum Filtering Time | 7 ms |
| Country of Origin | France |
| Weight | 0.112 kg |
| Range Of Product | Modicon X80 |
| Discrete Input Voltage | 24 V DC positive |
| Product Or Component Type | discrete input module |
| Input Type | current sink (logic positive) |
| Discrete Input Type | isolated |
| Discrete Input Number | 32 |
| Discrete Input Current | 2.5 mA |
