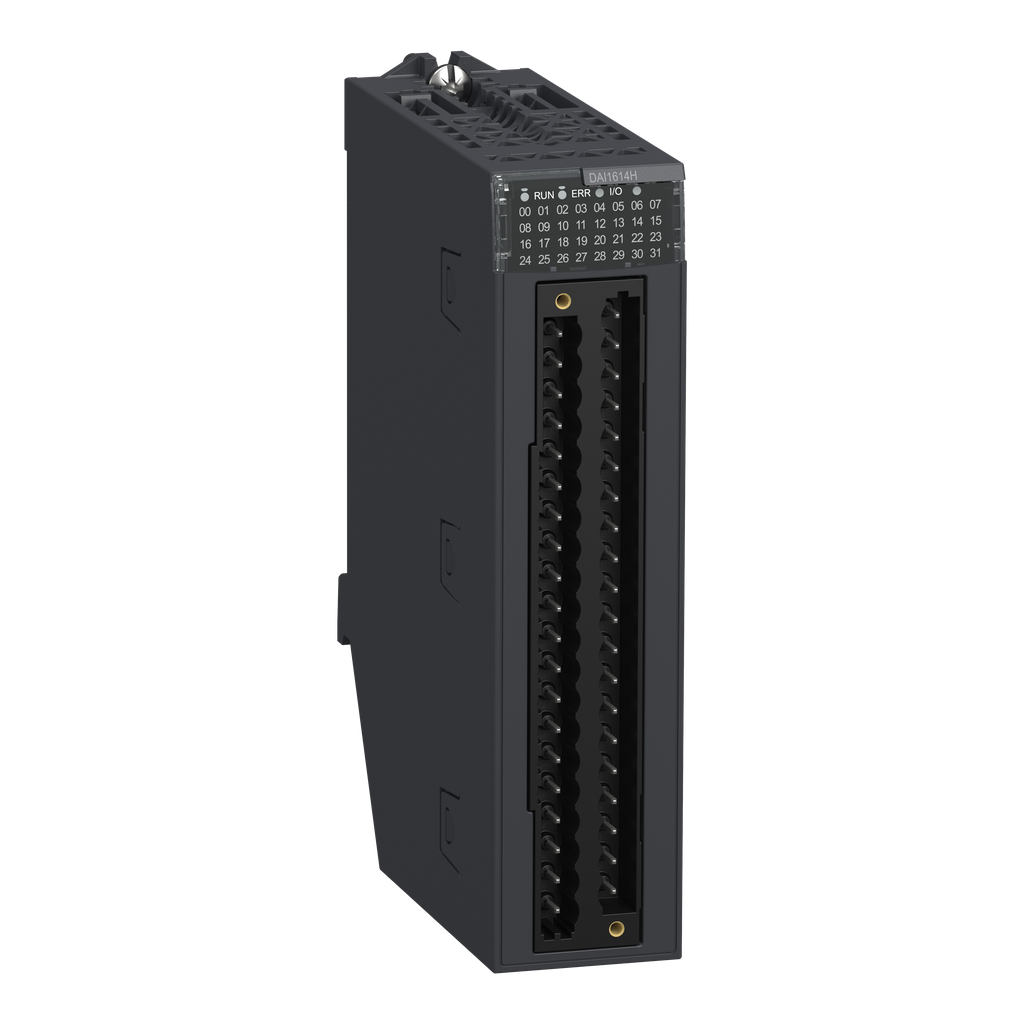

BMXDAI1614H - Discrete input module, Modicon X80, 16 isolated inputs, 100 to 120V AC, for severe environments

BMXDAI1614H

Discrete input module, Modicon X80, 16 isolated inputs, 100 to 120V AC, for severe environments

Add to Quote Catalogue

Specifications

Mtbf Reliability	3700000 H
Network Frequency	50/60 Hz
Voltage Range	85...132 V
Ac Activation Filtering Time	10 ms
Status Led	1 LED (Green) module operating (RUN) 1 LED per channel (Green) channel diagnostic 1 LED (Red) module error (ERR) 1 LED (Red) module I/O
Voltage Detection Threshold	< 40 V AC sensor fault > 85 V AC sensor OK
Insulation Resistance	> 10 MOhm 500 V DC
Network Frequency Limits	47-63 Hz
Current State 1 Guaranteed	>= 2 mA
Protection Type	1 external fuse per group of channel 0.25 A fast blow
Power Dissipation In W	5 W
Net Weight	0.157 kg
Input Compatibility	2-wire proximity sensor IEC 60947-5-2 2-wire proximity sensor IEC 61131-2 Type 1
Ac Deactivation Filtering Time	20 ms
Typical Current Consumption	76 mA 3.3 V DC
Current State 0 Guaranteed	<= 1 mA
Input Impedance	14000 Ohm
Country of Origin	France
Weight	0.157 kg
Range Of Product	Modicon X80
Discrete Input Voltage	100...120 V AC
Product Or Component Type	discrete input module
Input Type	capacitive
Discrete Input Type	isolated
Discrete Input Number	16
Product Specific Application	for severe environments
Discrete Input Current	2 mA
Ambient Air Temperature For Operation	-25-70 °C
Shock Resistance	30 gn
Environmental Characteristic	gas resistant class Gx gas resistant class 3C4 dust resistant class 3S4 sand resistant class 3S4 salt resistant level 2 mold growth resistant class 3B2 fungal spore resistant class 3B2
Dielectric Strength	1780 V AC 50/60 Hz 1 min
Vibration Resistance	3 gn
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	0-95 % -25-70 °C without condensation
Operating Altitude	0...6561.68 ft (0...2000 m) 2000...5000 m with derating factor
Protective Treatment	conformal coating
Ip Degree Of Protection	IP20
Mercury Free	Yes
Environmental Disclosure	ENVPEP2402023EN
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI2402023EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
