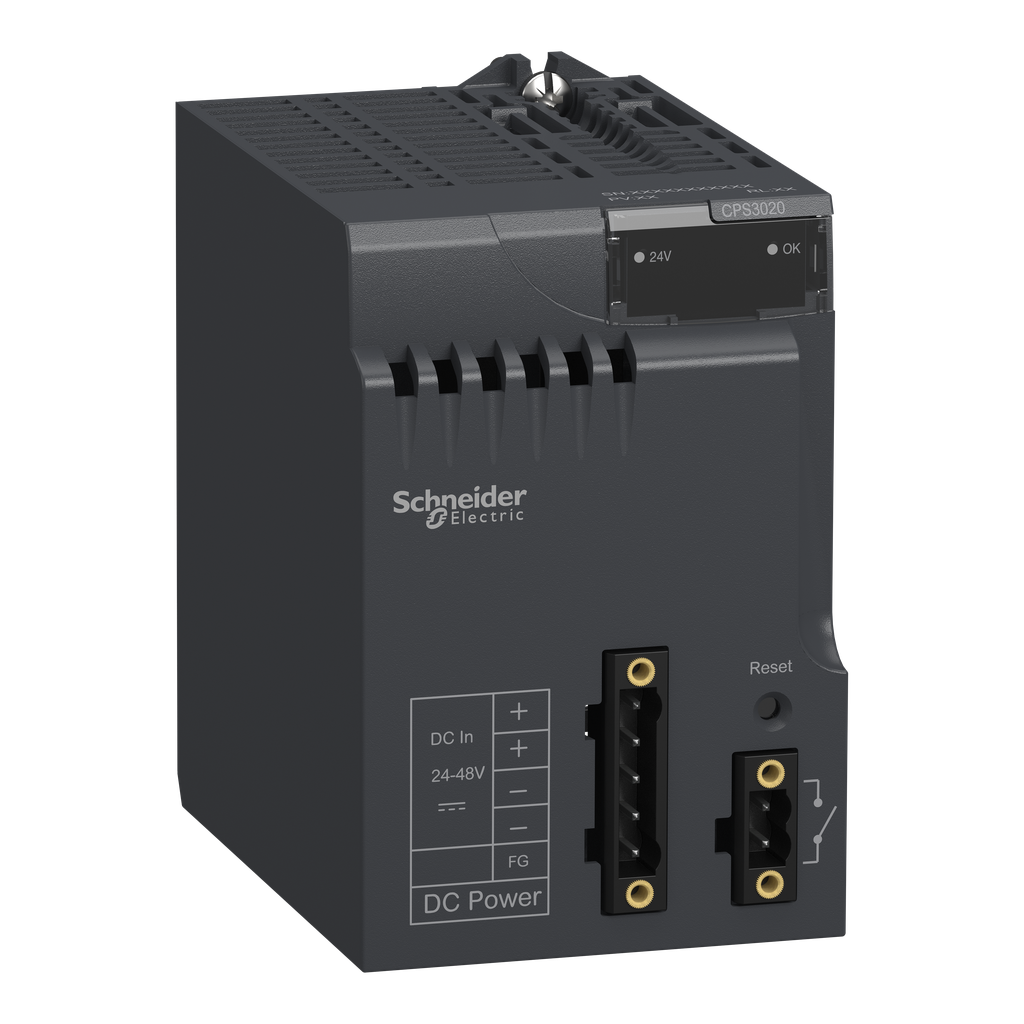

BMXCPS3020 - power supply module, Modicon X80, 24 to 48V DC, 31.2W

BMXCPS3020

power supply module, Modicon X80, 24 to 48V DC, 31.2W

This power module is part of the Modicon X80 modules. This module provides the power supply for each Modicon X80 I/O rack and the modules installed. It is supplied with 24V to 48V DC isolated. It has a case which provides IP 20 protection of the electronics.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Ambient Air Temperature For Operation	0-60 °C
Immunity To Microbreaks	1 ms
Shock Resistance	30 gn
Vibration Resistance	3 gn
Directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	5-95 % 55-55 °C without condensation
Operating Altitude	0...6561.68 ft (0...2000 m) 2000...5000 m with derating factor
Protective Treatment	TC
Ip Degree Of Protection	IP20
Dielectric Strength	1500 V primary/ground 1500 V primary/secondary
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2402022EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI2402022EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Mtbf Reliability	4600000 H
Maximum Cable Distance Between Devices	10 m power supply cable copper 1.5 mm² 15 m power supply cable copper 2.5 mm²
Primary Voltage Limit	18...62.4 V
It On Activation	0.2 A.s 24 V 0.3 A.s 48 V
Status Led	1 LED (Green) rack voltage OK
I²T On Activation	1 A².s 24 V 3 A².s 48 V
Input Current	0.83 A 48 V 1.65 A 24 V
Current At Secondary Voltage	1.3 A 24 V DC I/O module power supply and processor 4.5 A 3.3 V DC I/O module logic power supply
Insulation Resistance	>= 10 MOhm primary/ground >= 10 MOhm primary/secondary
Net Weight	0.34 kg
Control Type	RESET push-button cold restart
Maximum Power Dissipation In W	8.5 W
Electrical Connection	1 connector 2 alarm relay 1 connector 5 line supply, protective earth
Inrush Current	30 A 24 V 60 A 48 V
Protection Type	internal fuse not accessible primary circuit overload protection secondary circuit, 24 V sensor power supply overvoltage protection secondary circuit, 24 V sensor power supply short-circuit protection secondary circuit, 24 V sensor power supply
Country of Origin	France
Weight	0.34 kg
Primary Voltage	24...48 V isolated
Range Of Product	Modicon X80
Product Or Component Type	power supply module
Secondary Power	15 W 3.3 V DC I/O module logic power supply 31.2 W 24 V DC I/O module power supply and processor
Supply Circuit Type	DC
Product Compatibility	not compatible with BMEXBP..02
