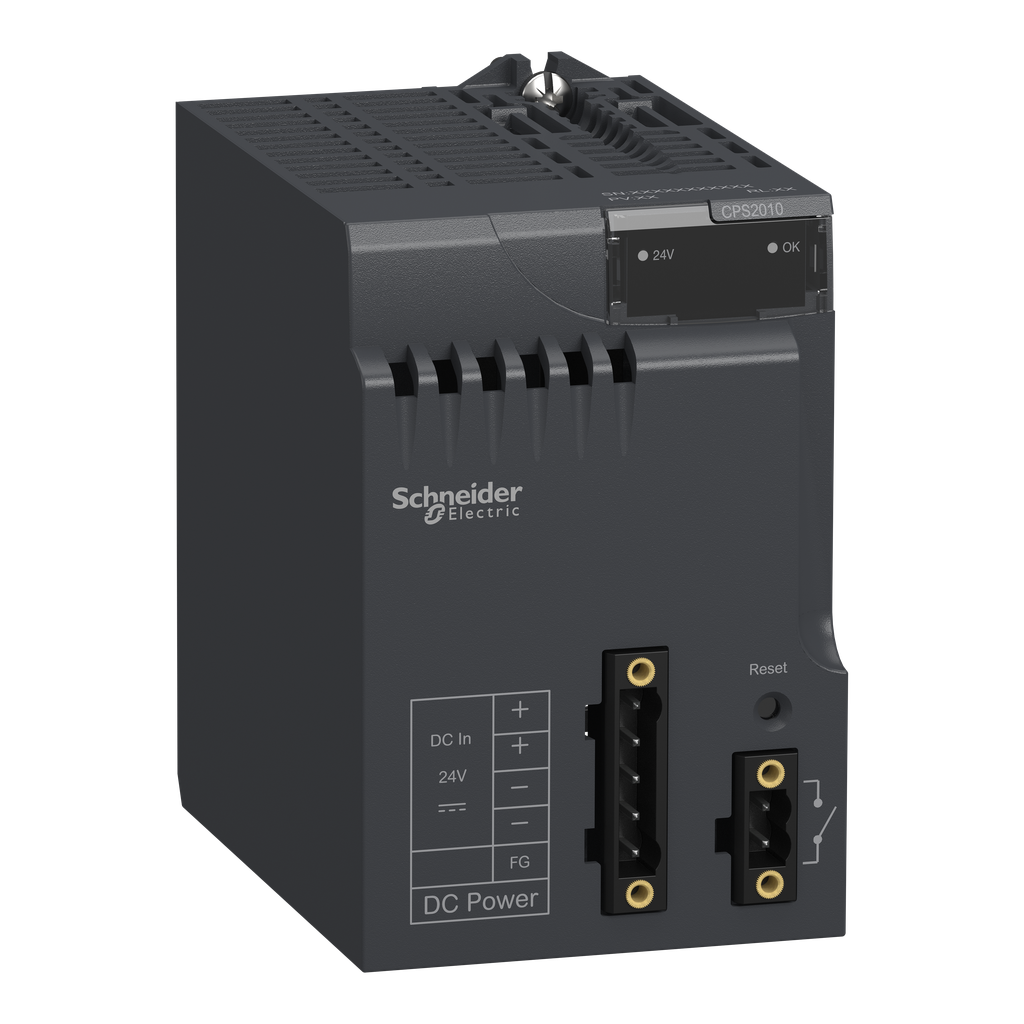

power supply module, Modicon X80, 24V DC, 16.8W
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has an isolated voltage of 24V DC. It is a power supply module with a secondary power of 16.8W at 24V DC, a current at secondary voltage of 2.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.29kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Primary Voltage | 24 V isolated |
|---|---|
| Range Of Product | Modicon X80 |
| Product Or Component Type | power supply module |
| Secondary Power |
|
| Supply Circuit Type | DC |
| Product Compatibility | not compatible with BMEXBP..02 |
| Warranty | 18 months |
| Mtbf Reliability | 4886000 H |
| Maximum Cable Distance Between Devices |
|
| Primary Voltage Limit | 18...31.2 V |
| It On Activation | 0.15 A.s 24 V |
| Status Led | 1 LED (Green) rack voltage OK |
| I²T On Activation | 0.6 A².s 24 V |
| Input Current | 1 A 24 V |
| Current At Secondary Voltage |
|
| Insulation Resistance |
|
| Net Weight | 0.29 kg |
| Control Type | RESET push-button cold restart |
| Maximum Power Dissipation In W | 8.5 W |
| Electrical Connection |
|
| Inrush Current | 30 A 24 V |
| Protection Type |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070204EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | 0-60 °C |
| Immunity To Microbreaks | 1 ms |
| Shock Resistance | 30 gn |
| Vibration Resistance | 3 gn |
| Directives |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 5-95 % 55-55 °C without condensation |
| Operating Altitude |
|
| Protective Treatment | TC |
| Ip Degree Of Protection | IP20 |
| Dielectric Strength |
|
